Educational Advantages

• includes Student activities
• Demonstration of major engine systems to groups of students without the access limitations of a complete vehicle
• Engine systems respond to inserted fauts with real world symptoms, OEM DTC’s and check engine light operation
• Functional DLC using SAE J1939 protocols

Application

• Caterpillar C4.4 TIER 4F

Standard Equipment and Features

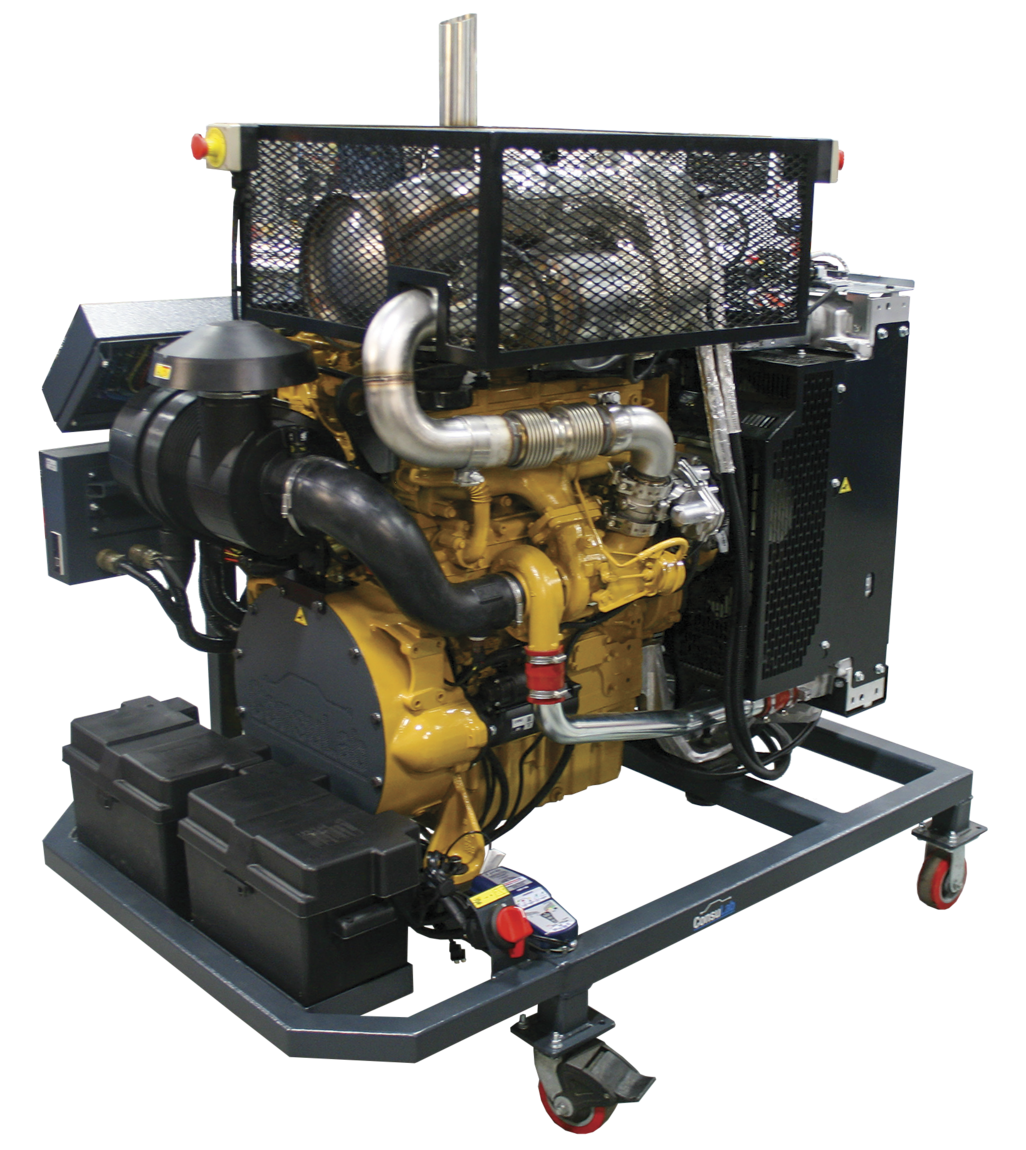

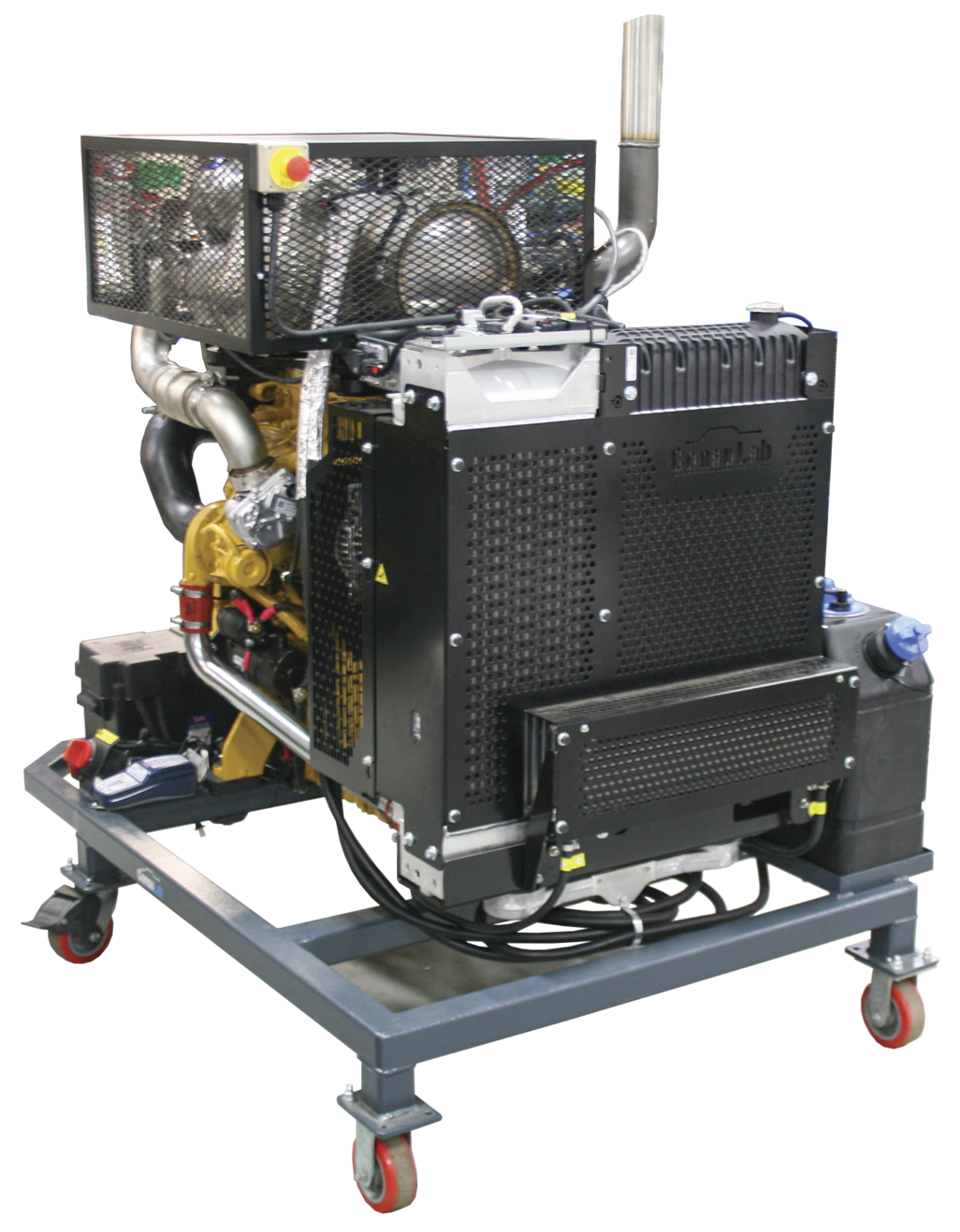

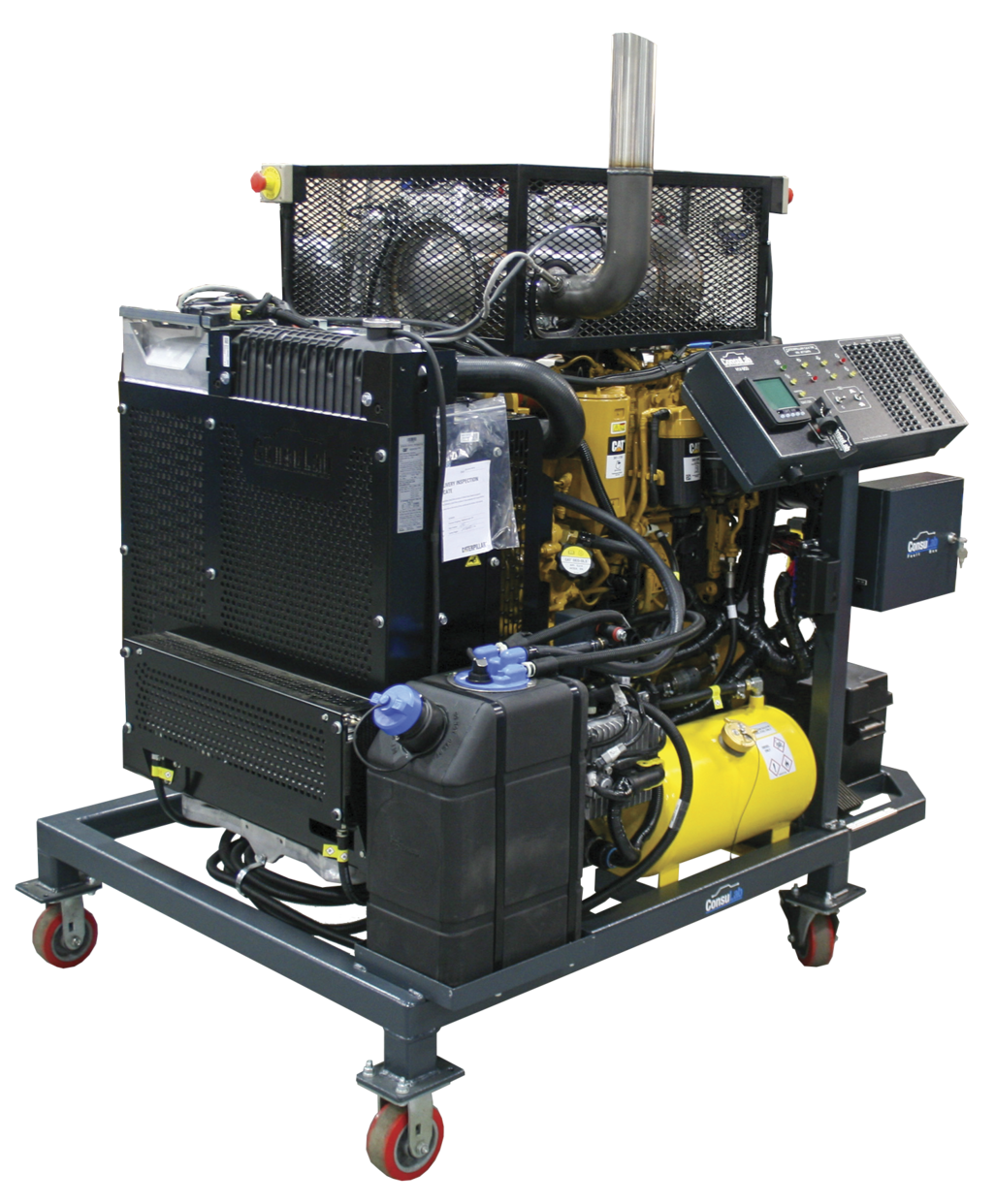

• New OEM I-4, 4-stroke cycle diesel engine, CEM, DPF and DOC
• Meets TIER 4F emissions requirements
• OEM CAT ECM and wiring
• Exhaust system
• Air filter
• Air-to-air radiator and cooling fan complete with protective guards
• Fuel pedal
• Tubular steel mounting frame
• Heavy duty casters with 2 locking swivels
• Fuel tank
• 12V batteries (2) w/plastic cases
• Battery cut-off switch
• Panic button
• Electronic programmable fault box (12 faults)

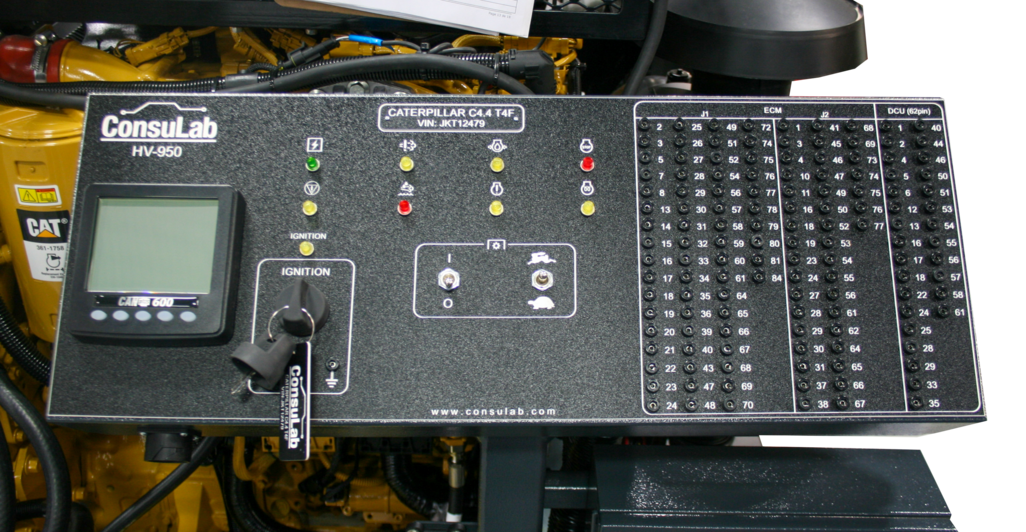

• Dashboard including:
  • CanPlus 600 display
  • ECM and ATM breakout box
  • Ignition key switch w/test points
  • Indicator lamps
  • Gauges
  • ON/OFF switches
  • Selector switches
  • Functional DLC using SAE J1939 protocols

Fully Functional OEM Vehicle Systems

• CAT Common rail injection
• PTO (power take-off)
• CEM (clean emission module)
• DPF (diesel particulate filter)
• DOC (diesel oxydation catalyst)

Optional Equipment

• Generator
• Load bank
