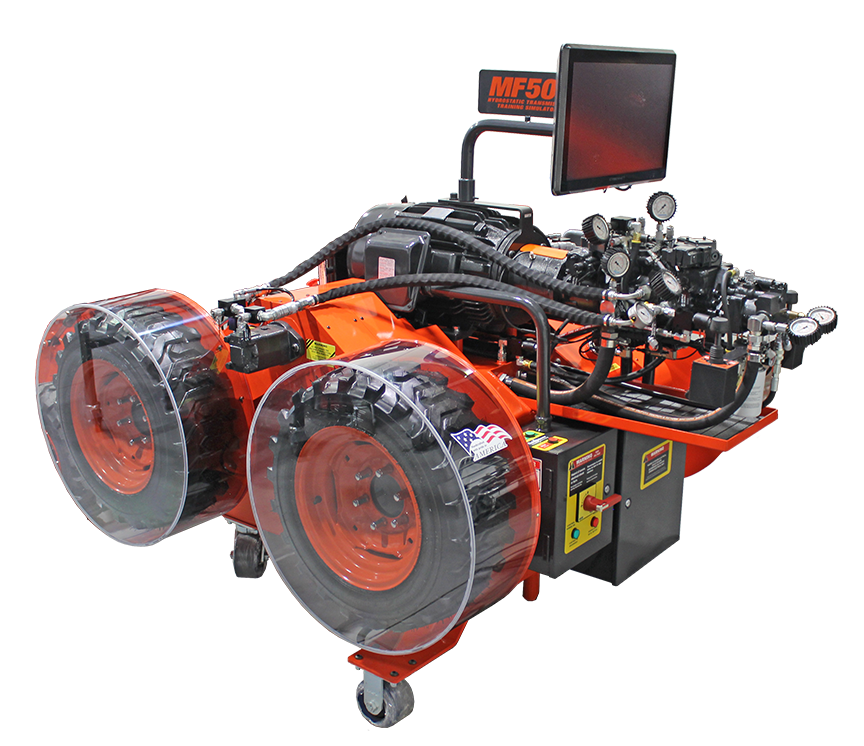

The MF500-HT-TSE Hydrostatic Transmission Training Simulator is the industry’s most advanced, safest, and instructionally powerful alternative to teaching hydrostatic drives using real skid-steer loaders. Designed specifically for education—not construction environments—it recreates the look, feel, and function of a skid-steer hydrostatic transmission without the hazards of moving machinery, exhaust, confined spaces, or unpredictable equipment motion. Students can drive the system under load in real time, perform adjustments, practice diagnostics, and troubleshoot every major hydrostatic failure mode published in manufacturer flowcharts.
With dual tandem-mount axial piston pumps, electronic displacement controls, independent wheel-load systems, and a 24″ touchscreen PC loaded with diagnostic activities, the MF500-HT-TSE gives instructors full control over operating conditions and fault scenarios. This setup prepares technicians for the exact challenges they’ll encounter in the field—startup checks, pressure adjustments, null adjustments, case pressure verification, and troubleshooting performance issues—while ensuring the highest levels of safety, accessibility, and team-based learning.

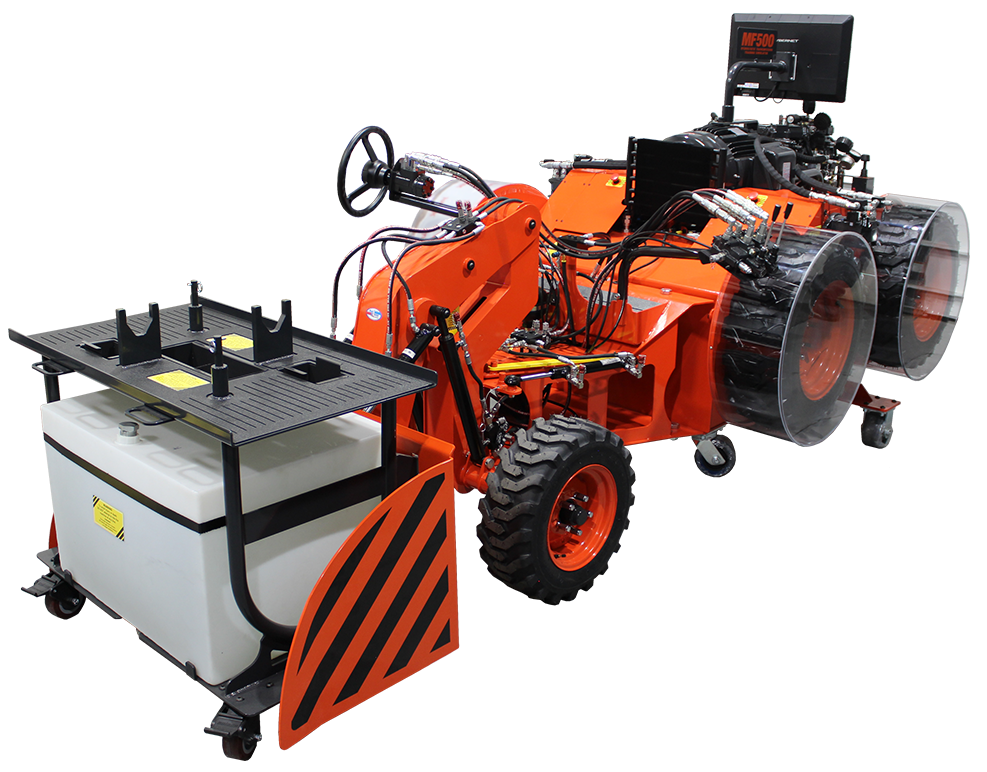

With the MF500-IS-TSE Implement + Steering Training Simulator Add-On, the MF500 Hydrostatic Transmission Trainer transforms into a fully functional loader-style hydraulic system with articulated steering, dual work cylinders, load-holding valves, and complete diagnostic capability. This add-on training module gives students real, hands-on experience with implement lift, tilt, and steering circuits, without the hazards, complexity, or maintenance demands of working on actual equipment. Learners can safely perform adjustments, execute measurements, and troubleshoot every major hydraulic failure mode associated with loader functions.
Ideal for advanced workforce development, heavy-equipment academies, and industrial maintenance programs, the MF500-IS-TSE allows instructors to simulate real implement tasks in a controlled environment. Students learn to identify performance issues, verify load-holding behavior, interpret cylinder motion problems, and diagnose valve, pump, and load sense faults using industry-standard tools and structured troubleshooting workflows.
Teaching + Learning in Real Time
Students learn on a fully functional hydrostatic transmission they can drive, load, adjust, and troubleshoot safely inside a classroom. This bridges the gap between simulated learning and real-world hands-on practice.
The Safest Hydrostatic Training Simulator Available
No wheels on the ground, no rotating tracks, no hot engines, no hazardous exhaust, no confined spaces, no fatigue-inducing crouched work positions, and all moving components are guarded by heavy-duty Lexan® enclosures.
Unmatched Diagnostic Capability
Faults like worn pumps, worn motors, electronic failures, unidirectional operation issues, sluggish response, and overheating can be automatically introduced for real-time troubleshooting—something impossible to simulate consistently with actual vehicles.
Transforms Students Into Industry-Ready Technicians
Students master critical skills including pump/motor installation, pre-start checks, relief valve setup, null adjustments, case pressure checks, displacement control adjustments, and complete hydrostatic troubleshooting workflows.
Extremely Versatile + Configurable
Trainers can teach any make or type of hydrostatic transmission. Pumps and motors can be swapped or chosen at purchase, including high-speed and low-speed motor configurations.
Built-In Safe-T-Bleed® System
An FPTI™ exclusive enabling safe lockout, verification, and zero-energy state procedures—without discharging high-pressure oil into the atmosphere.
Optional Implement + Articulated Steering Module (MF500-IS-TSE)
Transforms the system into a fully functional front-end loader with articulated steering and cylinder service capabilities—without introducing the hazards associated with real equipment.
Adds Real Loader Functions to the MF500 System
The module includes lift and tilt cylinders, a load-holding valve, pilot controls, and an articulated steering mechanism, replicating the exact functions technicians service on mobile equipment.
Safe, Controlled, Classroom-Ready Operation
No moving machines, no unstable loads, no pinch points, and no live equipment risks. All dynamic components are guarded and accessible for learning.
Industry-Standard Diagnostic Training
Students perform lift/tilt troubleshooting, measure operating pressures, analyze load-holding behavior, identify cylinder drift, and verify valve performance under applied loads.
Full Articulated Steering Simulation
Includes steering cylinder(s), steering valve, feedback linkage, and load-sense behavior, allowing learners to understand the hydraulic logic behind heavy equipment steering.
Perfect for Real-World Skill Development
Teaches the exact skills needed in construction, mining, forestry, agriculture, and utility equipment maintenance, without the downtime or risk of damaging expensive machines.
Pairs Seamlessly With MF500-HT-TSE
The module integrates into the hydrostatic drive trainer without requiring external machinery, engines, or hydraulics. Just connect, configure, and instruct.
Prime Mover
Hydrostatic Pump System
Drive Motors + Wheel-Load System
Instrumentation + Controls
Diagnostics + Fault Insertion
Safety Systems
Reservoir + Hydraulics
Dimensions + Shipping
Electrical Requirements
208/230 VAC:
460 VAC:
Options
Implement Hydraulic Functions
Articulated Steering System
Controls (Operator Interface)
Diagnostics + Troubleshooting Features
Safety Systems
Construction + Mounting
Compatibility
Curriculum Overview:
The MF500-HT curriculum teaches students how hydrostatic drive systems operate, respond to load, and fail under real-world conditions. Through structured labs, learners analyze pump and motor behavior, evaluate charge pressure requirements, observe displacement changes, and measure system response across a variety of simulated conditions. Diagnostic activities guide students through interpreting pressure signatures, identifying performance losses, and confirming the root cause of hydrostatic drive issues. The curriculum blends schematic interpretation, guided experimentation, and fault-based analysis to prepare students for maintaining and troubleshooting mobile hydrostatic equipment.
Topics Covered:
Implement Hydraulic Functions
Articulated Steering System
Controls (Operator Interface)
Diagnostics + Troubleshooting Features
Safety Systems
Construction + Mounting
Compatibility
