MMTS – Relay Training Expansion Kit

The Relay Training Expansion Kit provides everything instructors need to integrate relay diagnostics into the MMTS learning platform. It includes the MMTS-Compatible Fault-Insertion Relay Module, a printed schematic mat, a compact storage case, and ready-to-use curriculum content designed for Canvas LMS.

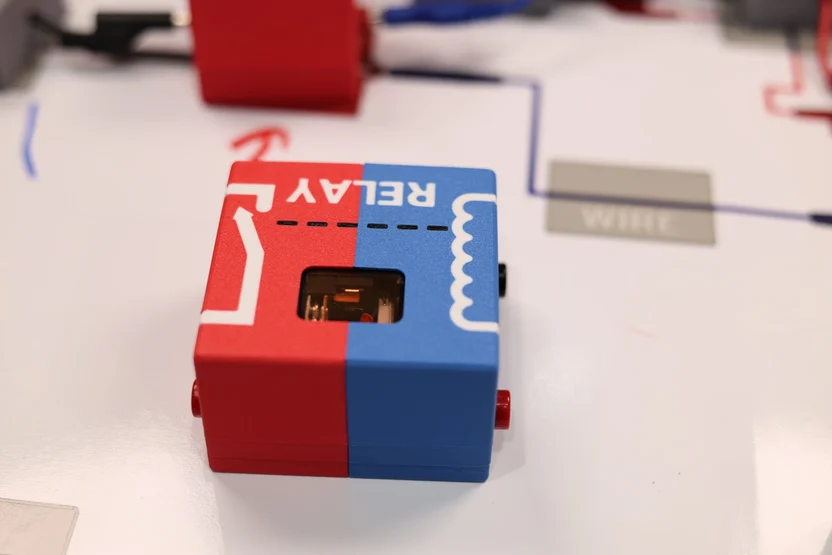

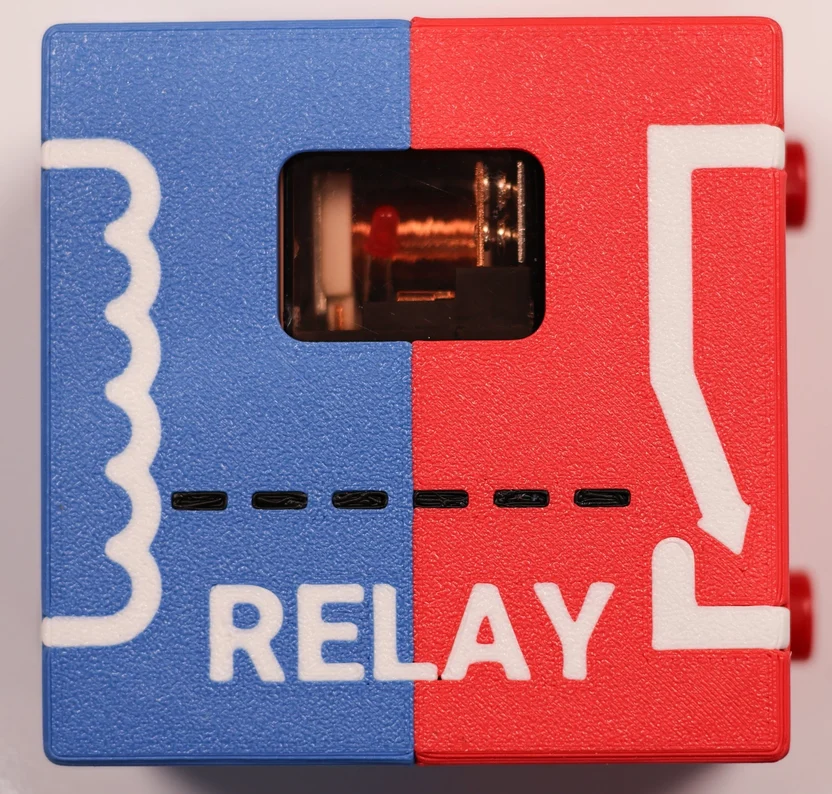

The relay module features internal fault-insertion capability (open or high resistance) on both the coil and switch circuits, along with a front-facing schematic and viewing window for clear student interaction. Banana jack terminals provide clean, testable connections. The printed mat visually guides students on where to place each component, improving accuracy and schematic comprehension during lab work.

Note: an MMTS – Series-Parallel Circuit Trainer or MMTS – ECU Turn Signal Trainer for full circuit integration.

Product Details

The included storage case is sized to fit neatly into the extra space in the Milwaukee Packout box that comes with either MMTS core kit, keeping your training setup portable and organized.

This kit also includes Canvas LMS-ready curriculum, featuring:

Detailed instructional content on relay operation
Lab assignments built around the fault-insertion module
Auto-graded quizzes to assess understanding

Includes:

1× MMTS-Compatible Fault-Insertion Relay Module
1× Printed Schematic Mat
1× Compact Storage Case (Packout-compatible)
1× Curriculum Package (Canvas LMS format)

Key Features:

Embedded fault-insertion relay with visual feedback
Printed schematic mat for guided component placement
Curriculum with lab activities, quizzes, and relay theory
Canvas LMS compatibility for easy integration into your course
Packout-compatible storage case for portability and protection

Each unit is manufactured in the United States, with select components sourced globally to ensure quality and long-term reliability.

Designed for MMTS Integration: This kit is built specifically to work with the MMTS – Series-Parallel Circuit Trainer Kit and MMTS – ECU Turn Signal Trainer Kit. The relay module and schematic mat align with MMTS component layouts and color conventions, ensuring a seamless student experience.

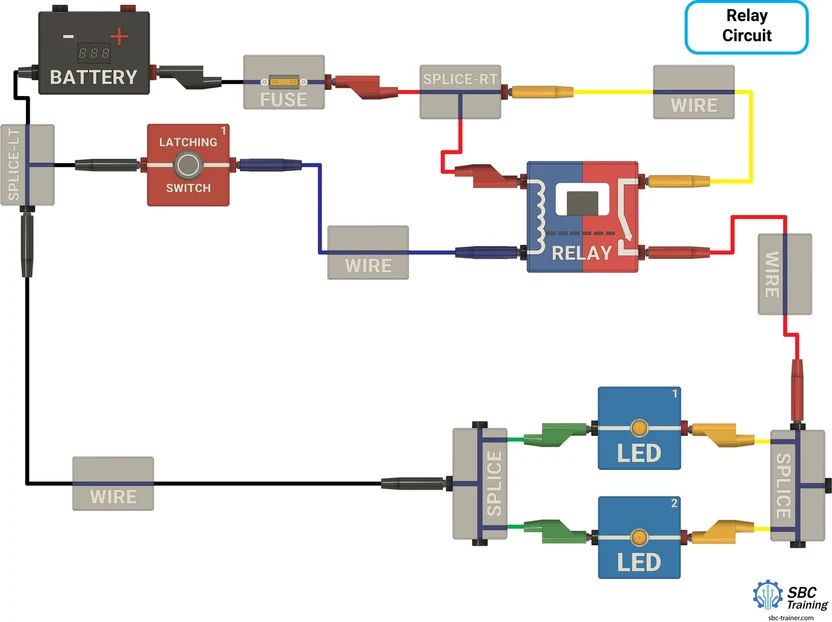

Mat for Guided Placement: The printed mat helps students develop schematic-reading skills by clearly showing where to place each component in the circuit. This reduces setup errors and reinforces component function within the system.
Hands-On Fault Simulation: The fault-insertion relay allows instructors to simulate realistic open or high-resistance faults on both the coil and switch sides of the relay. Students can practice voltage drop testing, identify intermittent faults, and build circuit-based diagnostic strategies.
Built for Classroom Use: The enclosure is compact and durable, with magnets embedded for easy placement during lab work. All connection points use standard 4mm banana jacks for consistent, tool-free connections.
Packout-Compatible Storage: The included storage case fits neatly into the extra space in the Milwaukee Packout boxes used with MMTS kits, making it easy to store, transport, and deploy the relay module wherever needed.
Canvas LMS Curriculum: The included curriculum package is pre-formatted for Canvas LMS and includes:
- Instructional content on relay theory and operation
- Guided lab activities using the fault-insertion relay
- Multiple-choice quizzes for assessment and reinforcement
- Modular structure for easy insertion into existing electrical or electronics courses
