Ram/Cummins Diesel + Fault Box

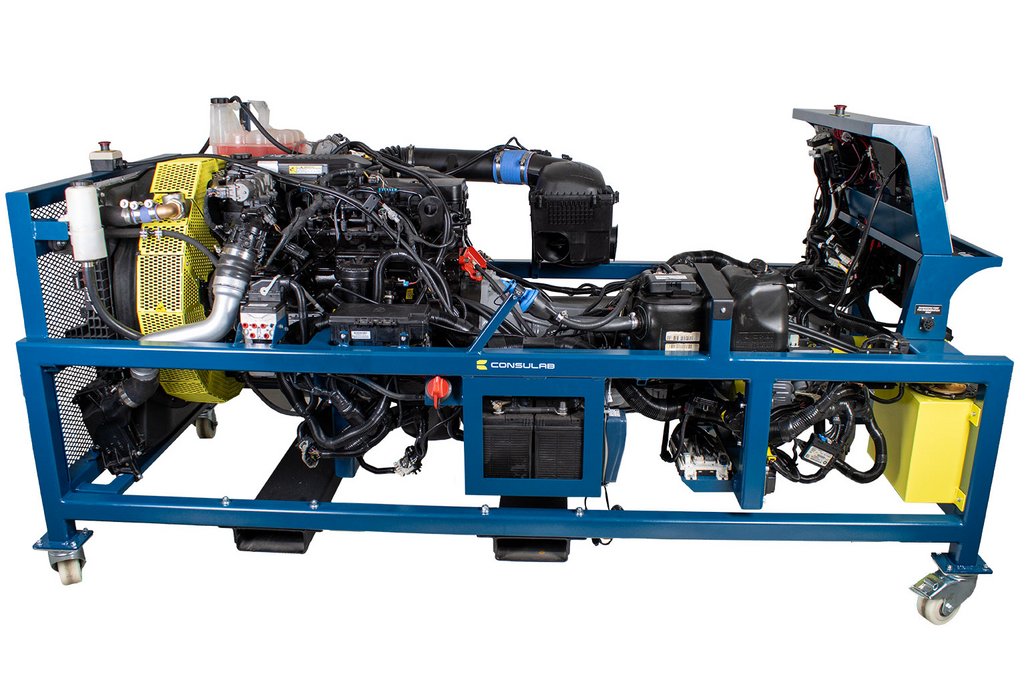

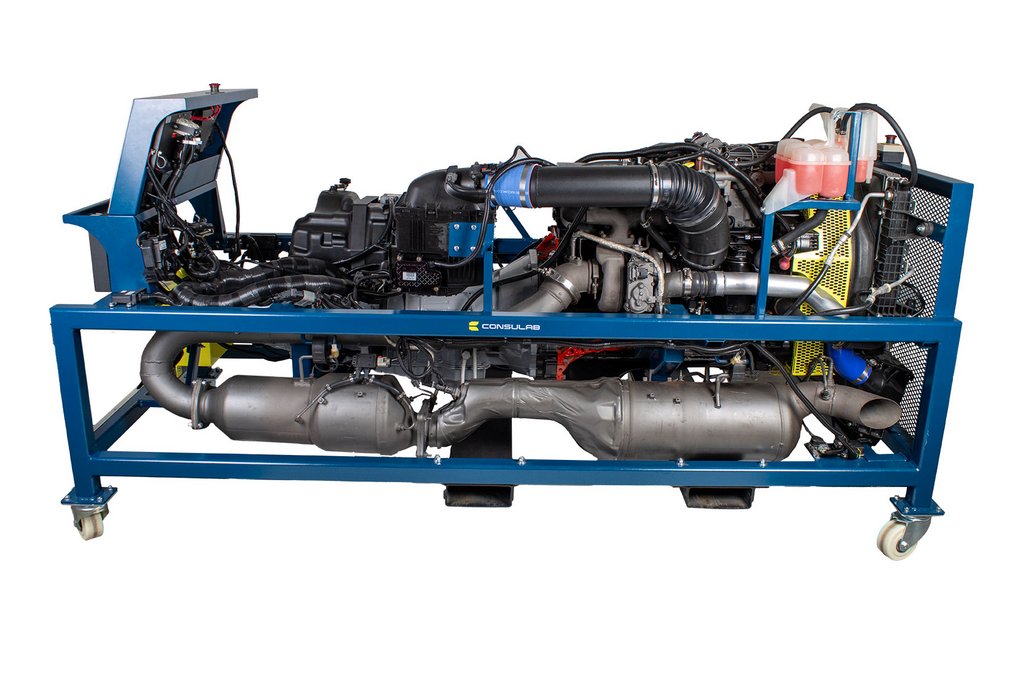

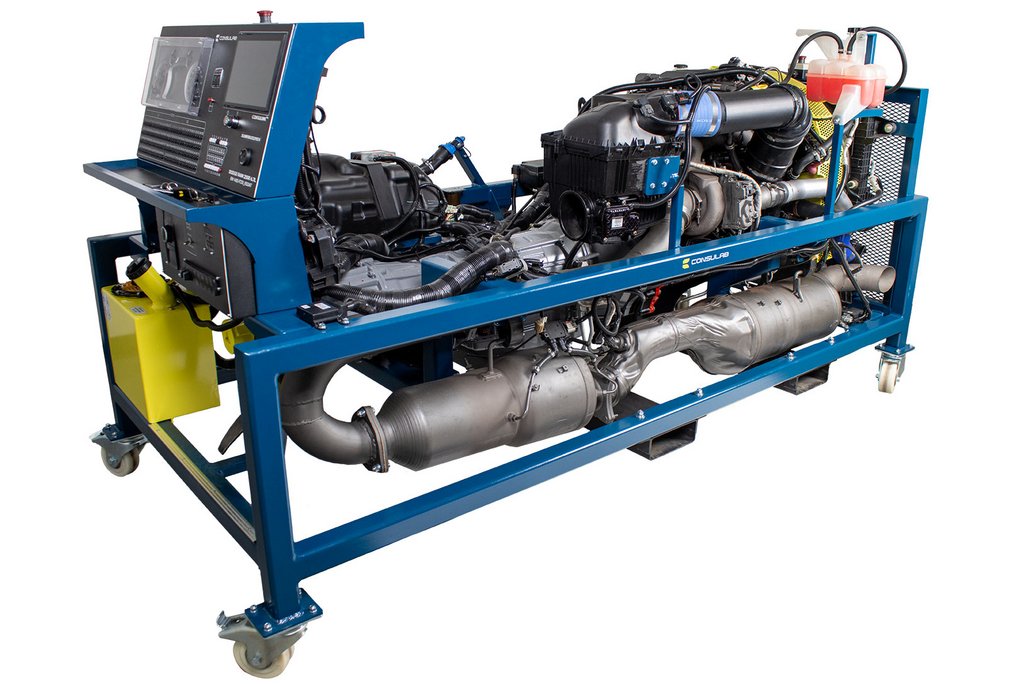

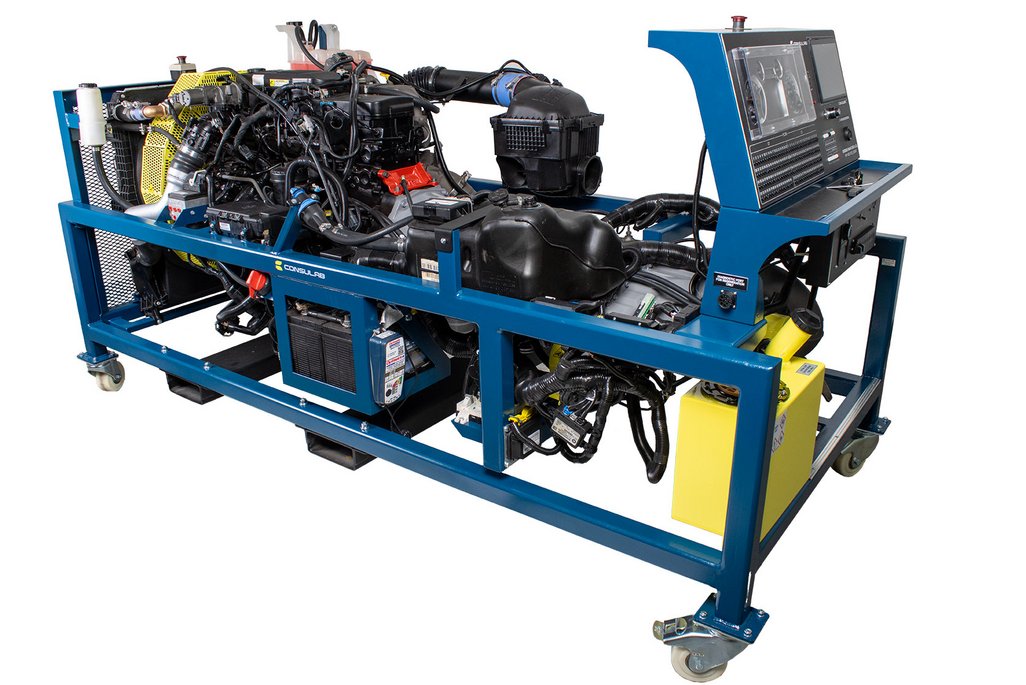

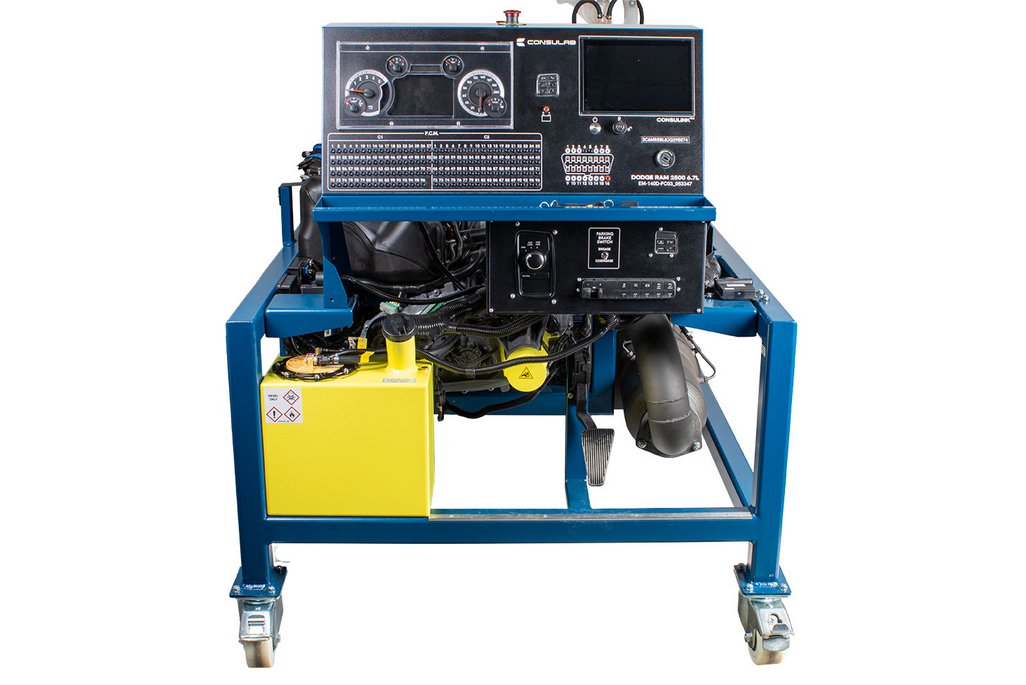

The diesel engine trainer is a fully operational engine mounted on a mobile stand. Trainer is based on 2016-2013 Ram Trucks w/Cummins 6.7L global engine platform. The trainer is easy to work on and all major components, wiring and connectors match OEM configuration. The trainer is mounted on a mobile stand constructed of 2” (5 cm) tubular steel equipped with four 5” (12.5 cm) phenol casters (2-fixed and 2-swivel w/locks). Students can perform many NATEF related Engine Performance and Electrical/Electronic tasks using this trainer. Trainer is equipped with safety guards covering all rotating components.

From Our Partners at


Educational Advantages

  • Demonstration of systems to groups of students without the access limitations of a complete vehicle
  • Engine system responds to inserted faults with real world symptoms, OEM DTC’s and check engine light operation
  • Equipped with all OEM equipment related to EPA 2010 Emission Standards (with SCR)

2016-2013 Model Years

  • Engine – Ram Truck with Cummins 6.7L 6-cylinder diesel engine compliant with EPA 2010 standards
  • Displacement – 6.7L (410
  • Compression Ratio – 17.3 : 1
  • Aspiration – Tturbocharger with variable geometry
  • Engine Type – OHV – (4 valves per cylinder)
  • Injection – Electronic Bosch High Pressure Common Rail system (26,000 psi)


  • High pressure common rail fuel system (Bosch)
  • Automatic transmission
  • OBDII data link connecter for scan tool hookup

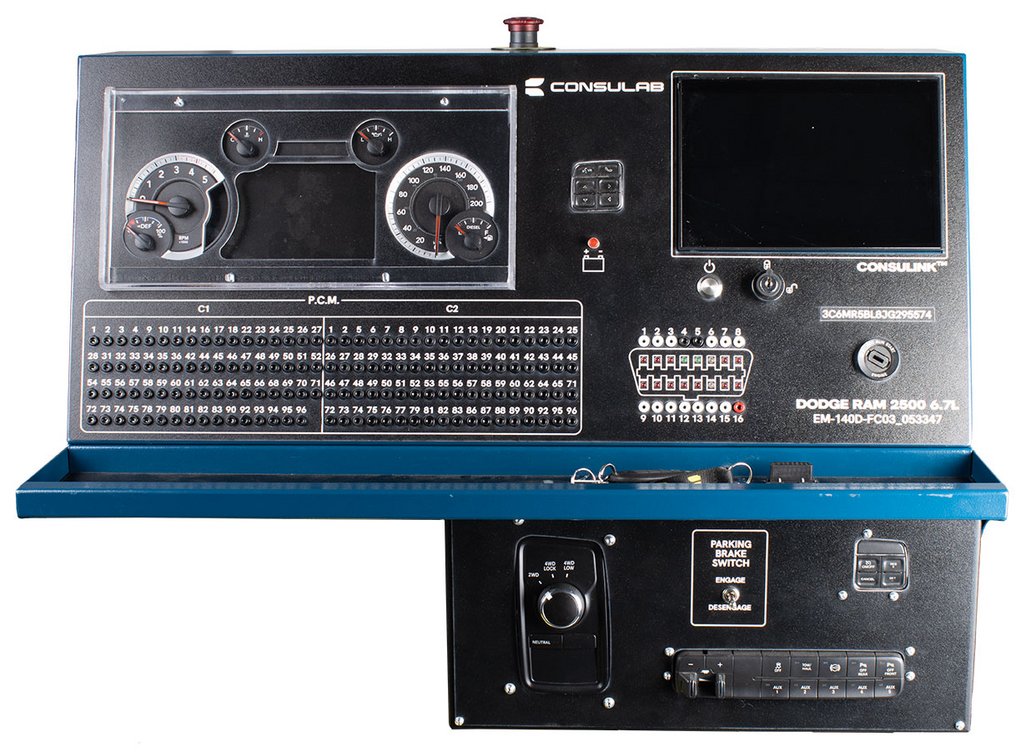

  • Integrated ECM breakout box with test points for oscilloscope and DMM hookup
  • Breakout box terminals identified with OEM terminology and numbers
  • Diesel Particulate Filter (DPF)
  • Exhaust Gas Recirculation (EGR)
  • Diesel Oxidation Catalyist (DOC)
  • Selective Catalytic Reduction (SCR) w/ DEF injection
  • Closed Crankcase Ventilation System

Standard Equipment

  • Automatic regulated 12V battery charger
  • Fuel tank
  • DEF tank
  • Exhaust system with catalytic converter

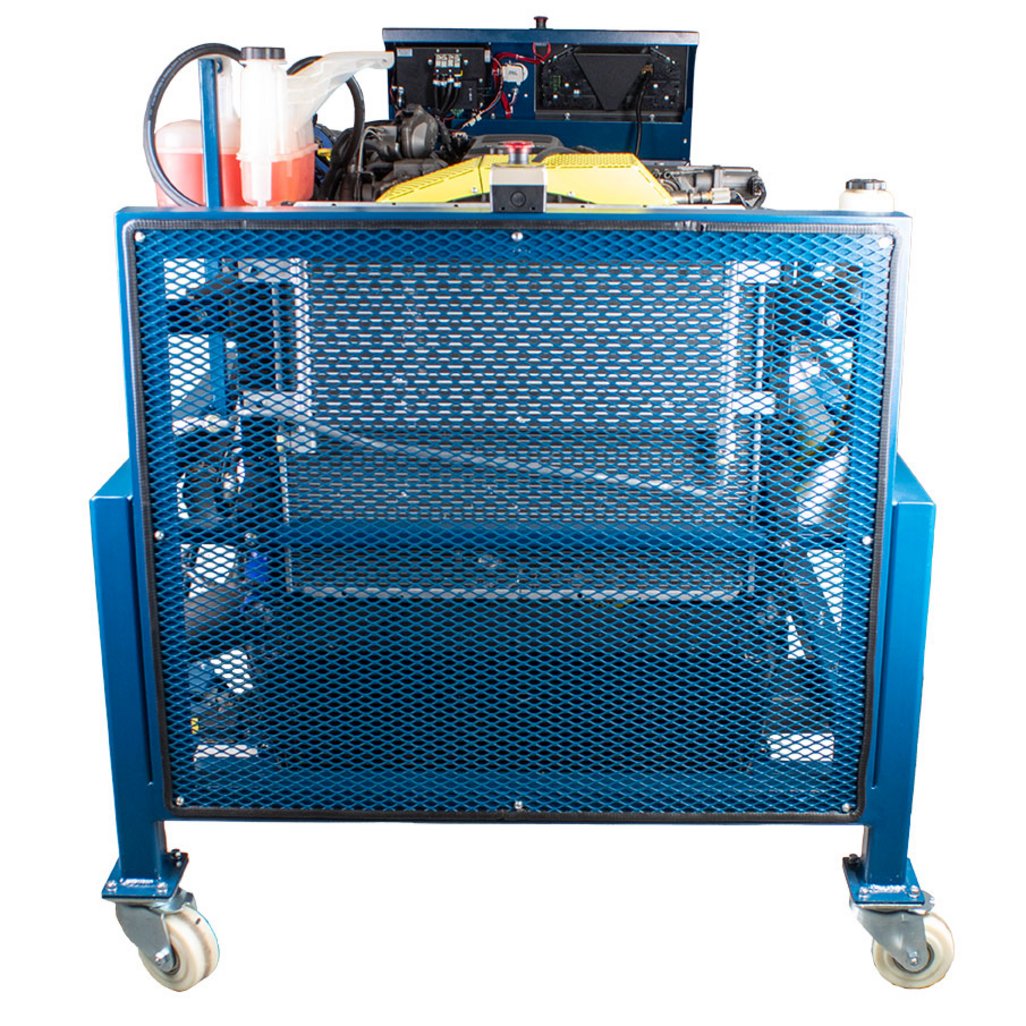

  • Safety covers for all rotating devices
  • Heavy Duty 2” square tubing mobile stand with 5” (12.5cm) phenol casters (2-fixed & 2-swivel w/locks)
  • 52827X  EM-1240X Custom fork lift bar set for engine bench
  • Comes with only one OEM key (additional keys available)

Optional Equipment

  • 24082    EM-120C Custom vinyl dust cover with two zipper openings
  • 25013    CLE Secondary key for engine bench
  • 52905    EM-140-11 Custom instrument panel protection
  • 53125    EM-140-09 Custom coolant flow sight glass
  • 53090    EM-250-2C Custom electronic programmable fault box
  • 52575    EM-250 Manual fault box for engine
