The first step to securing funding is building a plan for your program. Let us help you get started.

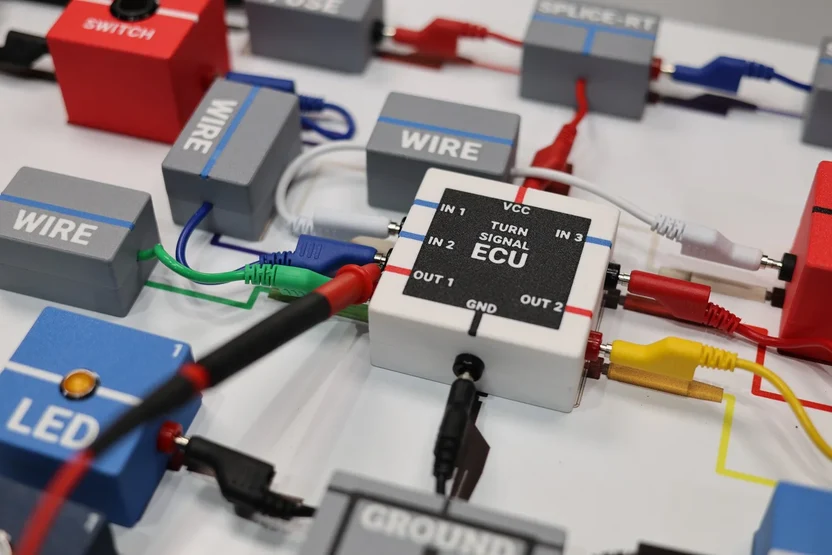

The MMTS – ECU Turn Signal Trainer Kit is a hands-on Magnetic Mat Electrical Training System designed to help students understand how modern automotive lighting circuits function—including how an ECU responds to various inputs and controls outputs. This kit focuses on turn signal operation and gives students a real-world look at both power-side and ground-side switching using automotive-style components.
This kit includes all the modules from the Series-Parallel Circuit Trainer plus additional modules for teaching more advanced electrical/electronics principles.
Real-World Circuit Training: Teach students how ECUs interact with switches and loads through hands-on exploration.
Switching Concepts Made Clear: Demonstrates both power-side and ground-side switching, a foundational concept in modern vehicle electronics.
Diagnostics & Troubleshooting Practice:
Every node in the kit (except the fuse) can be set to a fault state, allowing instructors to introduce electrical issues and guide students through realistic diagnostic scenarios.

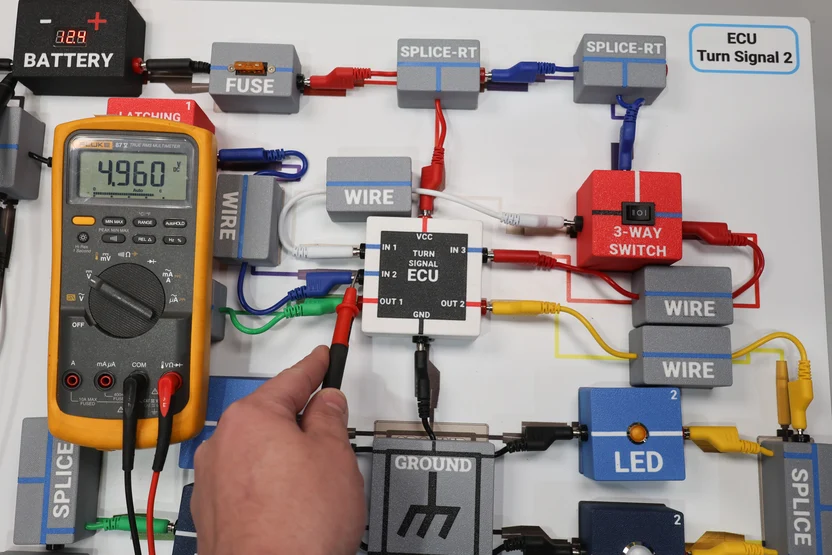

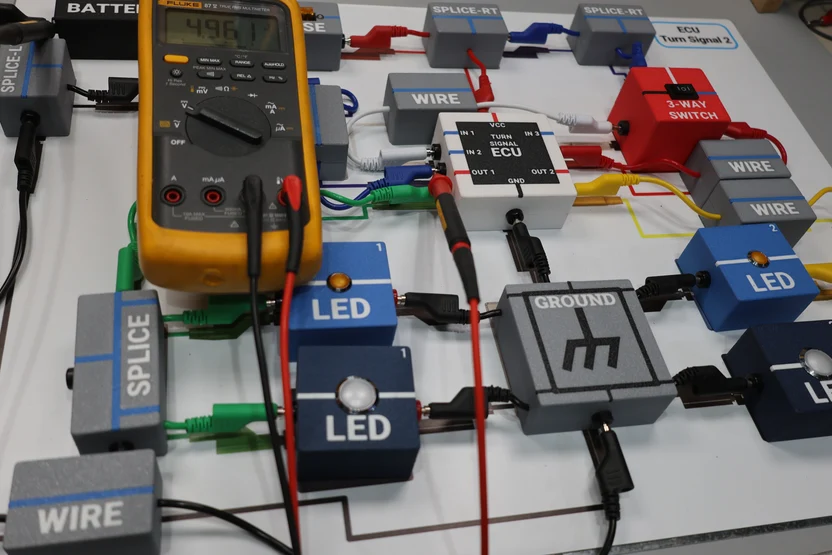

Repeating the same circuits with different fault conditions helps students master voltage drop testing and develop critical thinking skills in electrical diagnostics.
Auto-Graded Curriculum: The included Canvas course features automatically graded quizzes, giving instructors real-time insights into student progress while freeing them up to provide personalized troubleshooting guidance.
Magnetic Mat Design: Durable, visual mats make circuit layout intuitive and repeatable.

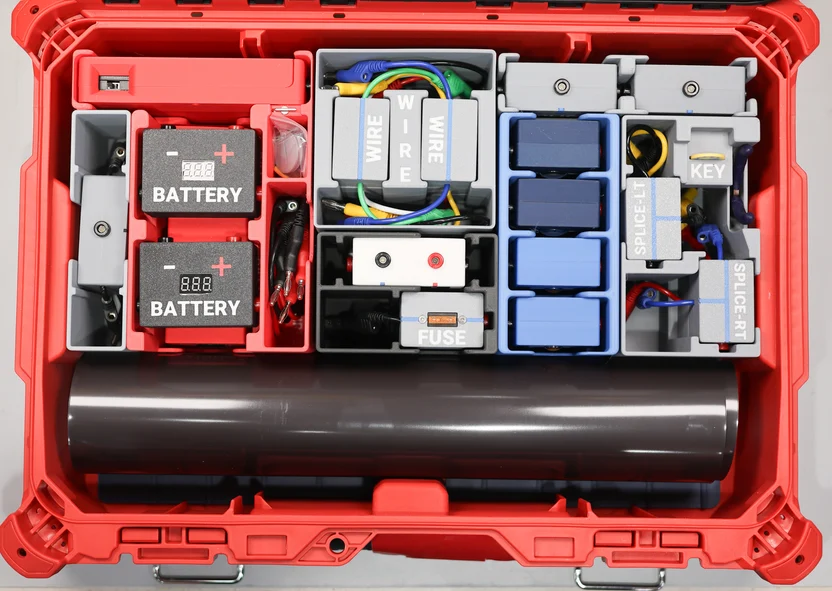

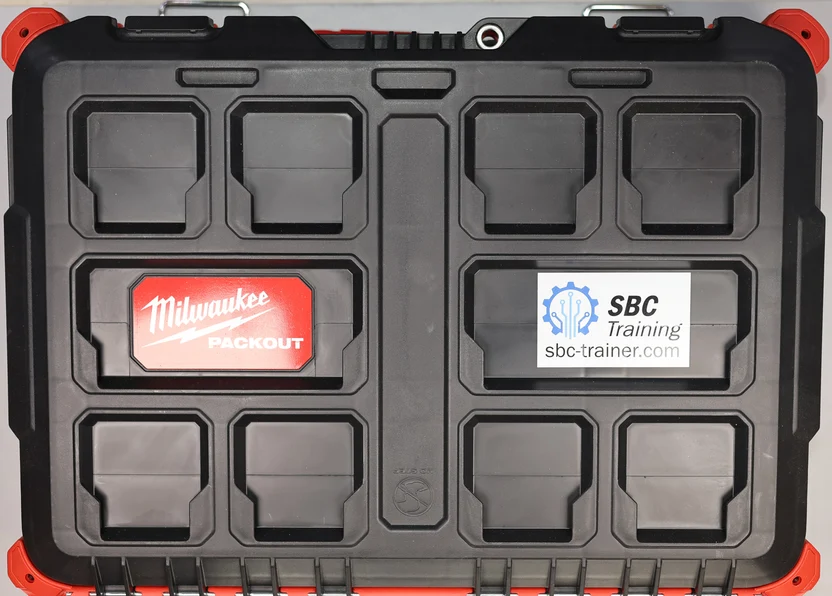

Classroom Ready: Comes fully packed in a Milwaukee Packout with labeled storage, tools, and a guided curriculum.
Problem-Solving Practice: Set up and troubleshoot problems or “bugs” in various parts of the circuit, including wires, junctions, switches, and loads (components that use current).
Hands-On Learning: Students and instructors can quickly build and modify circuits on a magnetic base, making it easy to introduce and resolve faults.
Quick Testing: Instructors can efficiently test student knowledge by introducing bugs and then verifying correct circuit functionality.
Comprehensive Manuals: Each kit includes free student and instructor training manuals.
This kit includes all the modules from the Series-Parallel Circuit Trainer plus additional modules for teaching more advanced electrical/electronics principles.
