Power Logic Element Valve Training Module (Optional Add-On)

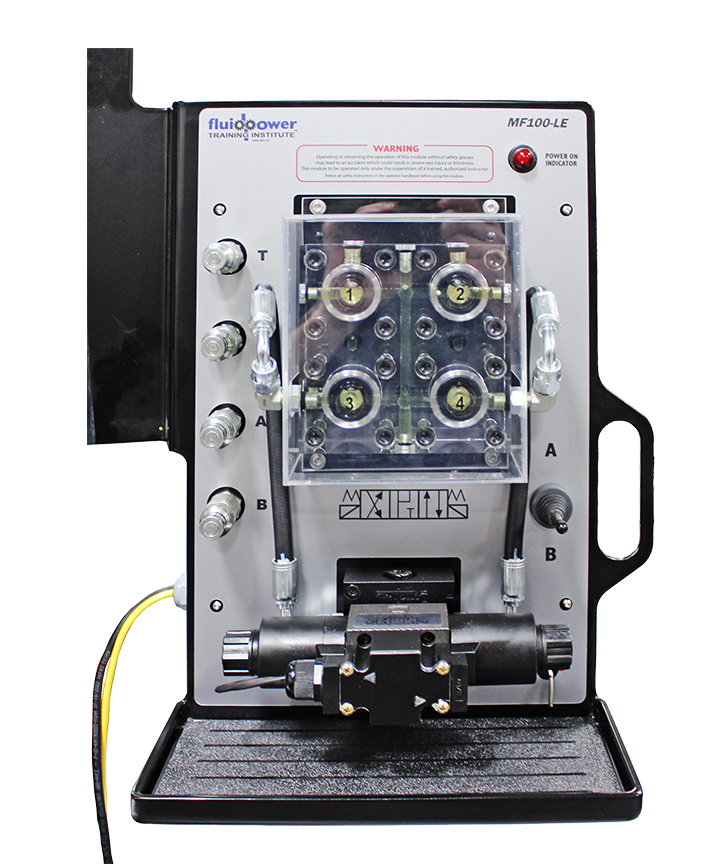

The MF100-LE-TS Power Logic Element Valve Module gives students a rare, fully transparent view into one of the most powerful, and often misunderstood, hydraulic technologies: poppet-type power logic valves. Designed for high-flow, high-pressure control, power logic valves can perform an unlimited range of flow-direction and pressure-control functions, but their internal behavior is notoriously difficult to explain through diagrams alone. This module solves the problem with a see-through, live-operating logic valve that mounts directly to any MF102-Series trainer.

Armed with auto-fault and diagnostic capability, instructors can demonstrate how logic elements open, close, latch, and control flow under varying hydraulic conditions. Students learn to build circuits, observe internal poppet behavior, and troubleshoot faults with complete clarity, making this one of the most instructionally effective logic element teaching tools available today.

Product Details

Key Features + Benefits

Transparent, Fully Functional Power Logic Valve

Students can see the poppet mechanism in action, something normally impossible with standard industrial logic valves.

Teaches Real Power Logic Valve Behavior

Covers 2-position, 2-way, non-passing poppet valves used independently or in groups to create advanced flow-direction and pressure-control logic.

Ideal for Simplifying a Difficult Concept

Many students struggle with logic valves regardless of how many diagrams or explanations are used. This module solves that learning barrier through live visualization.

Auto-Fault + Troubleshooting Capability

Built-in diagnostic features let instructors introduce hydraulic faults, allowing students to practice logical fault isolation on a real logic element.

Plug-and-Play Integration

Installs quickly and easily onto any MF102-Series training system, matching the mounting style of all MF100-series modules.

Supports Full Curriculum Packages

Includes logic-element activity guides, instructor materials, PowerPoint™ visuals, and optional student workbooks and answer books.
