uScope DSO Classroom Kit

The uScope is a single channel, pocket-sized, digital storage oscilloscope (DSO) that is small, quick, and powerful enough to capture the fastest signals when connected to ConsuLab trainers or other signals. In less than 4 seconds it’s booted up and ready to take aim on any signal. This kit includes the most common accessories and test leads needed for labscope diagnostics. The uScope is equipped with a 12-bit analog/digital converter, samples at 1 million/second and includes 10x peak detect oversample. Classroom Kit includes the following:

From Our Partners at ,


Educational Advantages

  • Although physically small, the uScope has many features equal to much more expensive units.
  • The uScope has internal preset stored sample patterns for sensors, actuators, amp, ignition and charging system patterns for student reference. Patterns can be over-layed with live pattern for comparisons.
  • The uScope has a built in 10Hz-1MHz square wave signal generator for student learning and practice. The signal is manually adjustable for duty cycle and frequency.
  • Obtained waveforms can be saved and stored on a computer for future recall and instruction.

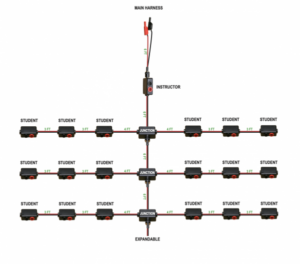

  • Being extremely affordable, multiple units can be purchased for groups of students all viewing one signal with the optional signal distribution harness.

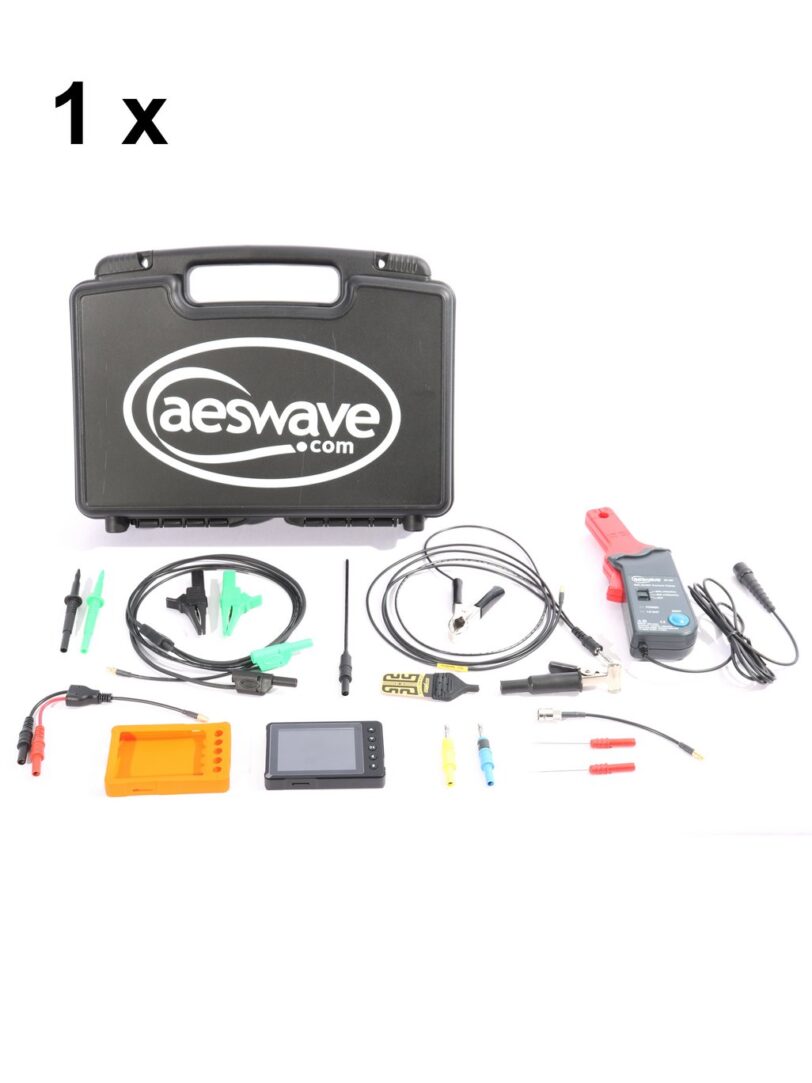

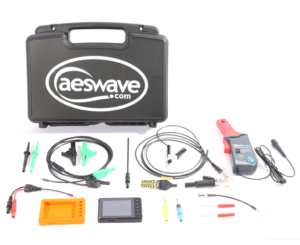

Master Kit Contents

  • uScope Digital Storage Oscilloscope
  • Protective boot (orange)
  • Low Current Amp Probe (10mA – 60A)
  • Shielded test lead (5-ft)
  • Secondary lead (5-ft) with COP paddle and plug wire clamp
  • AC filter
  • Primary ignition probe (attenuator)
  • Alligator clips (black & green)
  • 2mm pin tip probes (black & green)
  • EAP backpinning probes (2)
  • Adapter for BNC connector
  • Adapter for banana plug
  • 2GB micro SD card
  • Micro USB cable
  • 3.5mm mini phono plug for signal generator
  • Hard carrying case
  • User manual (PDF file will be emailed)
