Orbital Steering Valve Training Module (Optional Add-On)

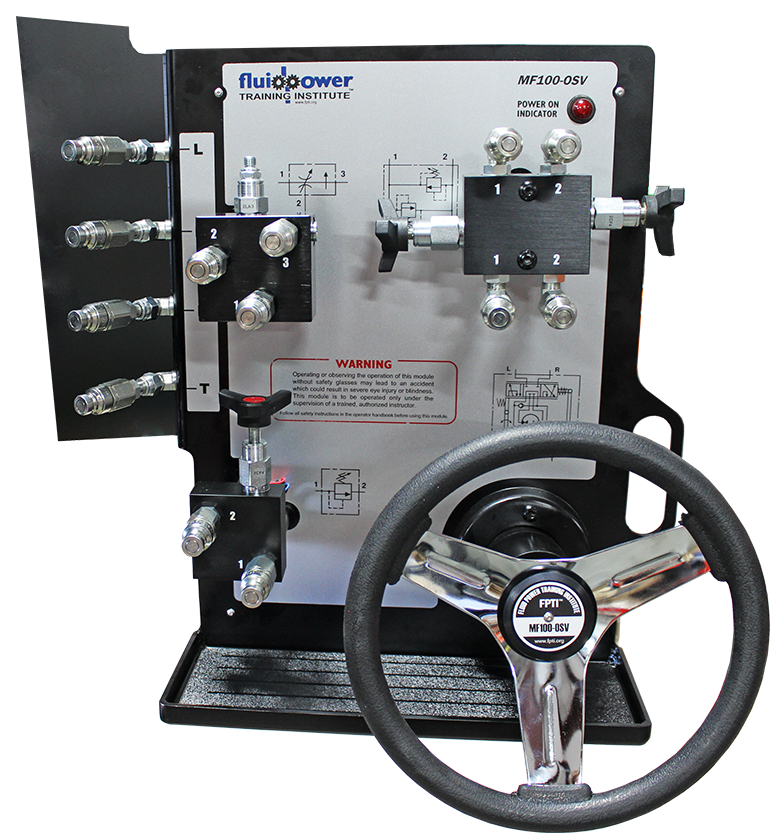

The MF100-OSV Orbitrol Steering Valve Module is a complete, plug-and-play steering system designed to teach how hydraulic steering works on articulated machinery such as loaders, mining trucks, forestry equipment, and agricultural vehicles. Students build the entire hydraulic steering system from the ground up using real industry components, including an orbitrol steering valve, priority flow divider, cross-port relief valves, main relief valve, and optional hydro-pneumatic accumulator.

The advanced MF100-OSV-TS version adds FPTI’s exclusive auto-fault technology, allowing every component to “wear out” in real time for high-accuracy troubleshooting training. This gives learners safe, hands-on experience diagnosing steering faults using proper instruments, procedures, and schematic interpretation, skills that directly transfer to field equipment service.

Product Details

Key Features & Benefits

Teaches Real Hydraulic Steering System Architecture

Students assemble a complete articulated steering system, learning how priority flow, relief protection, and orbitrol metering interact.

Includes All Major Steering Components Found in Heavy Equipment

Components include:
• Orbitrol steering valve
• Steering wheel
• Priority flow divider
• Main pressure relief valve
• Dual cross-port relief valves
• Optional hydro-pneumatic accumulator (MF100-ACC-FP)
All with zero-leak flat-face quick connects.

TS Version Adds Full Diagnostic Capability

Every component can be made to “wear out” via built-in auto-fault technology, no cartridge swapping required. Students troubleshoot live steering failures just like in the field.

Excellent for Articulated Vehicle Training

Ideal for programs that teach steering systems on loaders, haul trucks, agricultural tractors, forestry machines, and more.

Develops Real Technician Skills

Students learn system construction, valve setup, diagnostic tool usage, correct service procedures, and schematic reasoning.

Plug-and-Play Integration

Mounts quickly to any MF102-Series hydraulic trainer and can be adapted to other hydraulic simulators meeting simple pump/cylinder criteria.

Specifications

Steering Components

Orbitrol steering valve
Priority flow divider
Main pressure relief valve
Dual cross-port relief valves
Steering wheel assembly
Optional hydro-pneumatic accumulator (MF100-ACC-FP)
All components use zero-leak flat-face quick couplers.

Training Capabilities

Students learn to:

Safely work on hydraulic steering systems
Use steering schematics to construct complete systems
Identify and explain orbitrol operation
Understand priority flow management
Set main relief, cross-port relief, and priority valves
Analyze oil flow, component interaction, and steering dynamics

Diagnostic Features (TS Model Only)

Auto-fault technology simulates real component wear
Faults introduced without replacing cartridges
Students practice troubleshooting using proper instruments
Supports learning safe and effective diagnostic workflows

Compatibility

Designed for MF102-Series hydraulic training systems
Can be adapted to any simulator with:
• pressure-compensated pump (1.0 GPM @ 1000 PSI)
• double-rod, double-acting cylinder
