Electro-Hydraulic Control Training Module (Optional Add-On)

MF100-EHCM Electro-Hydraulic Control Module — Short Summary

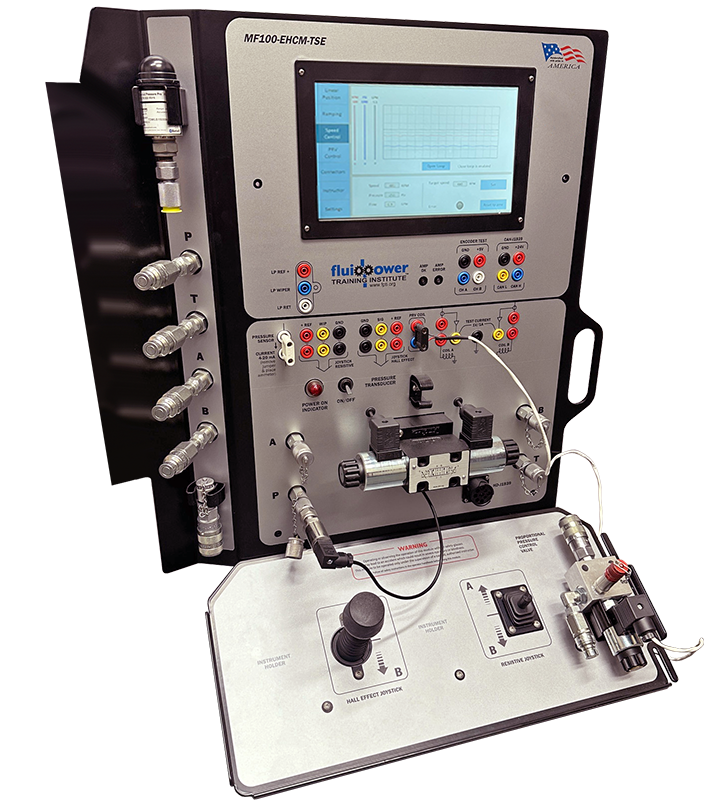

The MF100-EHCM Electro-Hydraulic Control Module is a plug-and-play expansion system that gives students hands-on experience with today’s most widely used electro-hydraulic technologies. From proportional valves to PWM amplifiers, linear sensors, transducers, encoders, and CANBUS diagnostics, this module prepares technicians to adjust, program, and troubleshoot the complete range of modern electro-hydraulic components. Integrated touchscreen animations allow learners to see inside proportional valves, watch ramping curves change in real time, and visualize how electronic inputs affect hydraulic motion.

Designed for technical schools, workforce training programs, industrial maintenance crews, and advanced hydraulics coursework, the MF100-EHCM builds essential skills in both open-loop and closed-loop control. Students learn how to diagnose electrical and hydraulic faults, analyze sensor signals, understand input/output logic, and configure system parameters, all in a safe, instructor-controlled environment that mounts directly onto any MF102-Series training system.

Product Details

Key Features & Benefits

Covers the Full Range of Modern Electro-Hydraulic Technologies

Includes proportional direction & flow control valves, PWM amplifiers, linear feedback sensors, encoders, proportional pressure valves, and both wired & wireless transducers.

Built-In Touchscreen With Real-Time Animated Visualizations

Students can observe proportional valve behavior, ramping changes, dither effects, and internal component motion using animated cutaway views.

Supports Joystick Control & CANBUS Diagnostics

Compatible with Hall-effect, resistive, and optional CANBUS joysticks. Diagnostics available via J1939 CANBUS reader.

Develops Practical Troubleshooting Skills

Students learn to diagnose real-time electrical & hydraulic faults, analyze coil voltage/current with an oscilloscope, and compare outputs to known-good values.

Teaches Essential Electronic Concepts Behind Hydraulics

Covers dither frequency, input/output logic, open vs. closed loop, calibration issues, encoder signal interpretation, and PWM amplifier settings.

Plug-and-Play Integration With MF102 Series

Mounts easily and securely like all MF100 modules, no special hardware required.

Industry-Relevant Skill Development for Every Technician Level

Ideal for technicians who maintain proportional valves, electro-hydraulic systems, mobile equipment, and automated machinery.
