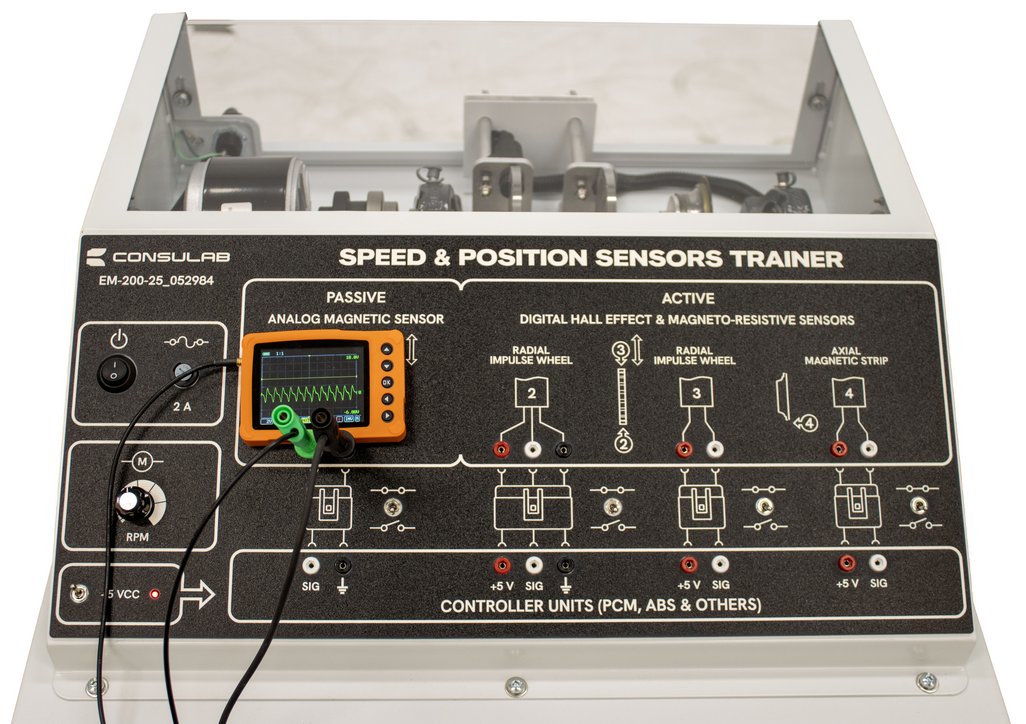

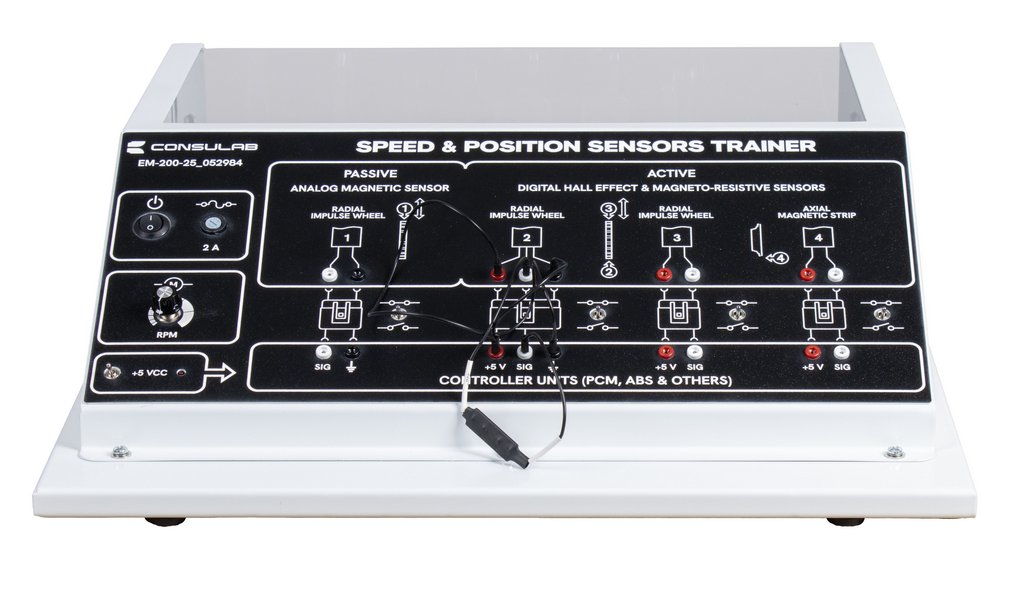

The Speed + Position Sensors Training System (EM-200-25_052984) is an innovative educational tool designed to demonstrate the operation, diagnosis, and testing of common types of analog and digital speed and position sensors in a single, accessible setup. This trainer offers a safe and effective way to showcase the operating principles of various speed and position sensors commonly found in today’s cars and trucks, typically used for applications such as wheel speed, engine speed, and vehicle speed. With its benchtop design, students can clearly visualize sensor operation, make adjustments, and perform diagnostics and testing, all supported by an electronically controlled variable speed electric drive motor for realistic simulations from zero RPM through variable speeds.

Industry-Driven Features

• Analog (passive) inductive sensor with adjustable air gap to show effects on operation found in industry
• Digital Hall-Effect sensor essential for industry-standard training
• Radial and axial digital (active) magneto-resistive sensors (adjustable radial sensor to show effect on operation)
• 2mm sensor test receptacles for hookup of DVOM and Oscilloscope for real-world diagnostics
• Equipped with sensor disconnect switches for separate testing of both harness side and/or component side of sensor on essential industry topics
• Trainer features a bench top design that allows clear student visualization of sensor operation, adjustment, diagnosis and testing to develop key industry skills
• Electronically controlled variable speed electric drive motor
• 120V AC/DC & 5V power supply included
• Demonstrates full functionality of both analog (passive) and digital (active) speed and position sensors found in industry
• Electronically controlled variable speed drive motor allows sensor operation from zero RPM through steady and variable speeds
• Magneto-resistive magnetic strip sensor can detect instant movement of rotation or 0 kph/mph
• Allows student demonstrations of the diagnosis and testing of CKP (Crankshaft Position Sensors), CMP (Camshaft Position Sensors), VVT (Variable Valve Timing) sensors, ABS Wheel speed sensors (all types), RPM and Vehicle Speed sensors, Steering Wheel sensors and Hill Assist sensors

Included Courseware

• Complete curriculum and courseware

Space + Time Savings

• Trainer features a bench top design that allows clear student visualization of sensor operation, adjustment, diagnosis and testing

Safety Features

• The trainer provides a safe and effective method of demonstrating the operating principles of different types of speed and position sensors

Technical Specifications

• Dimensions: 22 x 22 x 6.75 inch (55.8 x 55.8 x 17.1 cm) / 24 x 24 x 13 inch (60.9 x 60.9 x 30 cm) with packaging
• Weight: 41 lb (18.6 kg) / 46 lb (20.9 kg) with packaging
• Power Requirements: 120VAC 15A circuit
• Op_05336 International Power Supply Option, allows the product to be used with a 220V power supply
