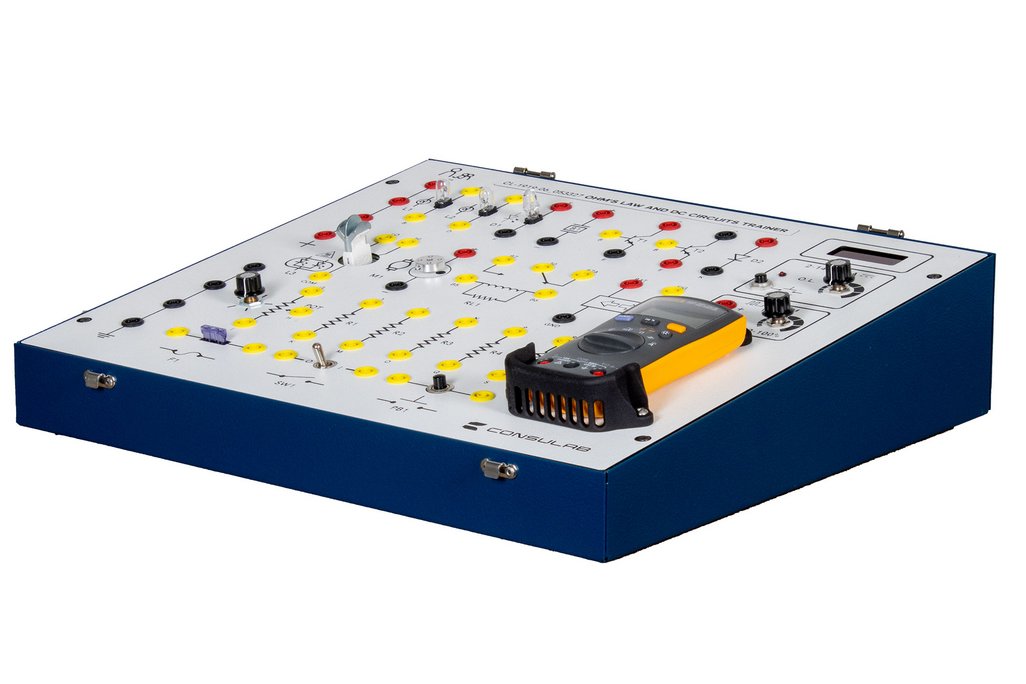

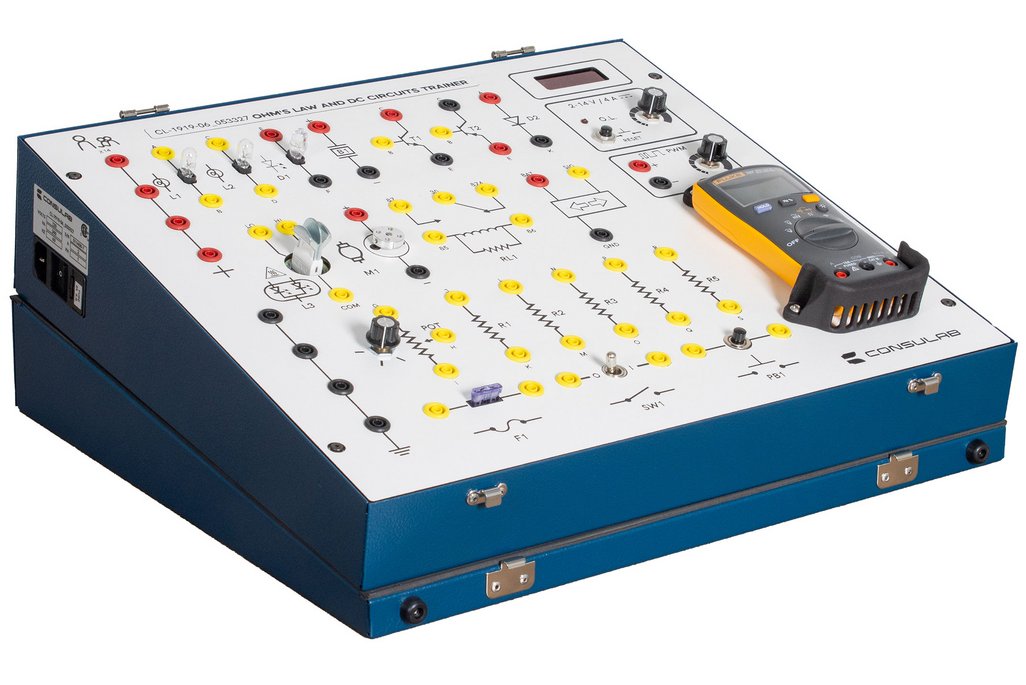

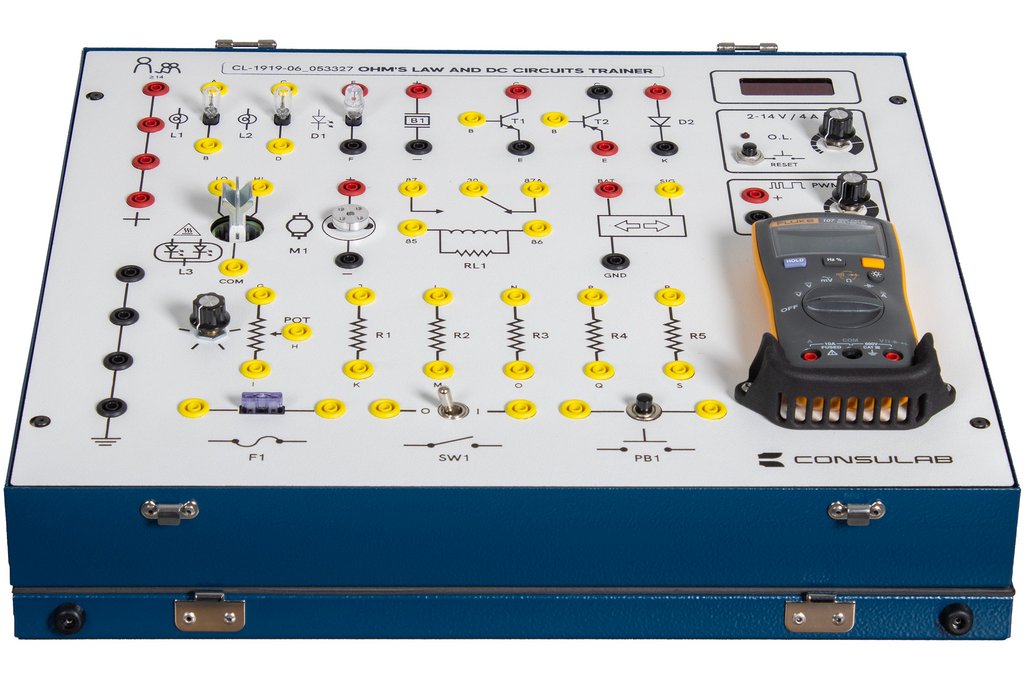

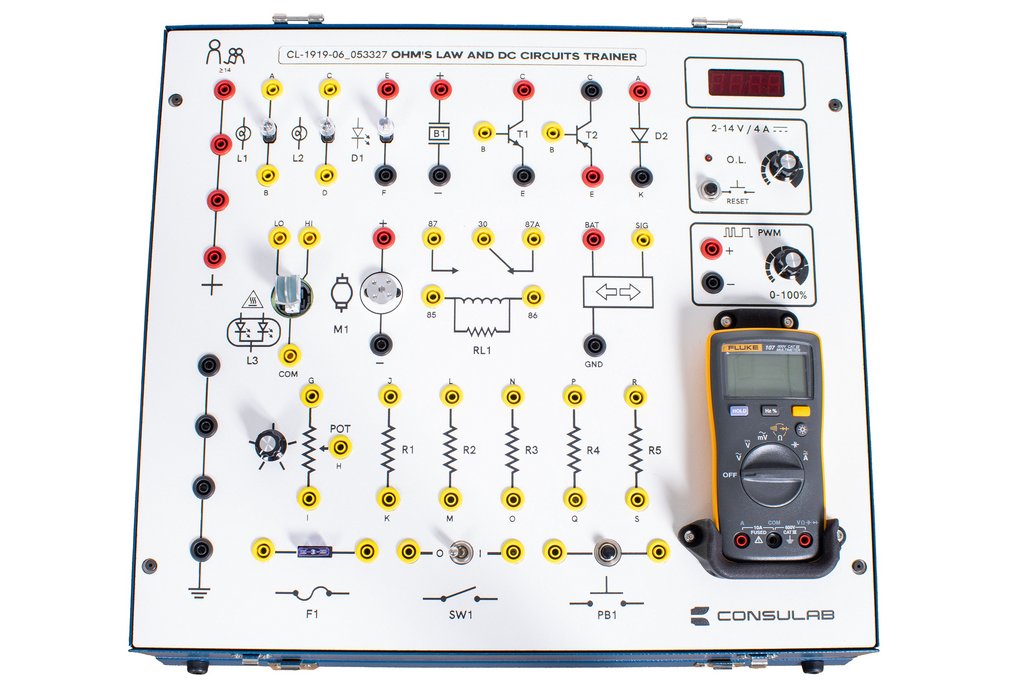

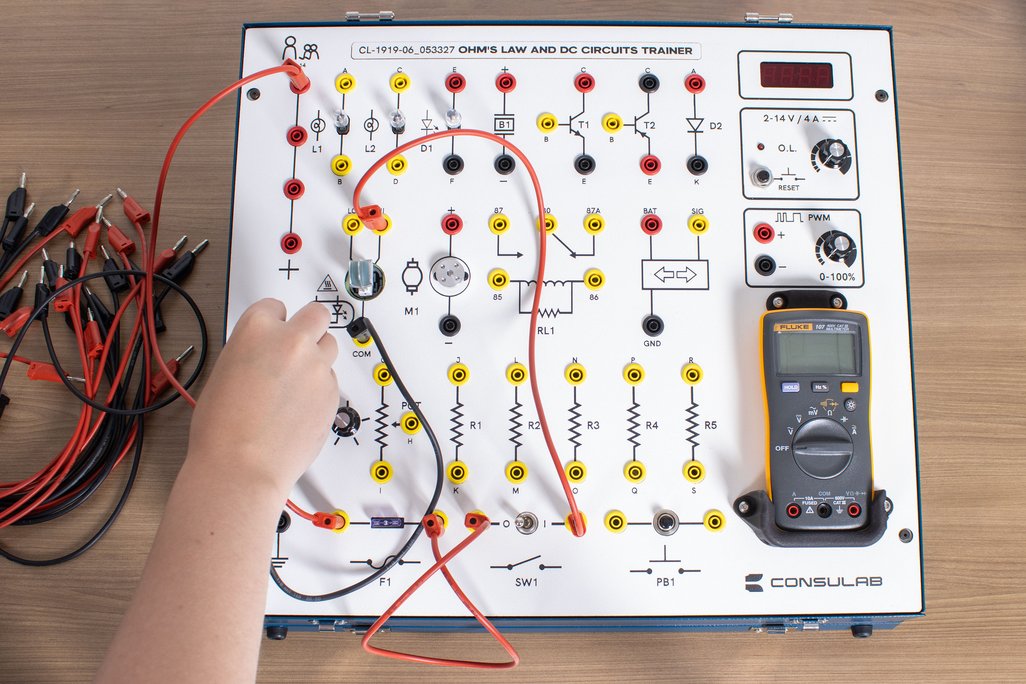

The Ohm’s Law + DC Circuits Training System (CL-1919-06_053327) is a self-contained educational learning system designed to assist instructors in teaching students basic electrical and electronic theory. It helps teach Ohm’s Law basics as well as demonstrating common electrical system components and circuit operation. A student project manual provides circuit construction and learning assignments designed to help students learn.

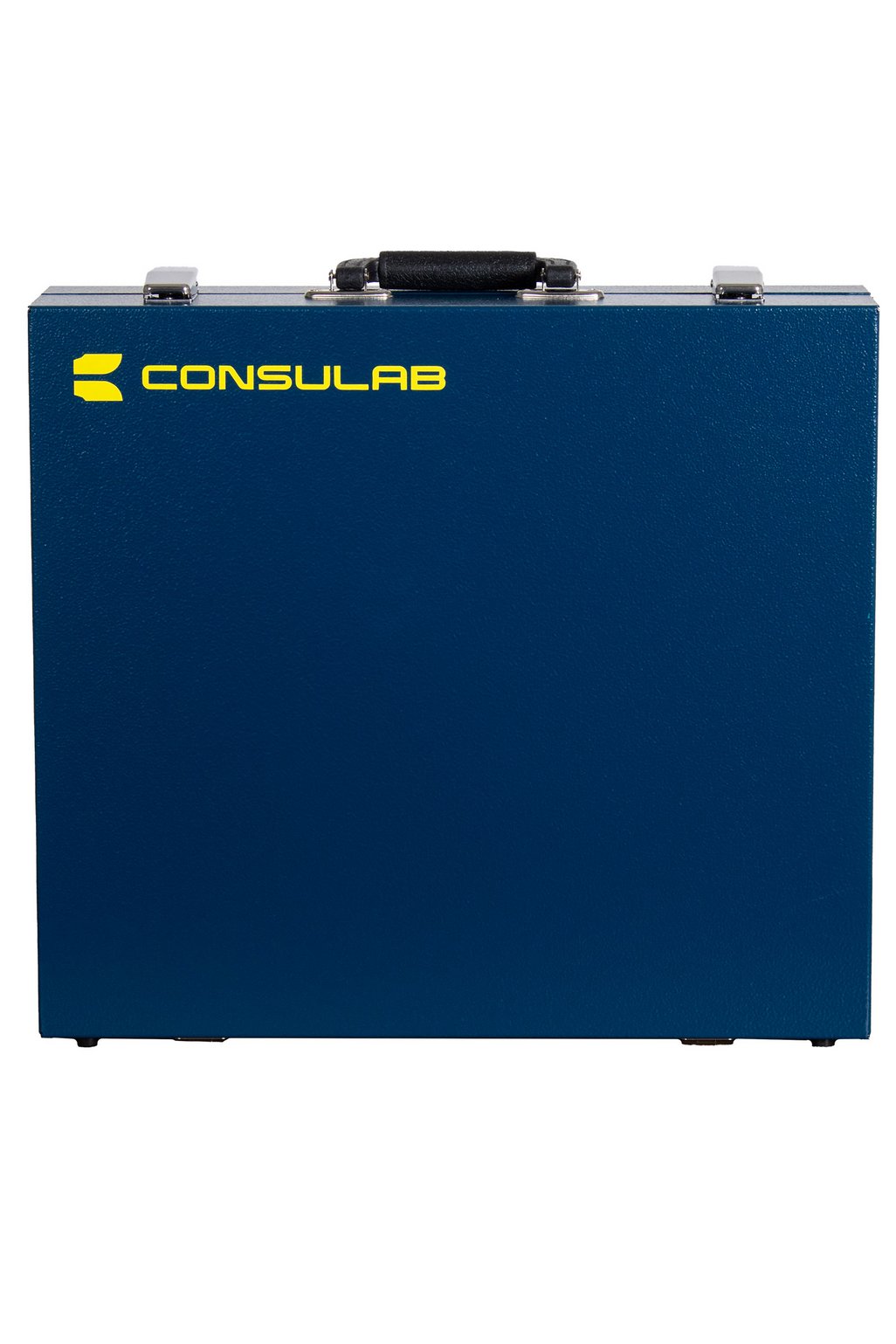

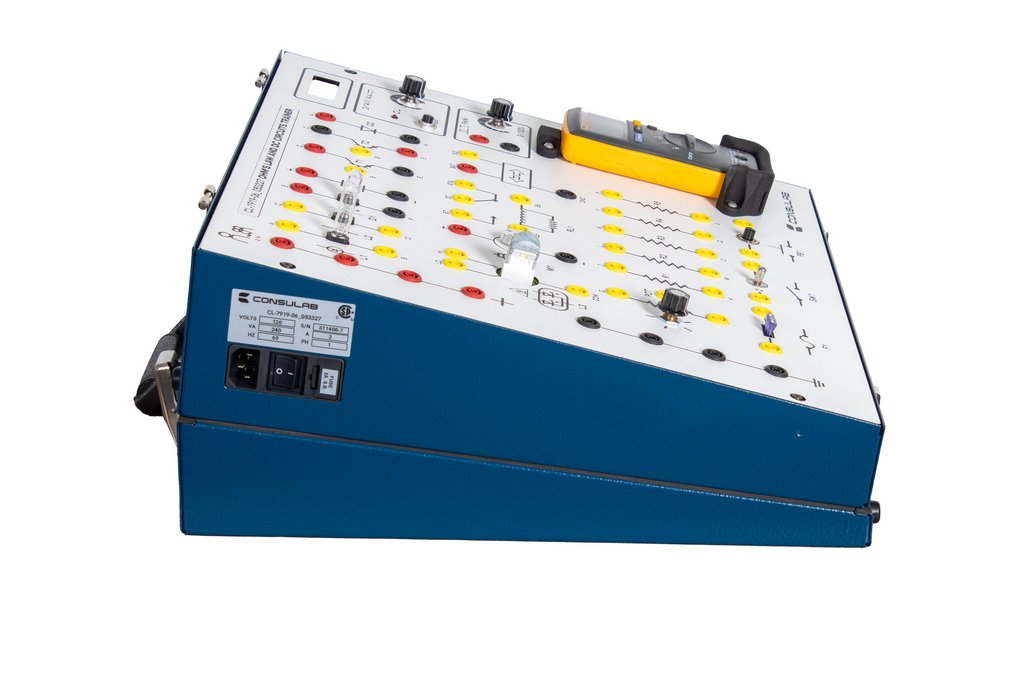

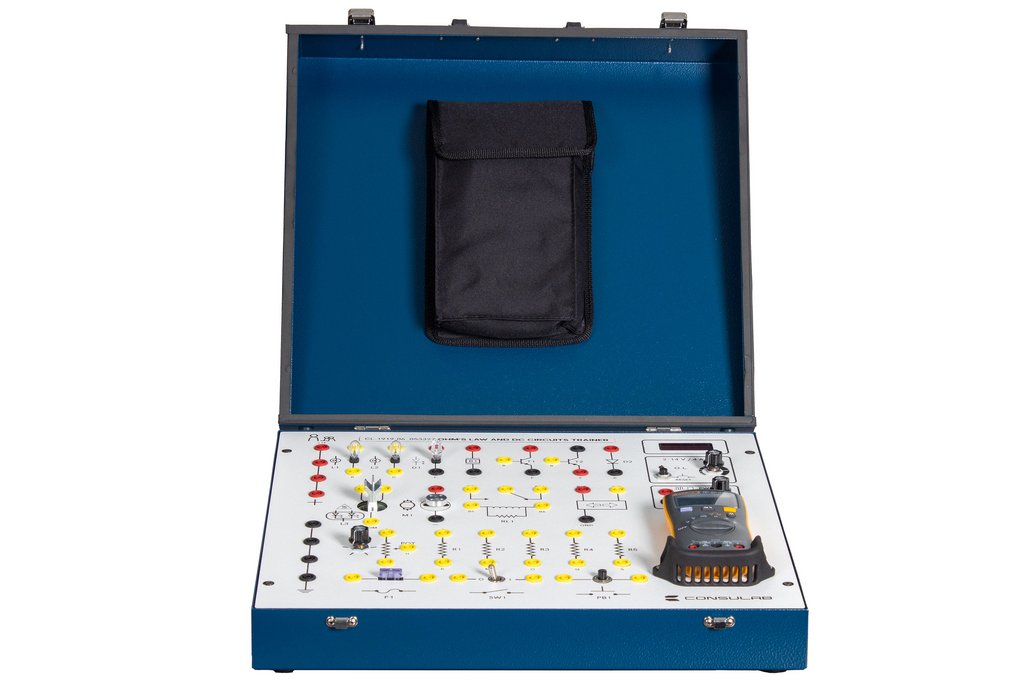

The trainer is protected with a removable metal cover. The case features a carrying handle and has internal storage for jumper test leads and power cord. This trainer has been certified by CSA Group, a Nationally Recognized Test Laboratory, to meet the applicable standards for quality and safety in North America. This product is certified for use by persons 14 years and older only. This certification applies to both Canada and the U.S.

Industry-Driven Features

• Built-in Fluke DMM for electrical measurements and diagnosis required by industry
• Adjustable 2KHz pulse width modulation generator (0-100%) to develop key industry skills
• Can be used to assist the instruction of operational theory of DC electrical/electronic circuits and components on essential industry topics
• ConsuLab draws on over 50 years of experience specializing in the automotive industry to create industry-driven training systems using OEM components adapted for safe, visible, hands-on education with fault insertion, enhancing students’ real-world troubleshooting skills and confidence. For more info: https://www.consulab.com/about/why-consulab

Certification Preparation

• Helps students learn to successfully perform many ASE tasks in Electrical/Electronic Systems (A6)

Included Courseware

• Comprehensive user’s manual with student activity assignments which cover basic electricity, Ohm’s Law principles, basic and advanced circuits
• Curriculum covers multi-meter set-up, use and interpretation, electrical component operation and DC circuit construction and operation
• Additional manuals available at no charge after trainer purchase at www.consulab.com
• Manual contains competence measuring tests to evaluate student comprehension

Space + Time Savings

• Self-contained package with built-in internally protected power supply
• Case features a carrying handle and has internal storage for jumper test leads and power cord

Safety Features

• Certified by CSA Group to meet applicable standards for quality and safety in North America
• Certified for use by persons 14 years and older only
• This certification applies to both Canada and the U.S
• All components internally protected from excessive current due to connection errors by students
• Removable metal cover

Technical Specifications

• 120VAC, 2-14VDC 4A regulated and protected power supply (adjustable)
• Dimensions : 16.75 x 18 x 5.25 inch (42.5 x 47.72 x 13.3 cm) / 22 x 20 x 10 inch (55.9 x 50.8 x 25.4 cm) with packaging
• Weight : 26 lbs (11.8 kg) / 29 lbs (13.2 kg) with packaging
