Educational Advantages

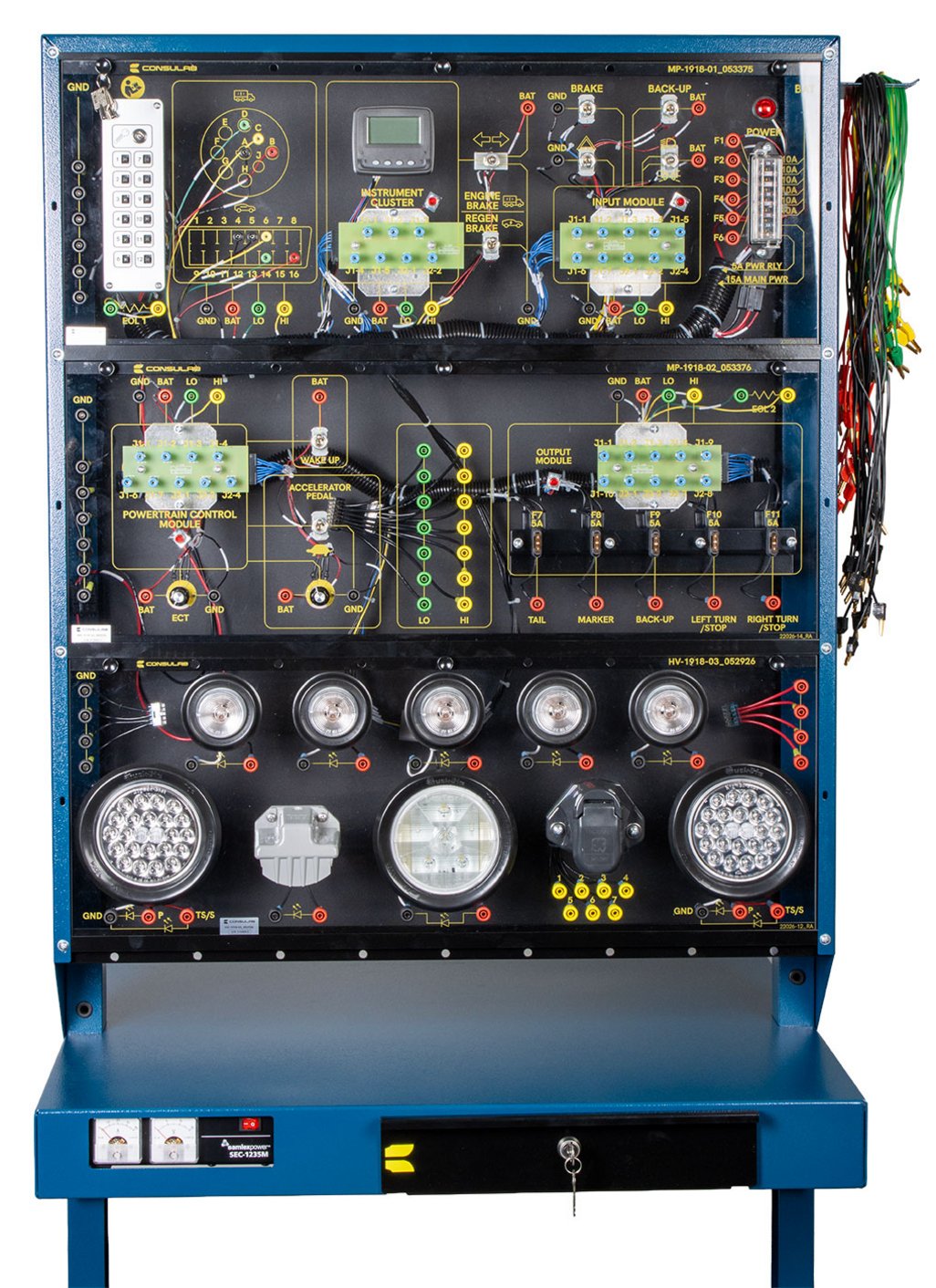

• The HV-1918-1D is a complete heavy vehicle lighting system with front, rear, brake, clearance, turn/hazard and backup lights with a 7 wire connector;
• Meets CSA/UL safety requirements;
• Most complete heavy vehicle lighting and accessory circuit trainer available;
• Modular LED lights (except headlights) that match on-highway truck components;

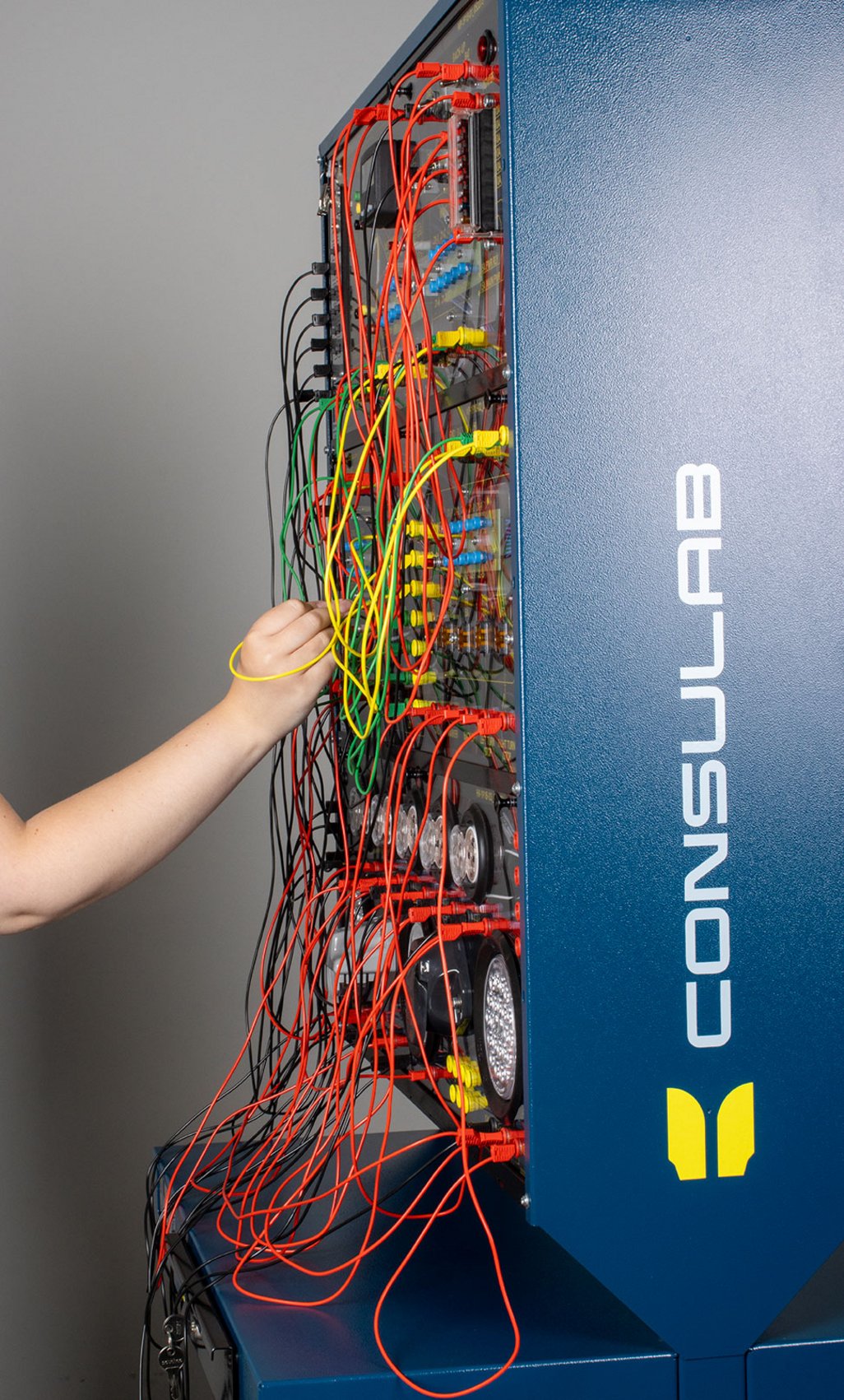

• Built to train up to four students at a time.

STANDARD MODELS

Features

• Available single sided (52929) or double sided (52930)
• Manual fault box with 2 faults for the following Front Lights Moduponent™ circuits:
  –  Left headlamp ground circuit,
  –  Left/right headlamp ground circuits;
• Manual fault box with 10 faults for the following Lighting Switch Controls Moduponent™ circuits:
  –  Headlight switch (2),
  –  Signal flasher (2),
  –  Backup light switch,
  –  Stop light switch,
  –  Ignition switch,
  –  Right turn signal indicator,
  –  Relay No. 3,
  –  Relay No. 4.

Contents:

• HV-1918-01 Front Lights Moduponent™ (52924) (2)
• HV-1918-02 Lighting Switch Controls Moduponent™(52925) (2)
• HV-1918-03 Rear Lights Moduponent™(52926) (2)
• HV-1918-08 Clearance Lights (52928) (2)
• HV-1918-12A Set of 89 jumper leads (52557) (2)
• Stand with lockable storage box (52438) (1)
• 12VDC Power Supply (52439) (2)
