The Engine Performance Training System (Hyundai GDI) (EM-140S-HY04) is an exciting new trainer designed for student-led learning through case studies using our new tablet-based ConsuLink™ Student Learning Platform (SLP). Students today thrive on tablet-based learning tools and will adapt to the SLP easily. This trainer is based on a functional G4FD 2012-2017 Hyundai Accent 1.6L GDI engine with manual transmission. The unit is easy to work on and all major components match OEM configurations to make the service information relevant to the trainer. This trainer offers the closest experience of the real thing engine trainer available in North America today. The EM-140S-HY04 comes with a fully functioning CAN Bus system for students to gain knowledge and experience operating and troubleshooting activities. Engine systems respond to inserted faults with real world symptoms, OEM DTC’s scan tool datastream changes and check engine light operation.

Industry-Driven Features

• Consulab draws on over 50 years of experience specializing in the automotive industry to create industry-driven training systems using OEM components adapted for safe, visible, hands-on education with fault insertion, enhancing students’ real-world troubleshooting skills and confidence. For more info: https://www.consulab.com/about/why-consulab

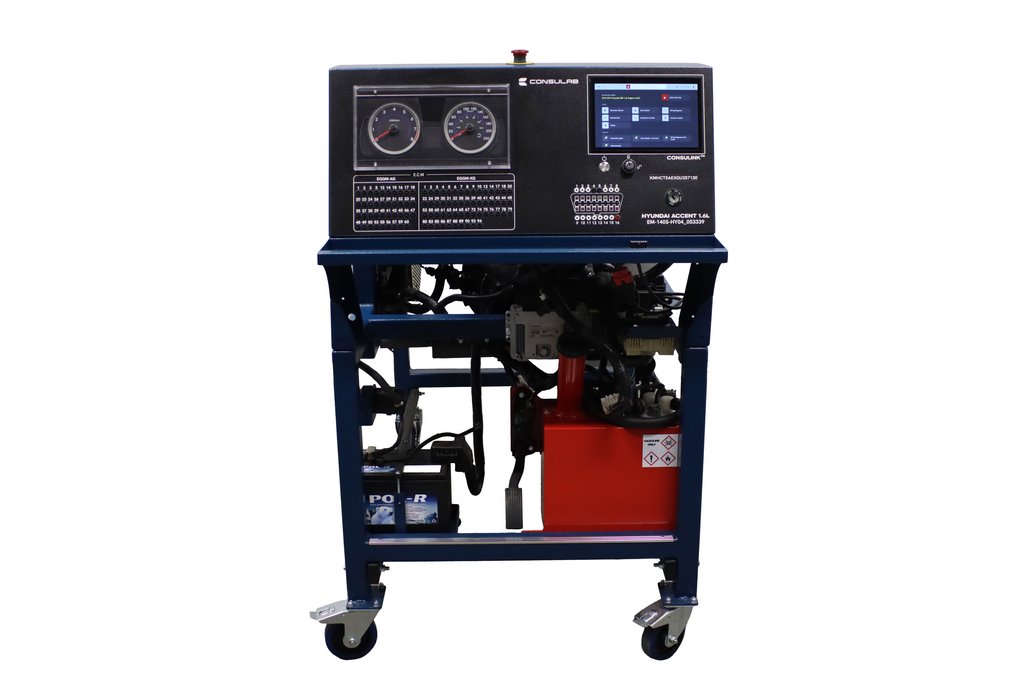

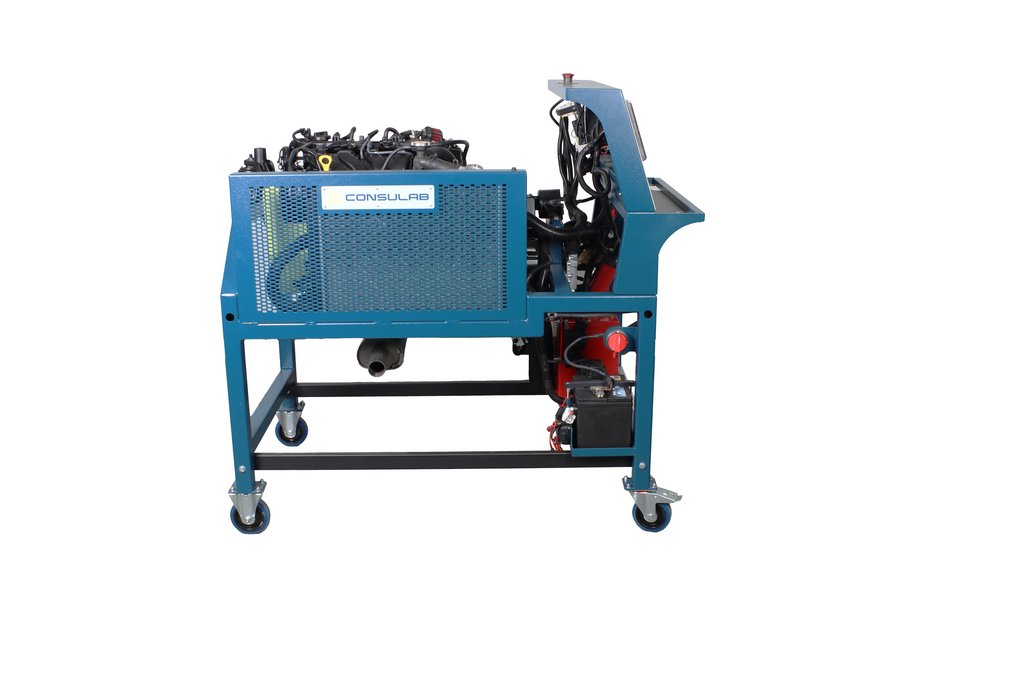

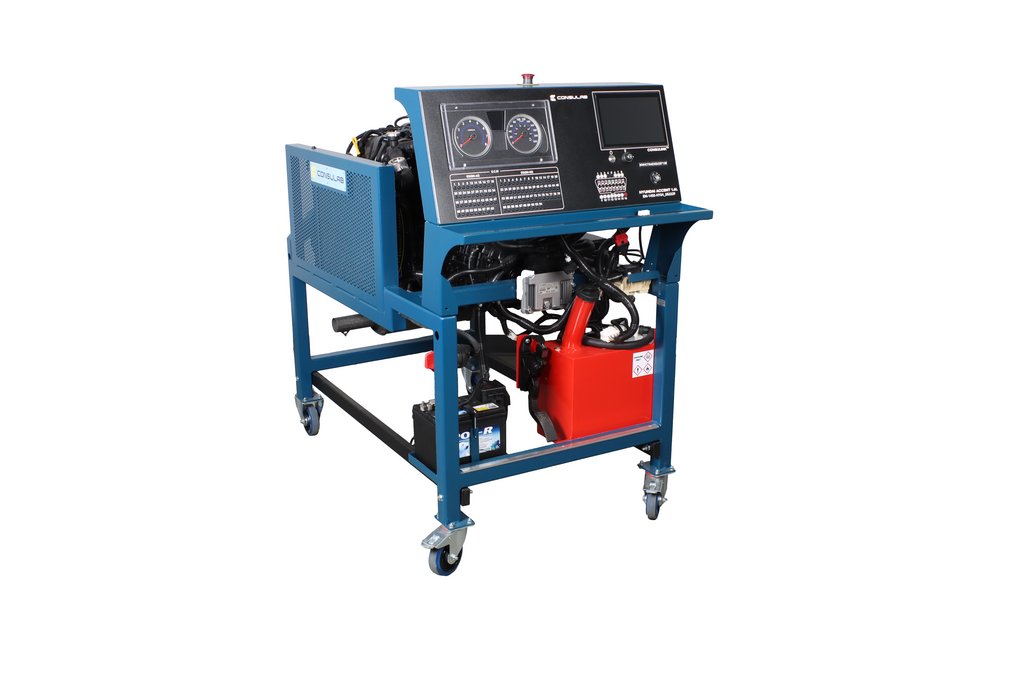

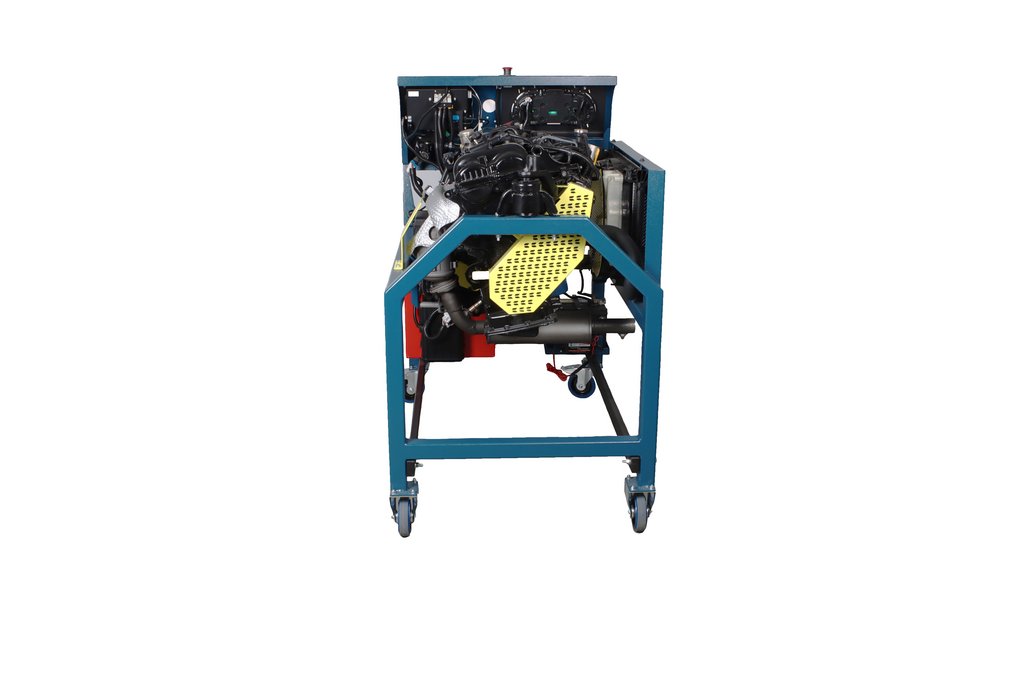

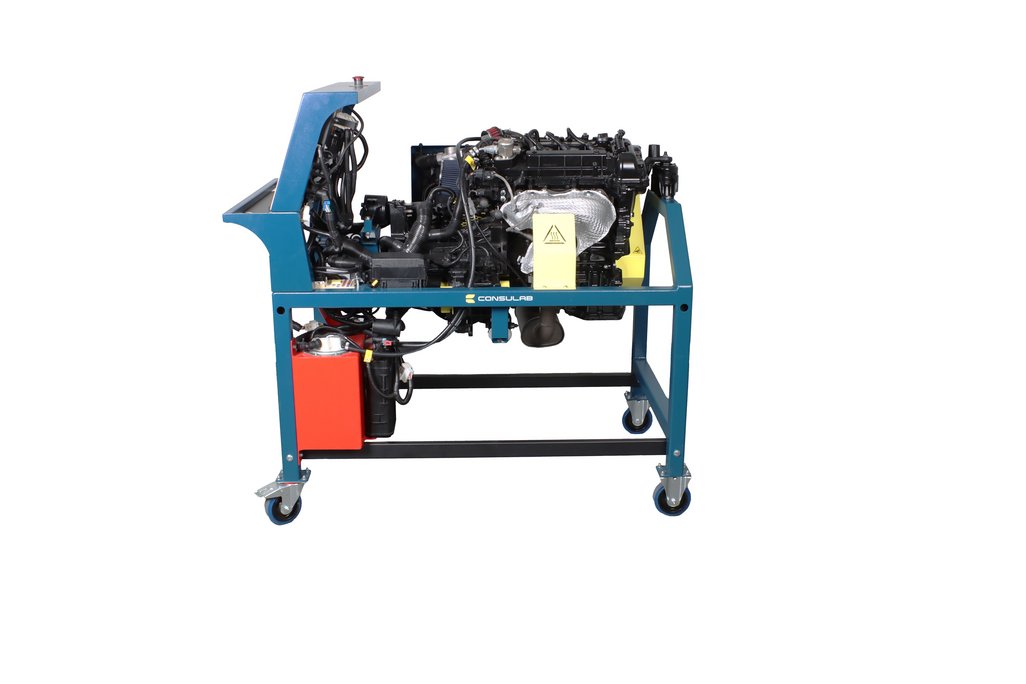

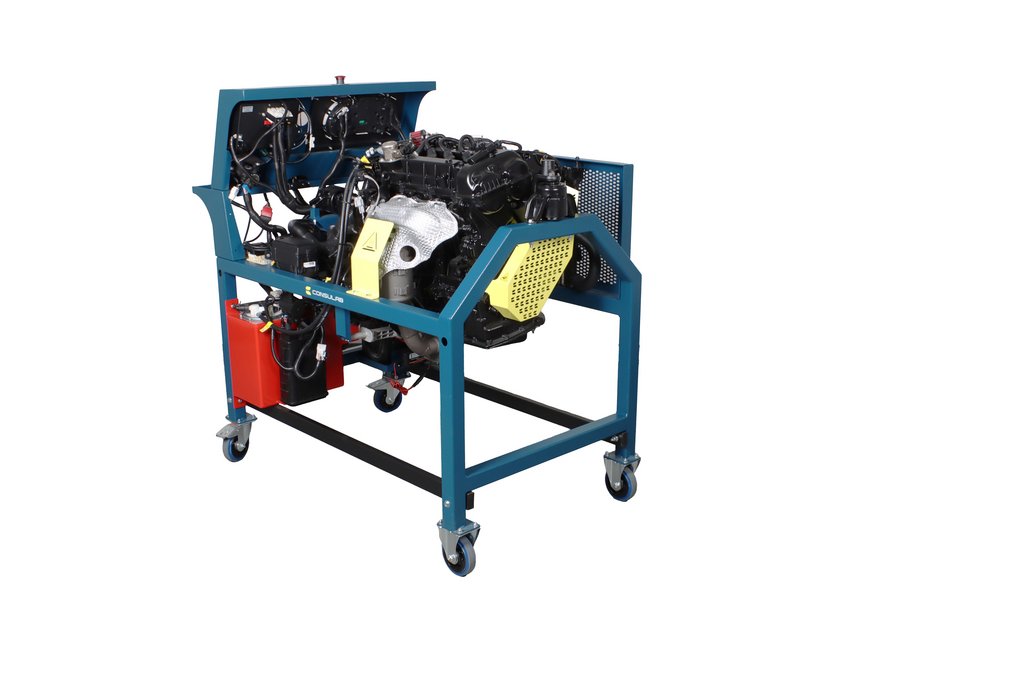

• Based on a functional G4FD 2012-2017 Hyundai Accent 1.6L GDI engine with manual transmission found in industry
• All major components match OEM configurations to make the service information relevant to the trainer
• Comes with a fully functioning CAN Bus system for students to gain knowledge and experience operating and troubleshooting activities required by industry
• Engine systems respond to inserted faults with real world symptoms, OEM DTC’s scan tool datastream changes and check engine light operation for real-world diagnostics
• OEM vehicle harness, electrical power distribution components, fuel pump, and auxiliary systems found in industry

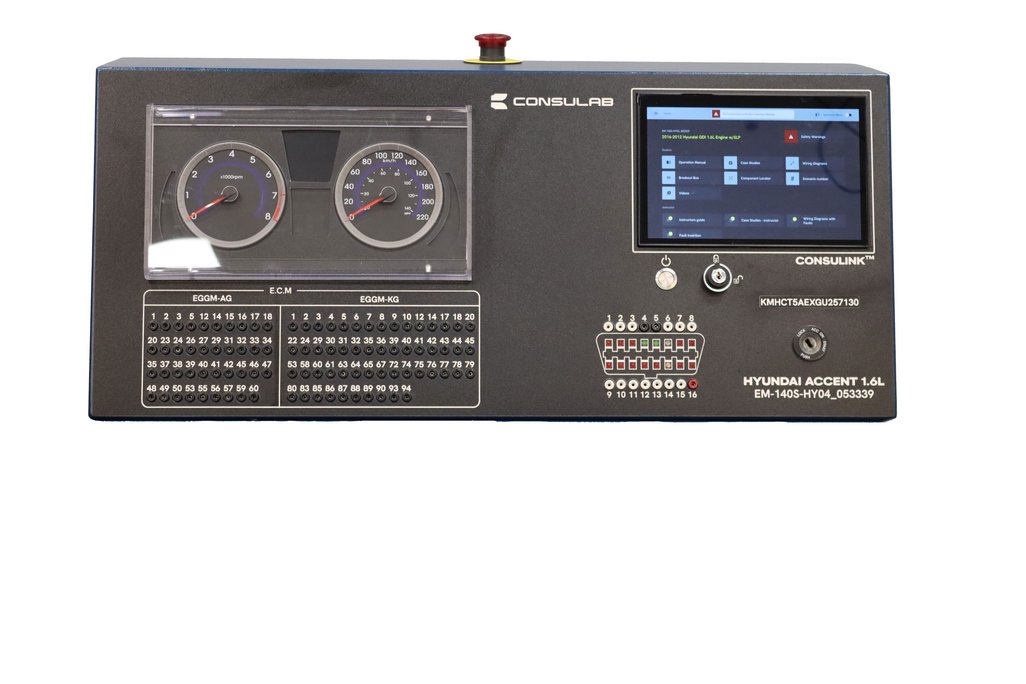

• OEM Instrument panel with all indicator lights
• PCM Break Out Box matching OEM pin identification with 2mm receptacles
• Original instrument panel
• OBDII data link connector with DLC Break Out Box and LED CAN Bus activity indicators
• OEM power distribution center with circuit protection
• PCM Break Out Box with OEM terminal identification and wire colors
• Totally functional engine with all OEM components

Certification Preparation

• Helps students learn to successfully perform many ASE tasks in Engine Performance (A8)

Included Courseware

• Over 50 student activities including instructor guides, case studies, fault insertion, diagrams, and built-in system schematics
• Self-contained total training package for engine diagnostics
• Facilitates student engagement with hands-on, self-paced education
• Depending on instructional styles, between 75-100 or more hours of instruction possible
• Built-in ConsuLink™ student interface tablet including product manual, component I.D., schematics, and instructor information
• Student Learning Platform with diagnostic case study scenarios and instructor information

ConsuLink Touchscreen

• Tablet-based ConsuLink™ Student Learning Platform for enhanced student engagement with interactive learning modules for engine performance and driveability systems
• Provides real-time data display, fault insertion capabilities, and guided diagnostic exercises
• ConsuLink™ Student Learning Platform tablet is equipped with security protocols to control access to student, instructor content and HDMI output

Space + Time Savings

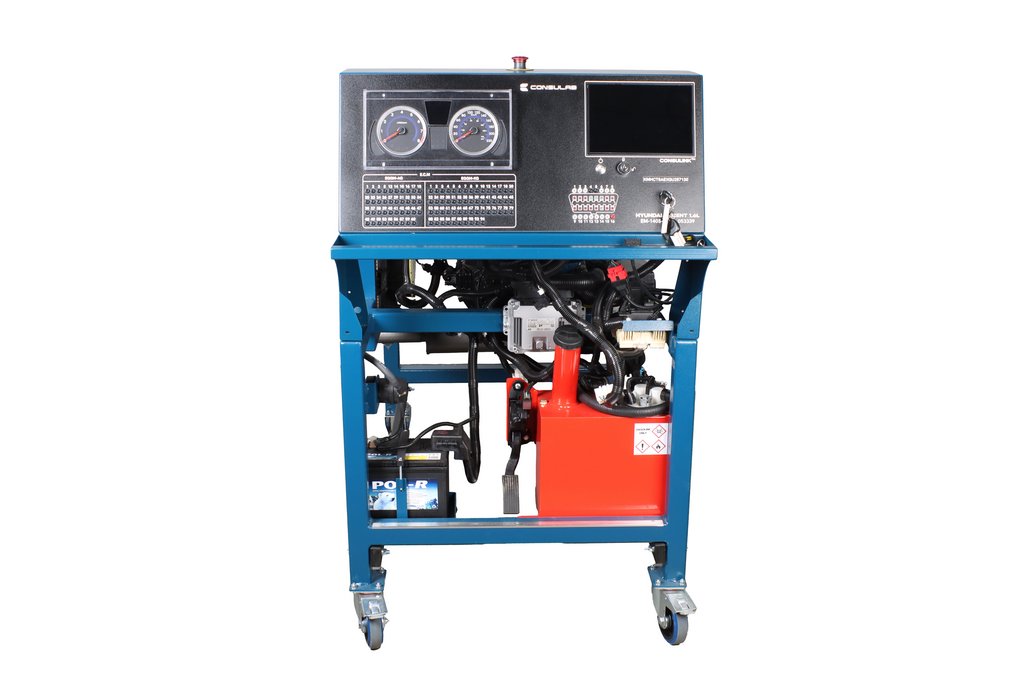

• Trainer is mounted on a mobile stand constructed of 2” (5cm²) tubular steel equipped with four 5” (12.7cm) phenol casters (2-fixed and 2-swivel w/locks) and mounted on a powder coated steel frame
• Functional on a single 120VAC 15A outlet
• Compact design fits through standard doorways, maximizing space utilization
• Scanner shelf for handheld tools

Safety Features

• Requires exhaust removal connection before operating

Technical Specifications

• Application: 2016-2012 Hyundai Accent GDI 1.6L, manual transmission
• Dimensions: 52 x 32 x 54.5 inch (132 x 81 x 138 cm) / 36 x 60 x 52 inch (90 x 150 x 130 cm) with packaging
• Weight: 800 lb (363 kg) / 885 lb (401 kg) with packaging
• DLC Break Out Box with robust 2mm test pins and LED indicators for all 16 pins of a standard OBDII DLC
• Coolant flow sight glass
