A/C TRAINER with H-BLOCK (TXV)

EM-2000-HB_053094

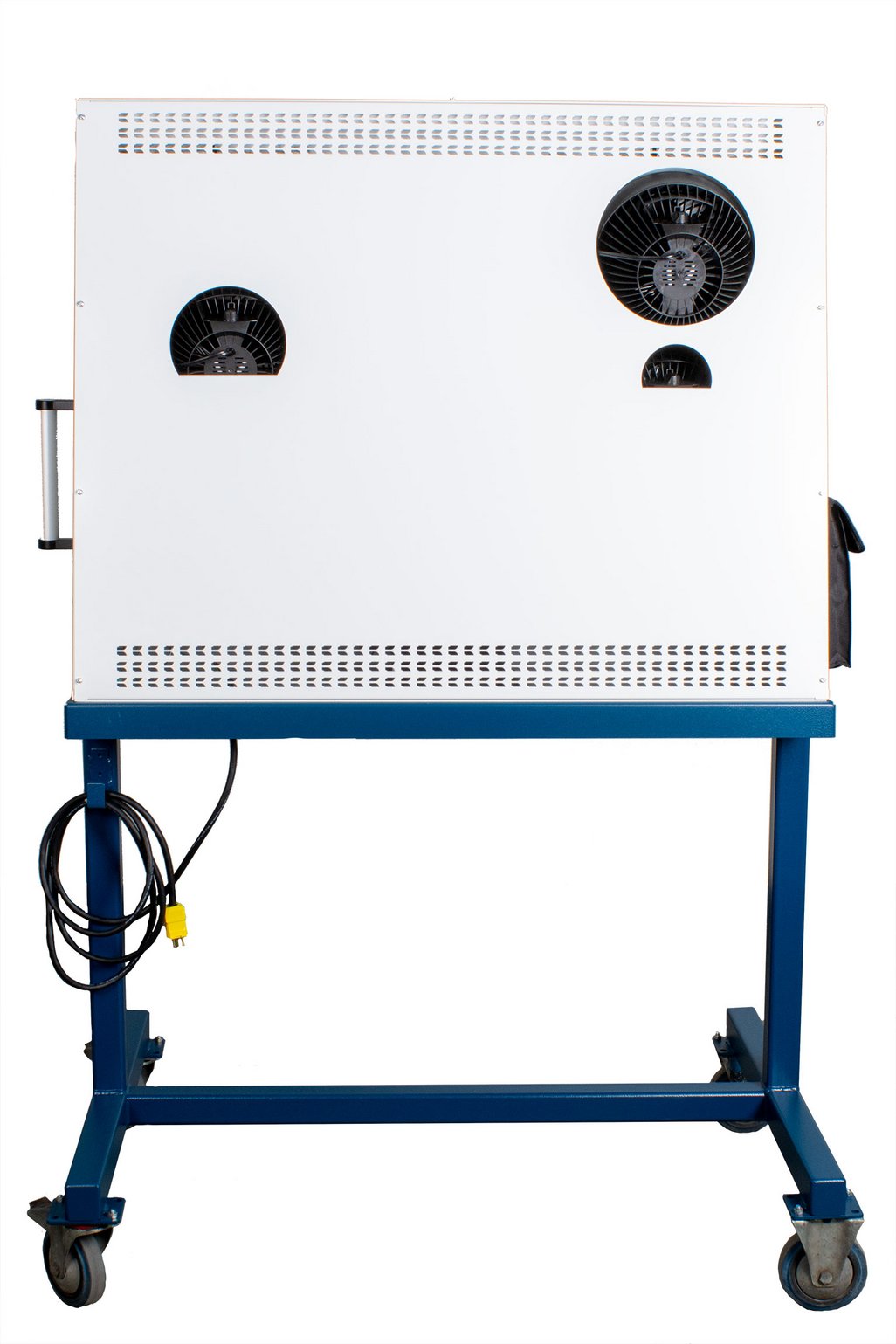

The ConsuLab EM-2000-HB Air Conditioning trainer is a complete A/C system with unique features designed to enhance the instruction of air conditioning physics. The trainer uses the H-Block TXV design of refrigerant flow control. The trainer uses common automotive components and can be used in both classroom and shop environments. The trainer utilizes a hermetically sealed and internally protected compressor. Operates on 120V 15A 60Hz circuit.

From Our Partners at

DESCRIPTION

EDUCATIONAL ADVANTAGES:

  • Trainer has all major components required for an automotive air conditioning system using the H-Block TXV system.
  • Fully operational with typical component layout and organization.
  • Clear sight glasses provide clear understanding of the H-Block (TXV) air conditioning refrigeration cycle.
  • Allows student observation of refrigerant changes of state (liquid/vapor) at the receiver/drier, evaporator and condenser.
  • Trainer can be connected to any A/C Recycling/Recovery equipment using R134a service ports.
  • Allows visual inspection of the role and operation of the H-Block (TXV) and receiver/drier.
  • Provides pressure and temperature measurement displays of evaporator and condenser.
  • Allows the introduction of system restrictions and blockages for diagnostic learning.
  • Adjustable fan speeds for demonstrations of typical performance problems for evaporator and condenser.
  • Removable magnetic component identification labels and refrigerant flow arrows for student learning.
  • Equipped with high pressure cut-out switch, evaporator deicing switch and internal compressor protection.
  • High and low side ball valves can be adjusted to demonstrate various system restrictions resulting in abnormal operation.
  • Trainers condenser, evaporator and compressor cycling switches can be adjusted to demonstrate various abnormal symptoms.



FEATURES:

  • OEM R134a service ports.
  • High and Low side A/C pressure gauges.
  • Adjustable temperature control switch for evaporator temperature levels.
  • Digital thermometers (4) at inlet and outlet of evaporator and condenser.
  • Internally protected hermetically sealed A/C compressor.
  • A/C compressor has manual starter with internal thermal protection.
  • High pressure (300psi) safety switch shuts off compressor.
  • Adjustable 3-speed evaporator (1) and condenser (2) fans.
  • Cycling switch bypass toggle switch.
  • Stainless steel condensate drip pan with drain.
  • Power “ON” indicator light.
  • Removable magnetic component name and refrigerant flow arrow labels.
  • Operation Manual and Curriculum with student assignments included.
