Tesla Model 3 Training System
EV-601-TS_053322
The EV-601-TS_053322 ALL EV iDEV training car by ConsuLab is not just a training aid, it’s an actual Tesla Model 3 training car visually displayed for maximum learning! All major components are identified in their actual location, most have been exposed (cutaway) in a way that is not possible on an operating vehicle, this helps attain a better understanding of their internal components and workings. And since the Model 3 represents over 60% of all EVs on the road today, this is a great place to start your students EV diagnostic journey.
From Our Partners at ConsuLab
DESCRIPTION
EDUCATIONAL ADVANTAGES
- Visual identification of BEV components
- Volt-meters and ammeters located at several key components
- LED strips indicate paths of electrical energy and coolant flow
- Location of security loops for emergency response personnel
- Functional electric park brake
- Functional electric-assist power steering

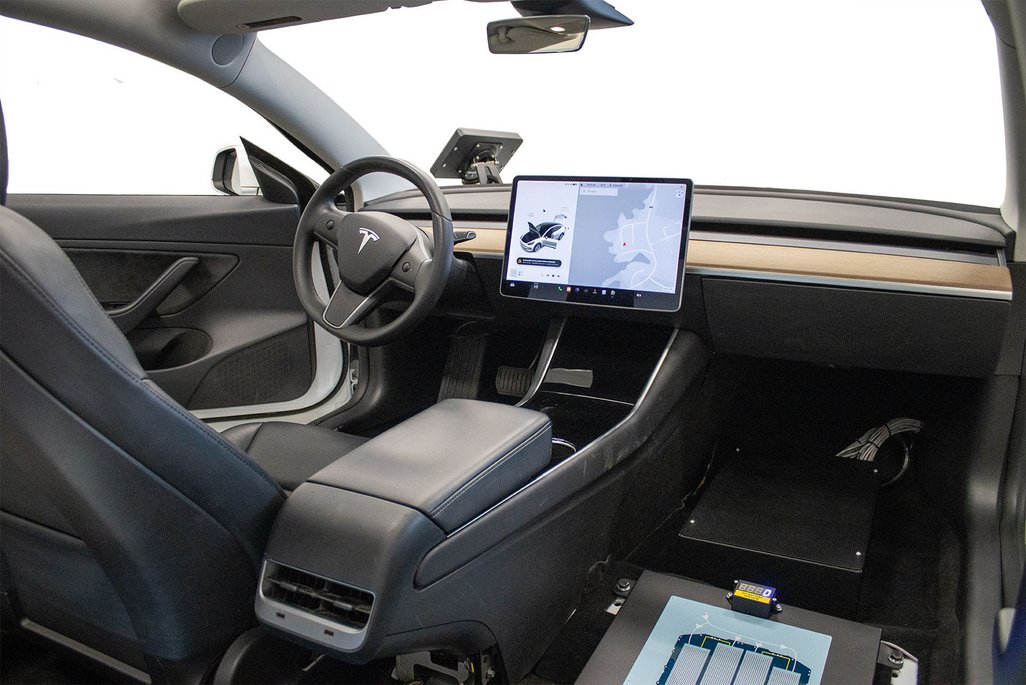

- Infotainment screen allows functionality
- How to enter and exit the vehicle without keys
- Testing of components with an insulation tester
- CAN Bus communication
FEATURES
- Safety is maximized and emphasized as there is no DC high voltage present on this trainer.

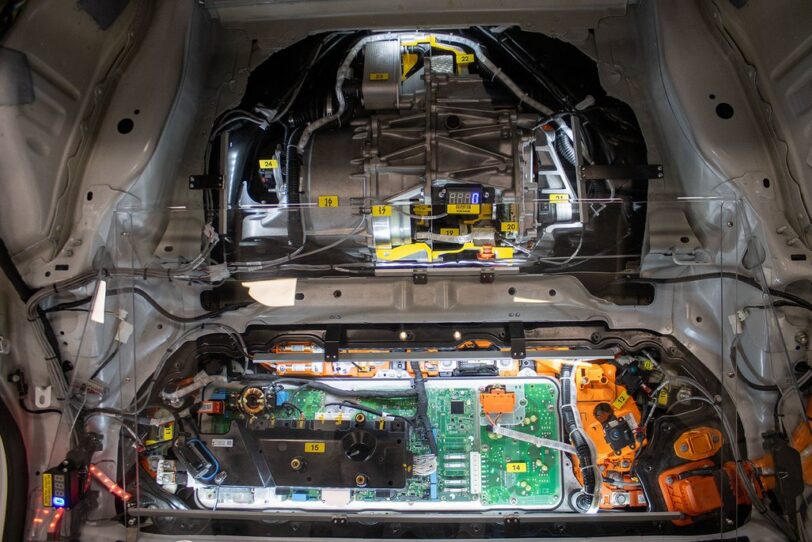

- Rear floor above the motor/inverter unit
- Penthouse cover removed/cutaway and protected by Plexiglas
- Motor/inverter cutaways showing 3-phase power into the motor, cooling passages, rotor,
- stator, and inverter.
- Includes complete curriculum developed by our team with over 40 hours of student activities
- The product is a standard Tesla Model 3 unibody, without the following: the hood, trunk, doors, front fenders, roof, windscreen, rear glass, high voltage battery cells. It does contain the following: headlights, taillights, and all exterior lights, battery case
APPLICATION
- Tesla Model 3 unibody
