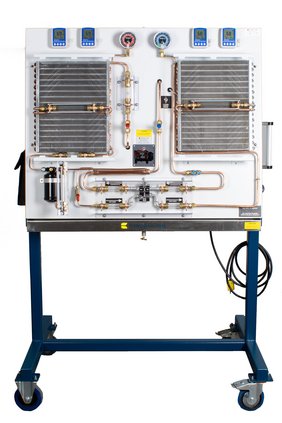

The A/C System Training System with H-block (EM-2000-YF) is a complete R1234yf air conditioning trainer designed to enhance the instruction of air conditioning physics. This fully operational trainer uses the H-Block TXV design with R1234yf flow control and common automotive components for realistic hands-on training that can be used in both classroom and shop environments. It features a hermetically sealed and internally protected compressor along with clear sight glasses that allow students to observe refrigerant changes of state at the receiver/drier, evaporator, and condenser while providing pressure and temperature measurements exactly as technicians encounter in real-world service.

Industry-Driven Features

• Trainer has all major components required for an automotive air conditioning system using the H-Block TXV system
• Fully operational with typical component layout and organization
• Trainer can be connected to any A/C Recycling/Recovery equipment using R1234yf ports
• Clear sight glasses provide clear understanding of the H-Block (TXV) air conditioning refrigeration cycle
• Allows student observation of refrigerant changes of state (liquid/vapor) at the receiver/drier, evaporator and condenser
• Allows visual inspection of the role and operation of the H-Block (TXV) and receiver/drier
• Provides pressure and temperature measurement displays of evaporator and condenser
• Is equipped with an Internal Heat Exchanger (IHX) to increase subcooling of the refrigerant
• Allows the introduction of system restrictions and blockages for diagnostic learning.
• Adjustable fan speeds for demonstrations of typical performance problems for evaporator and condenser
• Removable magnetic component identification labels and refrigerant flow arrows for student learning
• Equipped with high pressure cut-out switch, evaporator deicing switch and internal compressor protection
• High and low side ball valves can be adjusted to demonstrate various system restrictions resulting in abnormal operation
• Trainers condenser, evaporator and compressor cycling switches can be adjusted to demonstrate various abnormal symptoms
• High and Low side A/C pressure gauges
• Adjustable temperature control switch for evaporator temperature levels
• Digital thermometers (4) at inlet and outlet of evaporator and condenser
• Internally protected hermetically sealed A/C compressor
• A/C compressor has manual starter with internal thermal protection
• High pressure (300psi) safety switch shuts off compressor

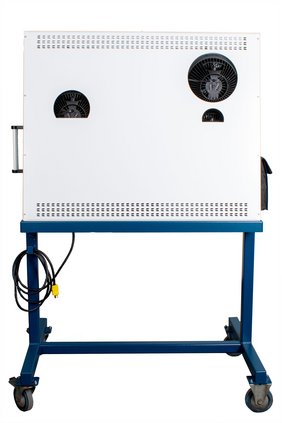

• Adjustable 3-speed evaporator (1) and condenser (2) fans
• Cycling switch bypass toggle switch
• Stainless steel condensate drip pan with drain
• Power “ON” indicator light
• Removable magnetic component name and refrigerant flow arrow labels
• Operation Manual with student assignments included.

Certification Preparation

• The training system helps students learn to successfully perform many ASE tasks in the Heating and Air Conditioning test area (ASE A7).

Included Courseware

• Answer Keys
• Instructor Manual
• Operation Manual

Space + Time Savings

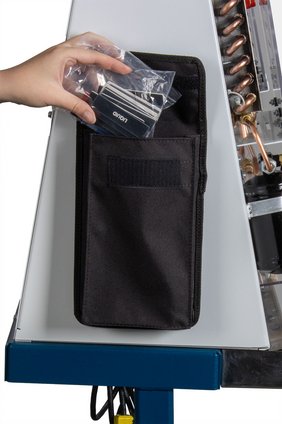

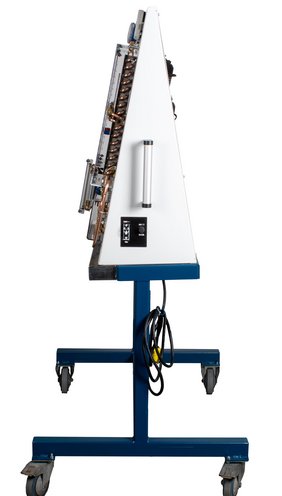

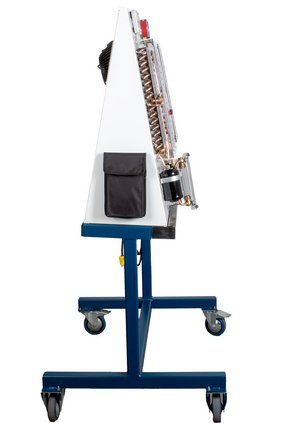

• Sturdy powder coated metal stand with two locking swivel and two fixed casters

Safety Features

• High pressure (300 psi) safety switch shuts off compressor
• Internally protected hermetically sealed A/C compressor with manual starter and internal thermal protection
• High pressure cut-out switch, evaporator deicing switch and internal compressor protection

Technical Specifications

• Operates on 120V 15A 60Hz circuit
• Refrigerant: R1234yf (28 oz or 1.75 lb) (794 g)
• Refrigerant oil: Ester 100 ISO
• OEM R1234yf ports
• High and Low side A/C pressure gauges
• Adjustable temperature control switch
• Digital thermometers (4) at inlet and outlet of evaporator and condenser
• Hermetically sealed internally protected A/C compressor
• A/C compressor manual starter with internal thermal protection
• High pressure (300 psi) safety switch
• Adjustable 3-speed evaporator (1) and condenser (2) fans
• Cycling switch bypass toggle switch
• Stainless steel condensate drip pan with drain
• Power “ON” indicator light
• Removable magnetic component name and refrigerant flow arrow labels
• Dimensions: 46” x 30” x 67” (116.8 x 76.2 x 170.1 cm)
• Weight: Weight: 250 lb (113.6 kg) / 395 lb (179.5 kg) (w/packaging)
• Sturdy powder coated metal stand with two locking swivel and two fixed casters
