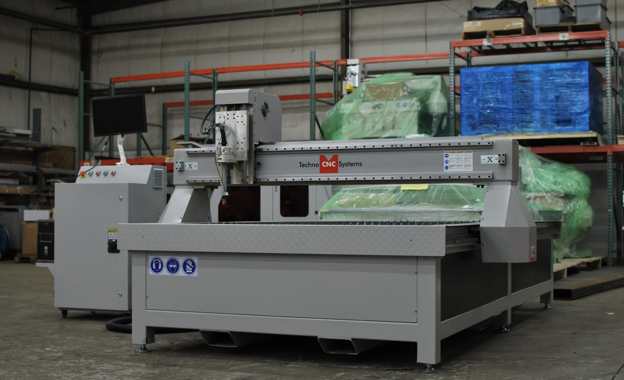

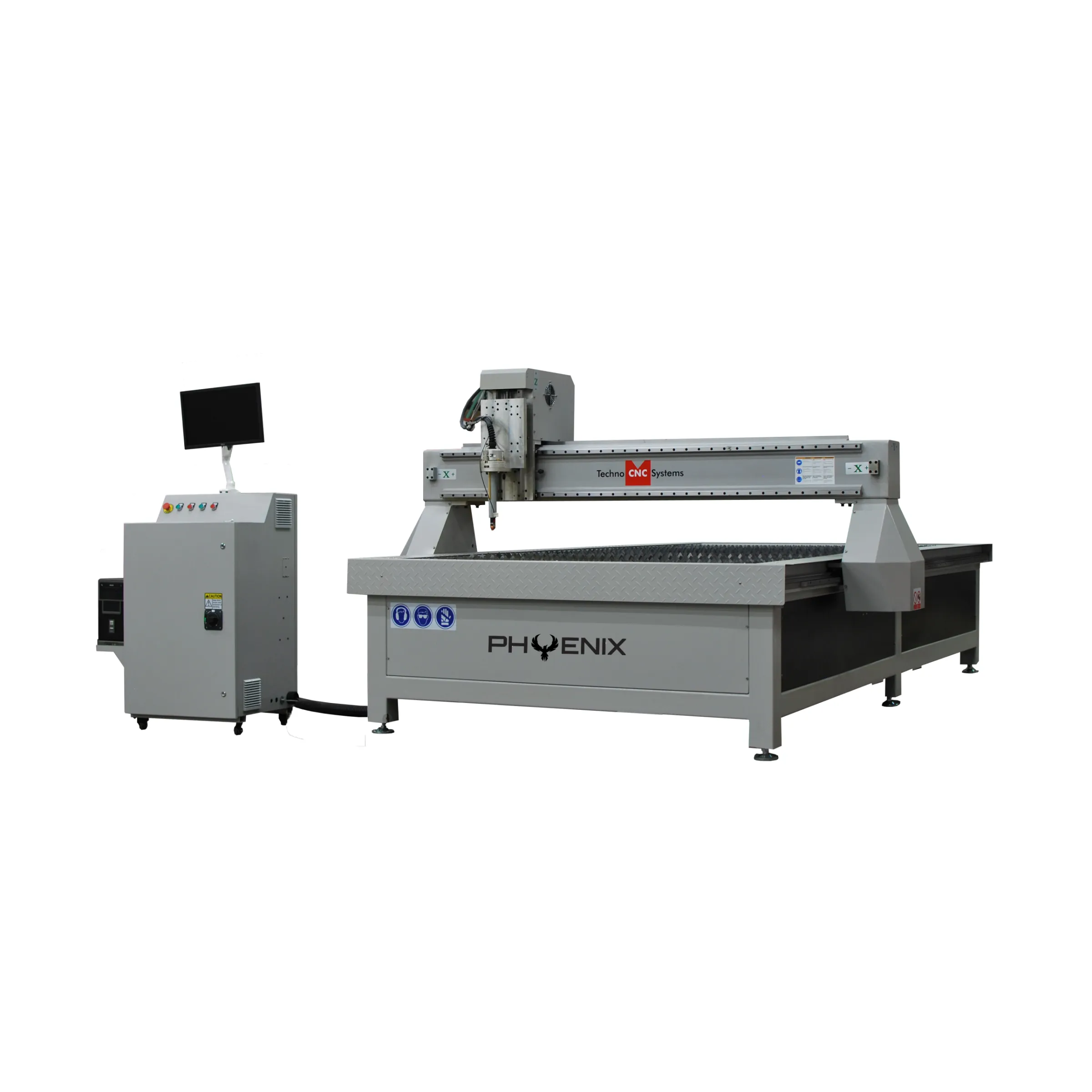

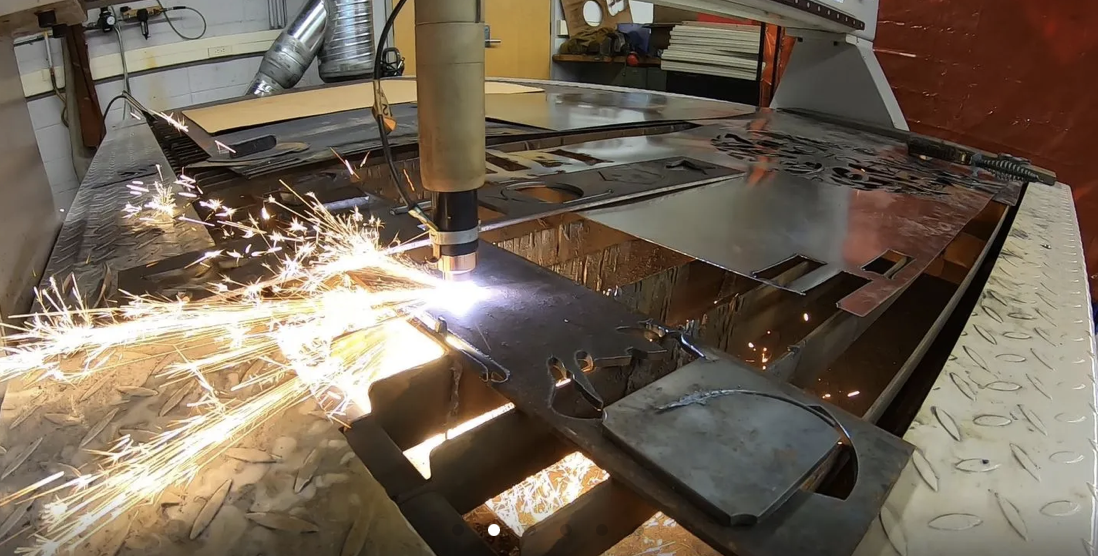

The Phoenix Series CNC Plasma Cutter is all steel constructed, providing a rigid foundation to support heavy plate loads and deliver ultra-smooth plasma cutting results. The Phoenix Series CNC Plasma Cutter can be equipped with a variety of plasma torch power supplies, each one capable of cutting different material thicknesses. The gantry height is 7-1/2″, which provides maximum flexibility to cut sheet goods and larger or taller welded assemblies, if desired. The Phoenix Plasma provides the user a choice between a water table or down draft smoke evacuation. The machine includes stainless steel water trays that can be removed if the user chooses downdraft smoke evacuation. The machine drive motors are powerful NEMA 34 sized high speed stepper motors, directly coupled to a precision gearbox assembly and helical pinion for a direct drive advantage. This provides optimum power, speed, and accuracy when cutting thin sheet metal or thicker plate stock. The plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system. The Phoenix Plasma has a PC based industrial controller with a Windows 10 operating system and uses an Ethernet connection for high-speed communication and uninterrupted processing. The system interface is easy to learn, easy to use, and makes the machine operation simple for instructors and students. No other machine on the market includes all of these features and capabilities.
Featured List

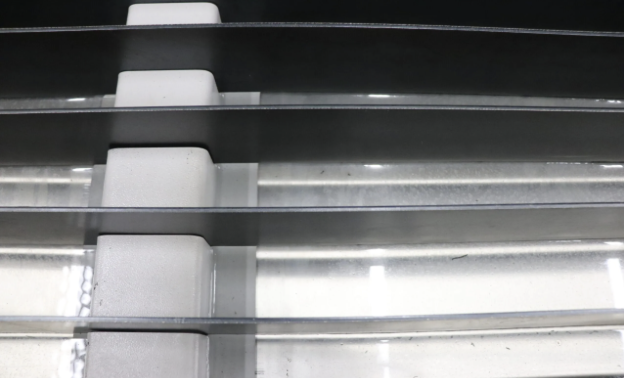

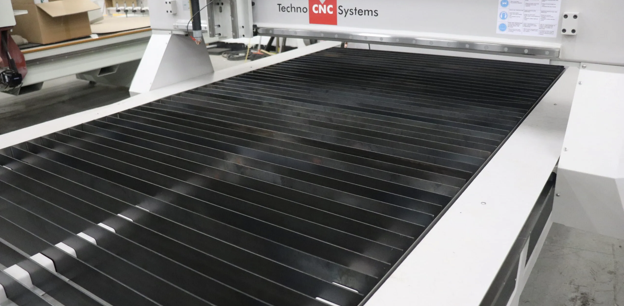

Steel Slats The Phoenix Series steel slats provide the best part cut quality reducing slat slag or weld to part that can effect contact edge finish.

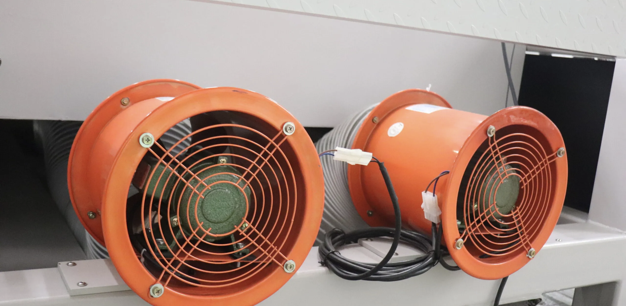

Down Draft Exhaust System The Phoenix Series provides dual fans for downdraft table. Each fan draws 250 CFM which assure a power smoke evacuation.
Gantry The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.
Water Table Tray The Phoenix Series provides the best of both worlds, giving the user the choice to use downdraft smoke evacuation or water table. The Phoenix Series provides stainless steel trays, when filled with water will absorb about 90% of the smoke generated from the cutting.

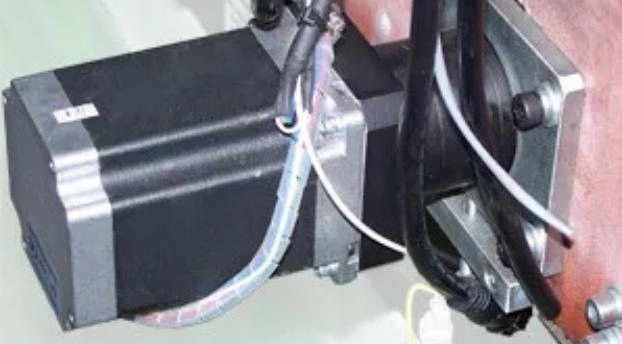

Motors The Phoenix Plasma Cutter utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.

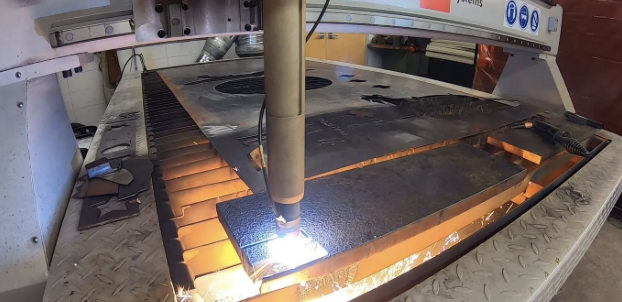

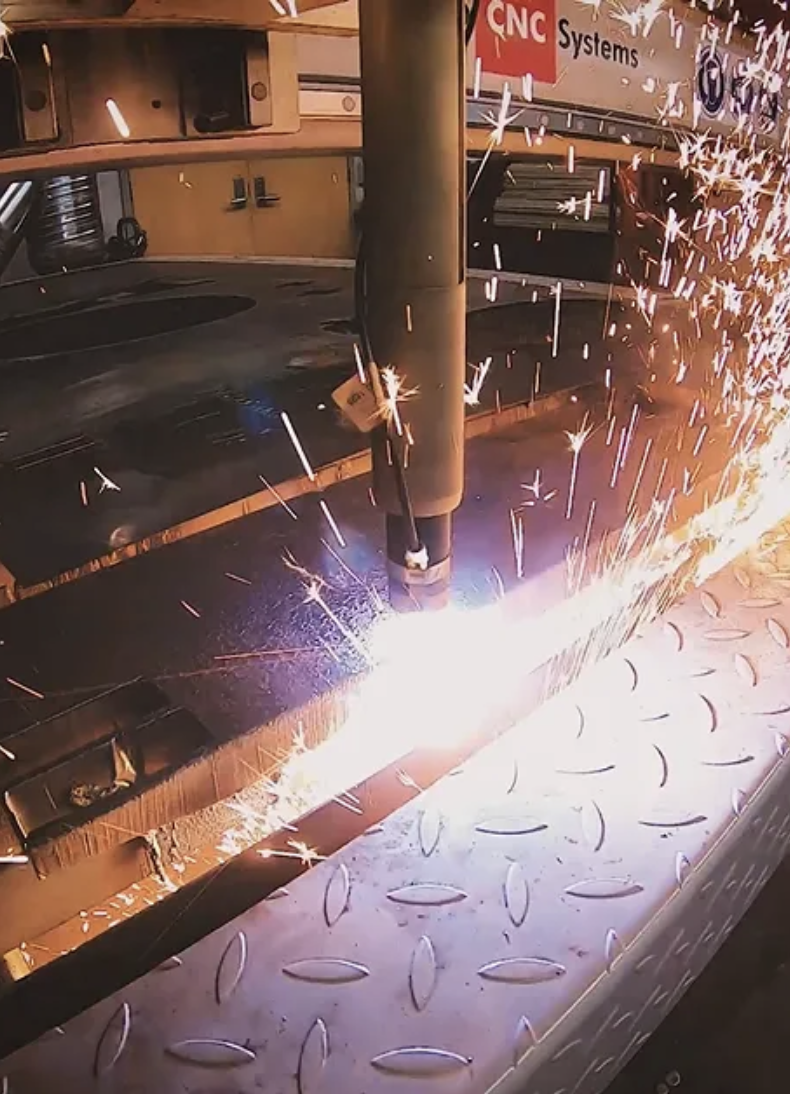

Electronic Torch Breakaway The Phoenix plasma torch is cradled in an electronic, automatic, torch breakaway module, using a real time CNC torch height control system.

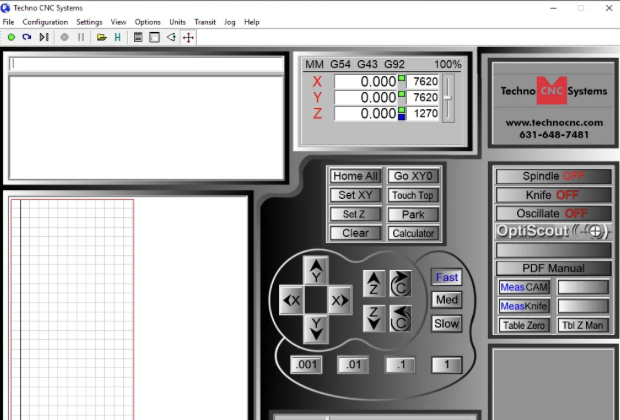

Controller The WinCNC interface is a controller system with step jog for fine incremental control, start, stop and pause buttons, single button for safety clearance position, absolute and relative coordinates control, and more.

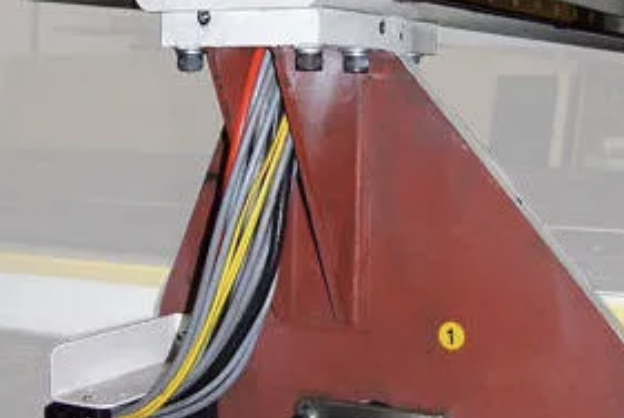

Gantry Uprights The gantry uprights are cast iron with heavy duty gussets formed into the casting. Each support is machined for housing the various drive assemblies including motors, bearings, belts, and wiring harnesses.

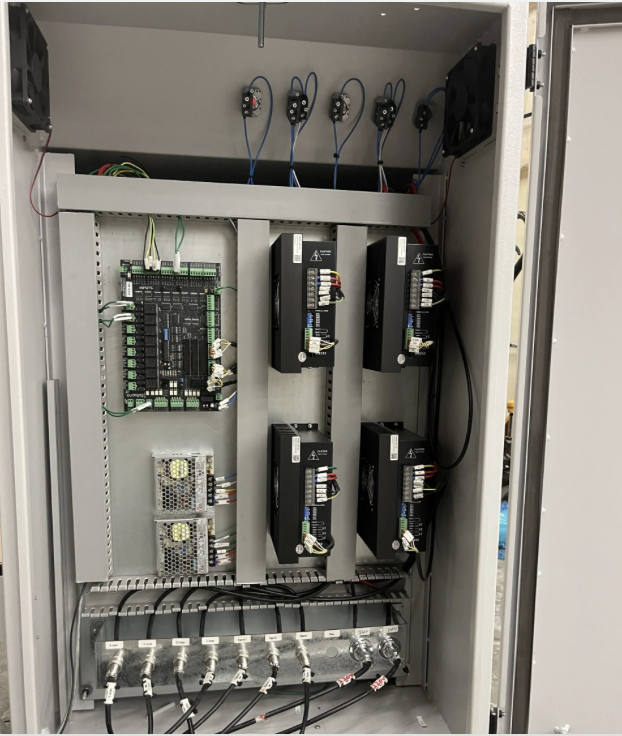

Electronics All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required the program.
Options/Add-Ons Crosshair Generator The Phoenix Plasma crosshair generator allows machine operators to quickly and accurately locate the origin of the start position of the machine. The dual laser system projects laser lines along the X and Y axis, visually allowing the operator to align the center of the nozzle to the intersection (0,0) of the material.
Hypertherm Cartridges Hypertherm 105, 85 and 65 available with pack of 5 ohmic rings. Mechanized cartridges provide optimal production performance when cutting. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.
Fourth Axis Rotary Table The Phoenix plasma 4th axis rotary table assembly feature true 4-axis control technology which provides smooth precise indexing and or 4-axis cutting. This add an additional rotary axis to your indexing table allows for greater precision and versatility. The rotary function of 4 axis indexing tables is a great tool to manufacture cylindrical parts.
The Phoenix Series CNC Plasma Cutter delivers precision, versatility, and reliability for a wide range of plasma cutting applications, including metal fabrication, steel plate processing, and more—supported by responsive service and long-term dependability.
