Ohm’s Law + DC Circuits
CL-1919-05_053044

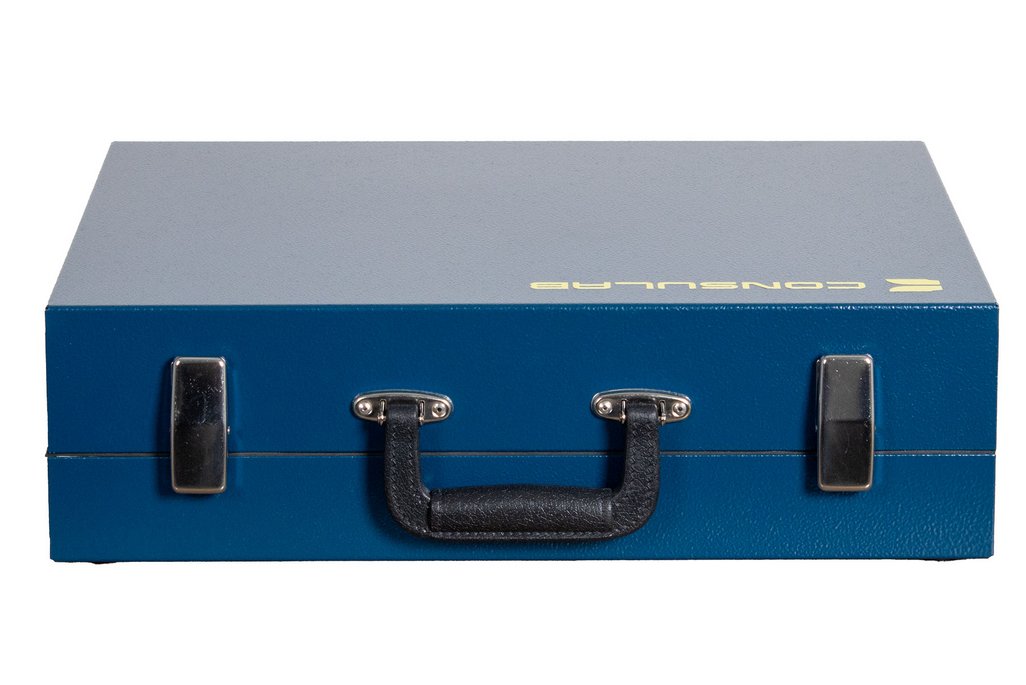

The CL-1919-05 Ohm’s Law & DC Circuits trainer is a self-contained educational learning system designed to assist instructors in teaching students basic electrical and electronic theory. It is designed to help teach Ohm’s Law basics as well as demonstrating common electrical system components and circuit operation. A student project manual provides circuit construction and learning assignments designed to help students learn. The trainer is protected with a removable metal cover. The case features a carrying handle and has internal storage for jumper test leads and power cord.
Now available as a Classroom Package.
From Our Partners at ConsuLab
DESCRIPTION
Educational Advantages
- Self-contained package with built-in power supply
- Student project manual provides learning assignments for circuit construction and understanding
- Built in DMM for electrical measurements and diagnosis
- Can be used to assist the instruction of operational theory of electrical/electronic circuits and components
- Meets many of the Electrical/Electronic tasks for NATEF, Alberta and Red Seal curriculums
Main Features:
- Requires 120VAC to operate, outputs 2-14VDC (4A max)
- Panel mounted Digital Readout showing trainer DC voltage
- Built in DMM (Digital Multi-meter) with accessible external meter fuse
- Meter is powered by the trainers power supply. (no batteries)
- Adjustable Pulse Width Modulation control (0-100%)(2KHz)
- The following electrical components are included:
○ 2- #194 Light bulbs (removable)
○ 1- #3157 Light bulb (removable)
○ 1- LED lamp (removable)
○ 1- Buzzer
○ 2- Transistors (NPN and PNP)
○ 1- Diode
○ 1- Motor
○ 1- ISO 5-pin relay
○ 1- Electronic flasher
○ 1- 75ohm Potentiometer
○ 5- Resistors (1-2Ω, 2-20Ω, 1-40Ω, 1-100Ω)
○ 1- Fuse (removable)
○ 1- SPST Toggle switch
○ 1- N.O. Push button switch - Each component has circuit connection receptacles for jumper wire hookup
- Included are test jumper wires, power cord and meter test leads
- A comprehensive users manual that covers basic electricity, Ohm’s Law and circuit construction student activity assignments is included
