The first step to securing funding is building a plan for your program. Let us help you get started.

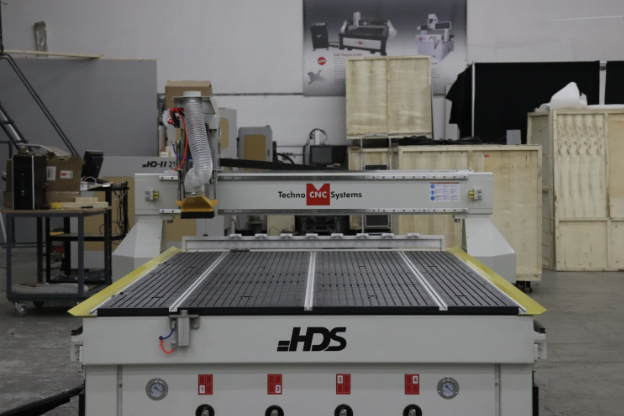

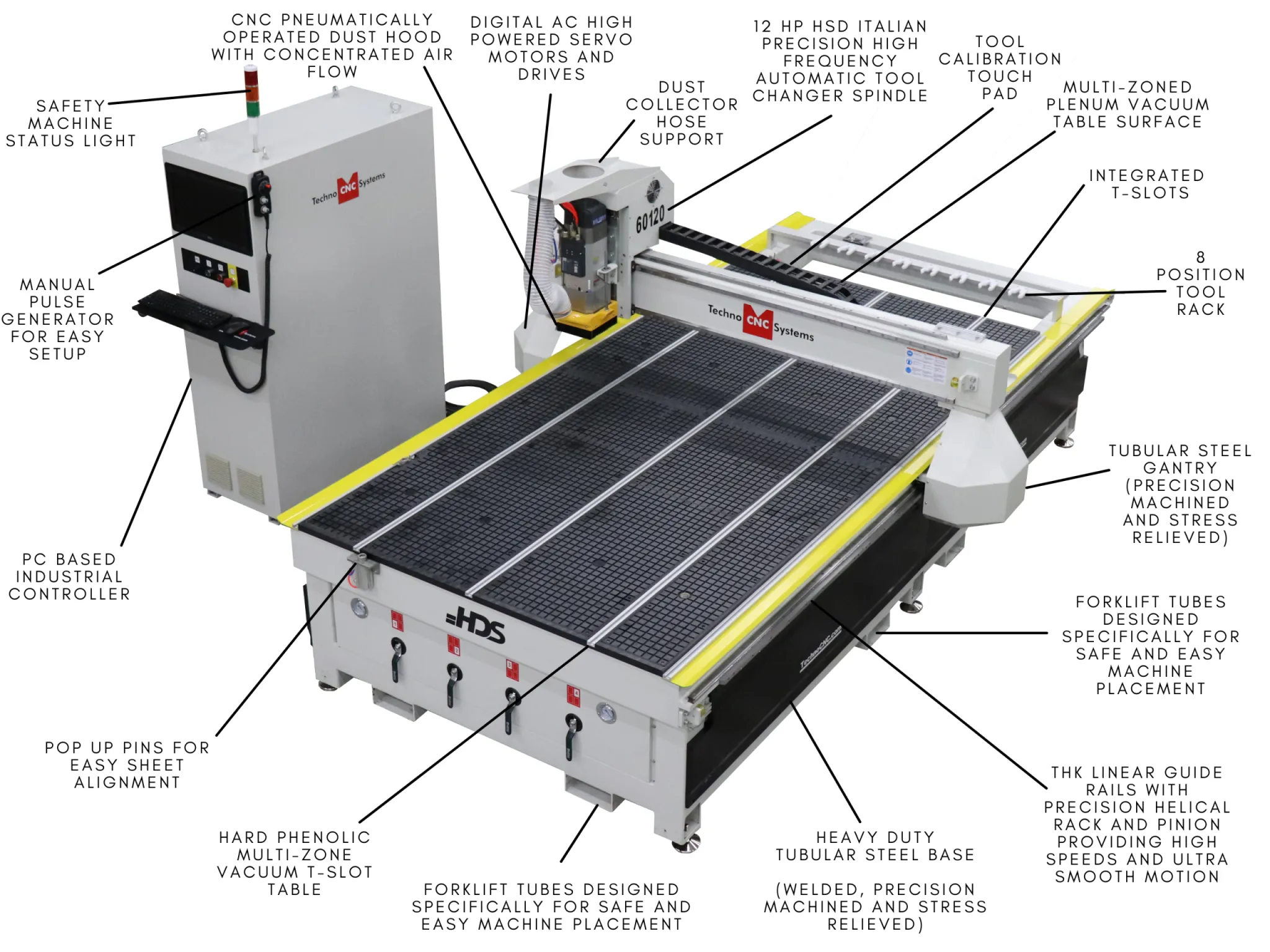

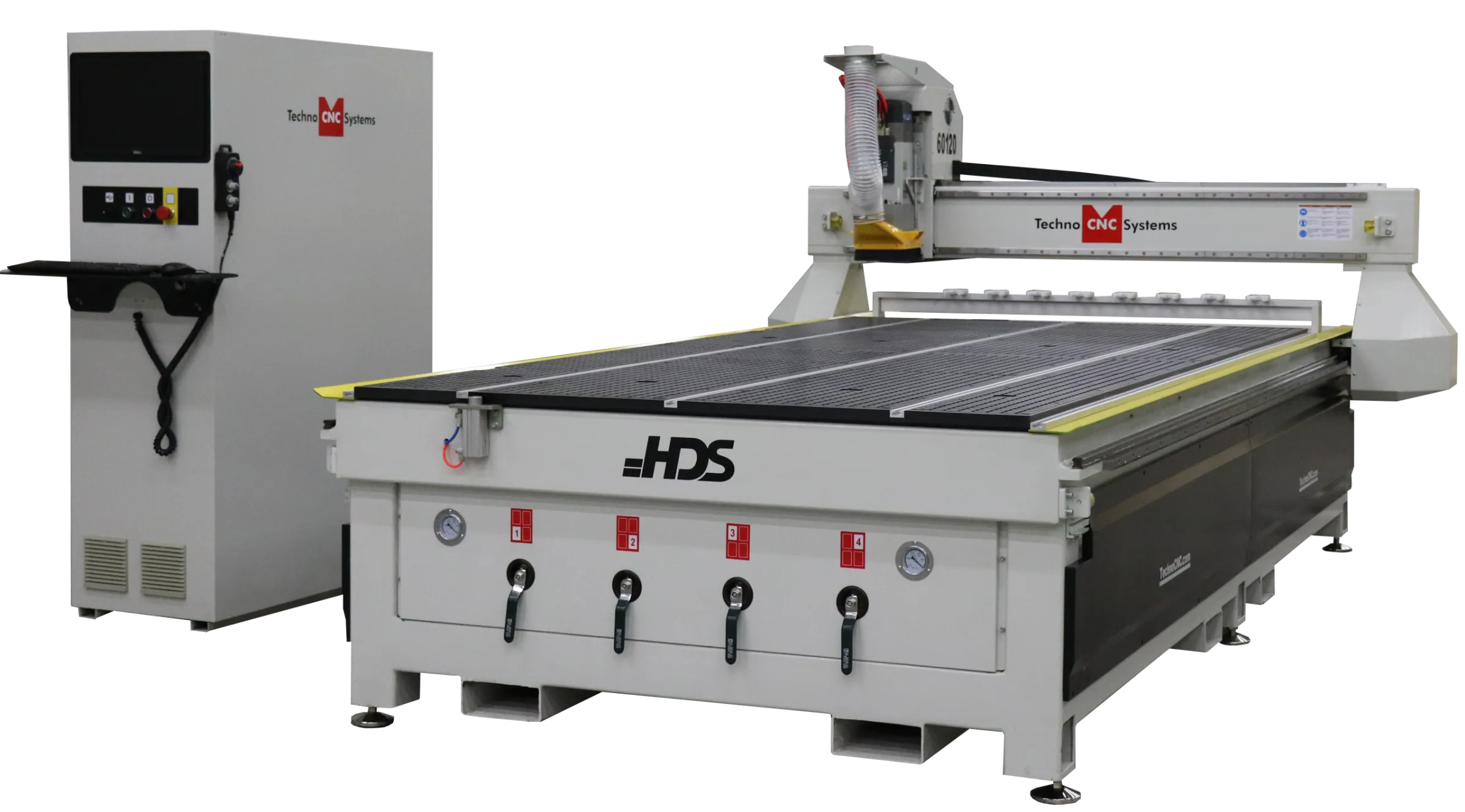

The HDS Series CNC Router is constructed entirely of steel, providing a rigid foundation required for ultra-smooth routing results. The HDS Series CNC Router includes a 12 HP HSD automatic tool changer spindle with an 8-position tool rack, and comes standard with a pneumatically operated dust collection hood that concentrates air flow at the cutter, providing optimal dust collection performance. The multi-zone vacuum T-slot table is constructed from very hard Phenolic—an extremely stable material that holds tight tolerances for precision cutting. This CNC machine is connected to a 10HP rotary vane vacuum pump (twin pack optional), for quiet operation. For easy sheet alignment, (3) pop-up pins are included on the HDS Series, and are precisely placed to handle and align various size materials. The HDS Series CNC Router is powered by brushless AC Servo digital motors and drives, and is powered by an easy-to-use and learn Osai PC based industrial controller.
Featured List
Steel Base Fabricated from heavy-duty tubular steel; welded, precision machined, and stress-relieved for a true, steady foundation over the machine’s operational life.

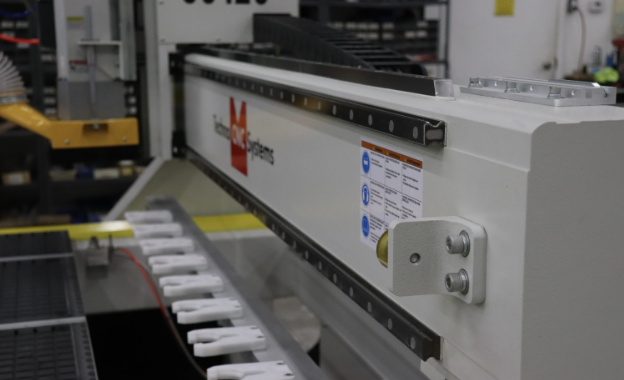

Gantry Constructed from tubular steel with reinforcing ribs welded along the column, creating a firm beam assembly for smooth precision cutting through quality engineering.
Spindle Standard 12 HP HSD high-frequency automatic tool changer; maintenance-free, uses ER collets and ISO 30 tool holders, programmable speeds (6000–24,000 RPM), includes pneumatically retractable vacuum hood.

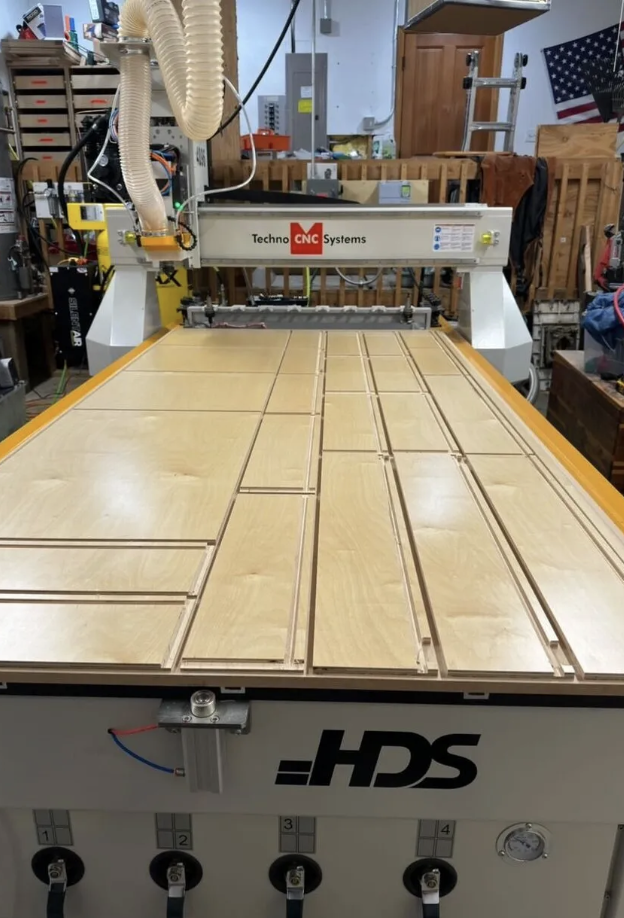

Vacuum Table Multi-zoned vacuum plenum surface (4 zones standard) for switching between full-sheet and smaller-part processing; zones controlled via front valves; gasketing routable for various material sizes/styles.

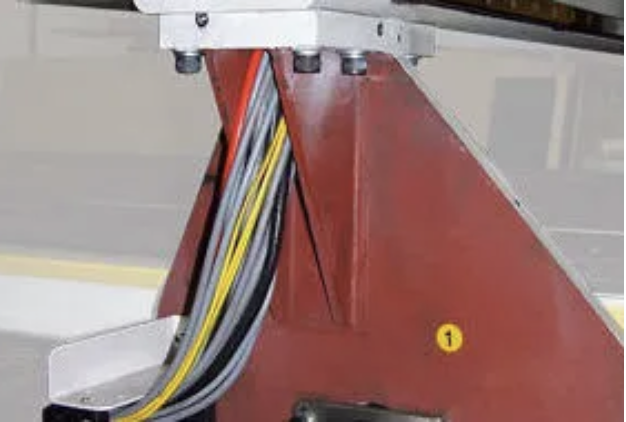

Gantry Uprights Cast iron with heavy-duty gussets; machined to house drive assemblies (motors, bearings, wiring harnesses).

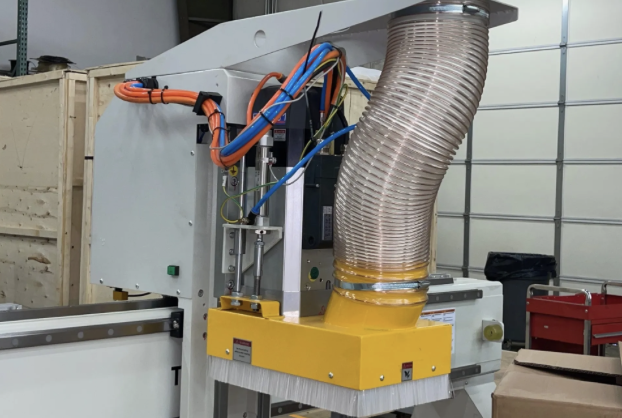

Vacuum Shroud Pneumatically operated hood with concentrated airflow at the spindle for efficient dust and debris cleanup during routing.

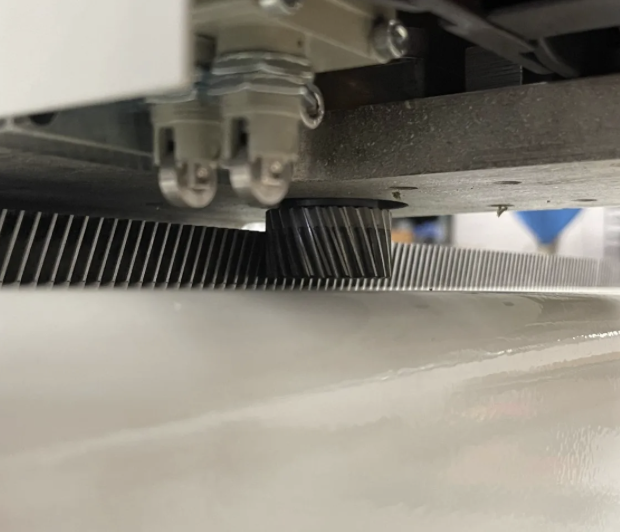

Drive Train Assembly Precision helical gear racks on X/Y axes; inverted rack mounting prevents dust buildup for smooth motion and reliability; precision gearbox directly coupled to servo motor and pinion (eliminates belt stretch for high-speed accuracy); superior to ball screws in large-format machines for speed, accuracy, and longevity.
Tool Holder Clamp Equipped with clamp fixture for safer, easier insertion and tightening of CNC router bits.

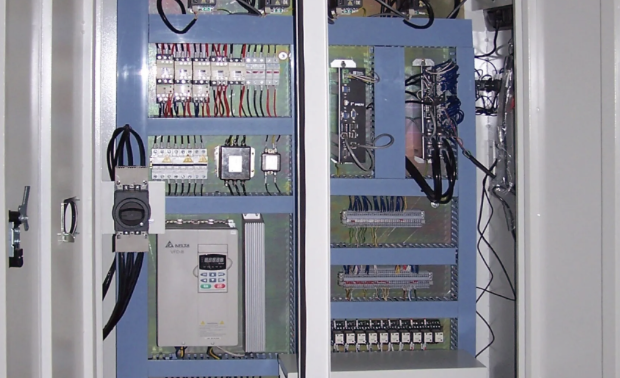

Electronics Housed in doubled-doored NEMA 4 enclosure; tagged wiring for easy access/service.

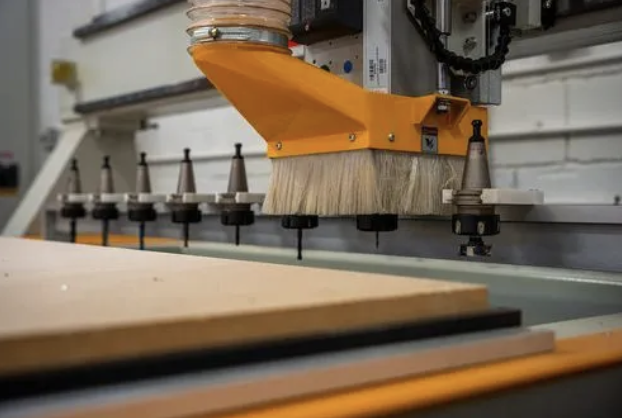

Tooling 8-position tool rack in rear for easy loading/unloading from either side.

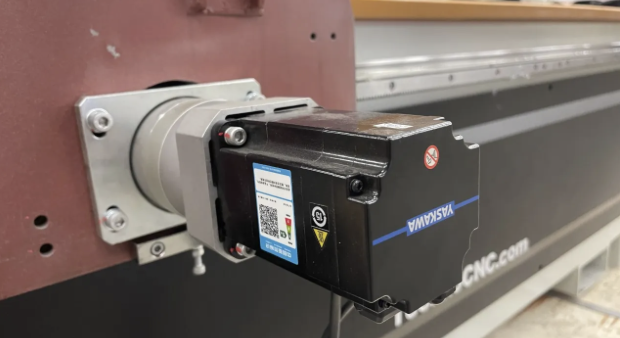

Drive Motors AC servo motors powered by Yaskawa drives; maintenance-free to reduce downtime.

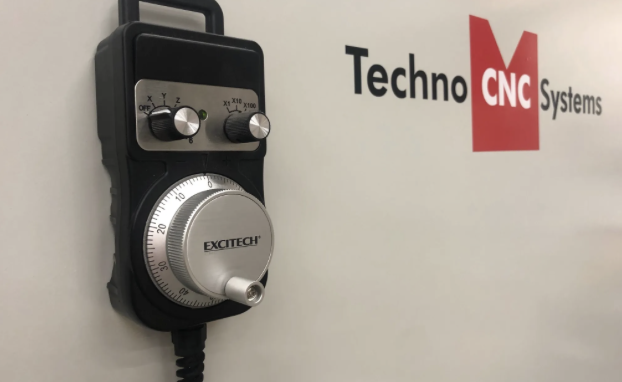

Manual Pulse Generator (MPG) Hand-held for easy machine movement during setup.

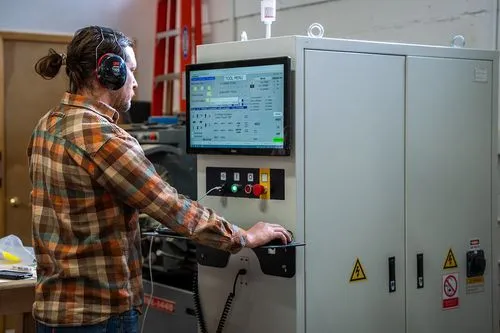

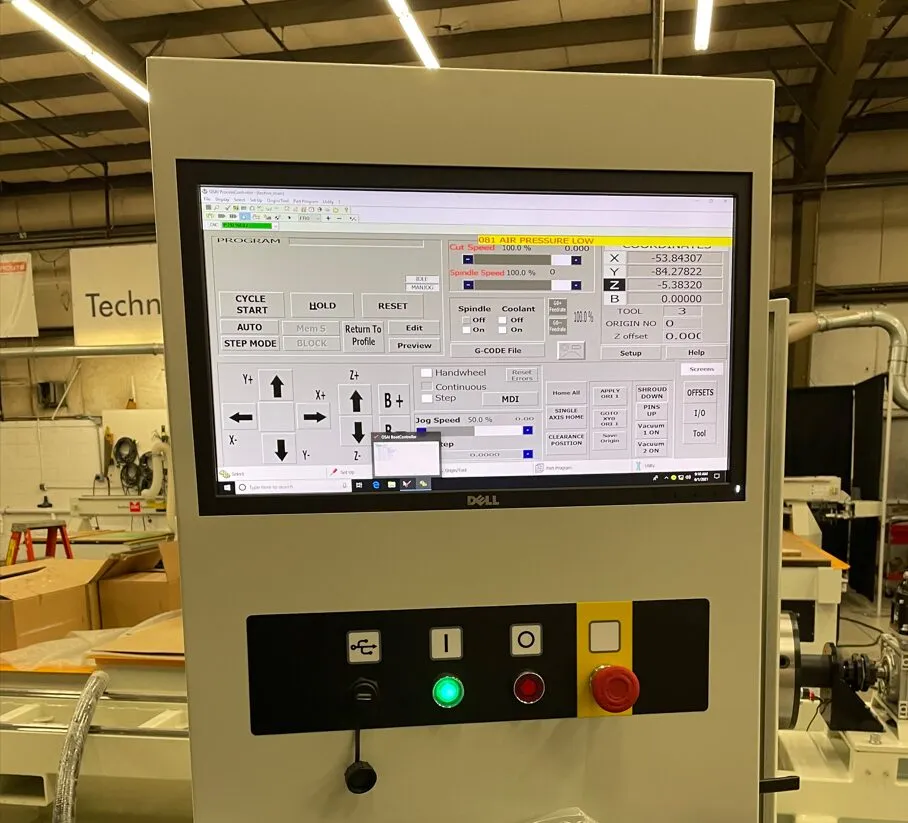

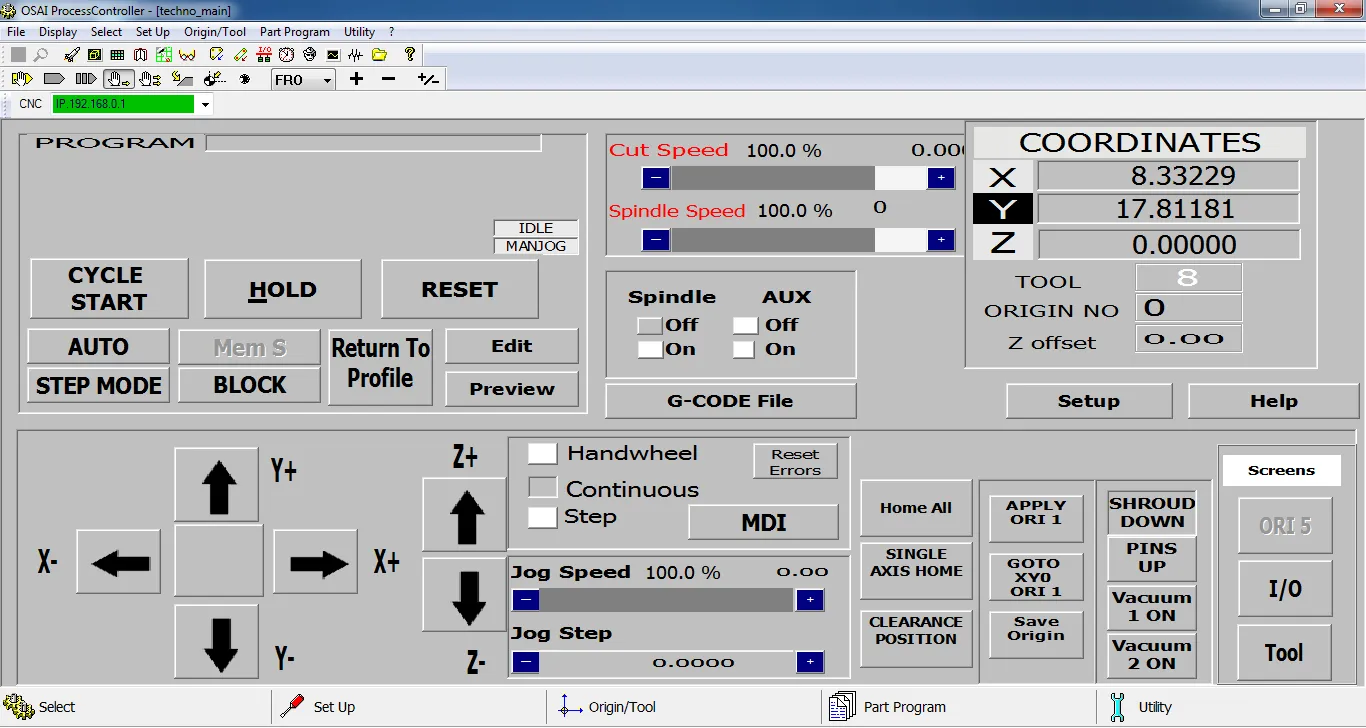

Controller Interface Windows-based G-Code Osai Interface; open architecture accepts G-Code from any CAD/CAM software; supports inch/metric units; highly customizable; intuitive for quick learning (most users operational in <1 day); comprehensive controls on main page despite ease of use.
The HDS Series (including Venture Plus model) uses an Industrial Osai open-series PC-based CNC controller with multi-platform software architecture. It features a real-time multi-task OS for accurate, safe axis control via proprietary algorithms, plus a standard Windows interface for user-friendliness. It combines PC connectivity/flexibility with CNC power, durability, reliability, and serviceability.
Key Controller Features
Machine Options

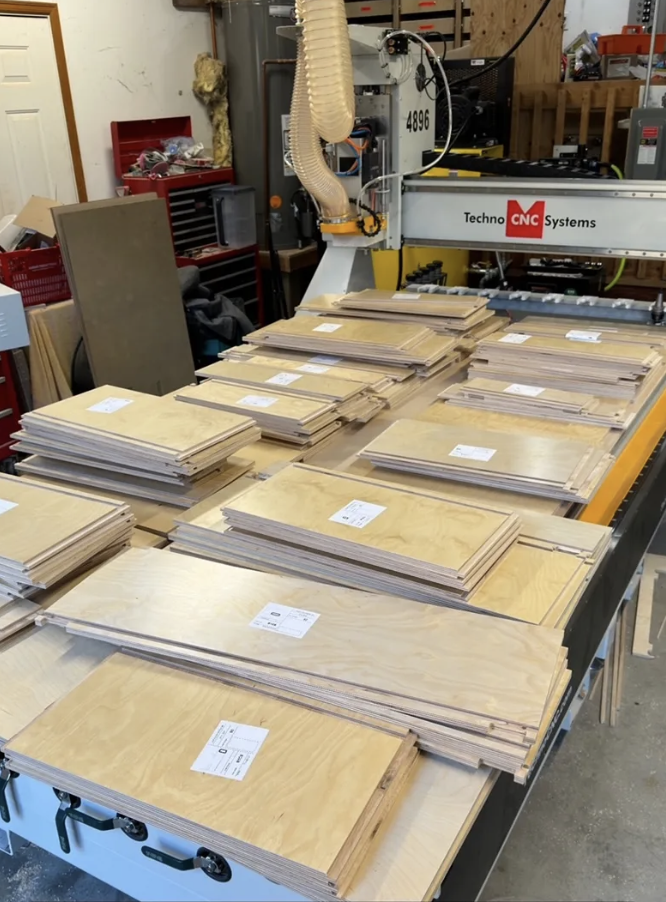

The HDS Series CNC Router delivers precision, versatility, and reliability for a wide range of applications, including woodworking, plastics, aluminum, foam, acrylic, and more—supported by responsive service and long-term dependability as highlighted by satisfied customers across industries.
