EMCOMAT-17 D Conventional Lathe

EMCOMAT 17D / 20D systems are popular because they are easy to operate, ergonomic and come equipped with a high-tech 3-axis digital display, 999 tool positions, 999 contour points, constant cutting speed, and infinitely variable control.

Description

EQUIPMENT

Main spindle DIN55029 Tailstock (can be set off-center)Single tool holder (clamping claw)Belt drive for feed gearElectric chuck guard with limit switchOptional equipment: e.g. coolant device, slideable chip protection doors etc.

TECHNICAL DATA

WORK AREA
Travel in X/Y/Z 220 / – / 710 mm
Distance between centers 700 mm
Distance above centers 170 mm
MAIN SPINDLE
Max. speed 3000 rpm

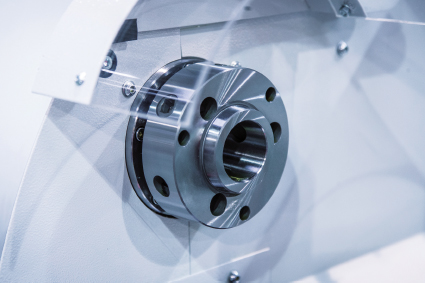

Spindle nose DIN 55029
Max. drive power 5.3 kW
TAILSTOCK
Quill diameter 50 mm
Inner cone MT3
Quill travel 120 mm
GENERAL DATA
Dimensions (LxWxH) 1650 x 1060 x 1635 mm
Machine weight 755 kg

HIGHLIGHTS

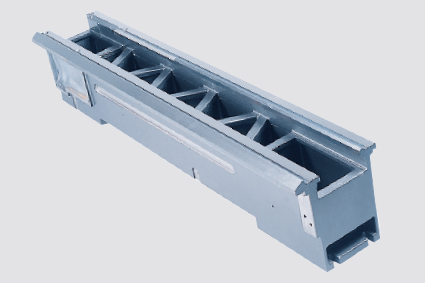

  • Diagonally ribbed, induction-hardened machine bed
  • High work speed
  • Tailstock can be set off-center
  • Digital display (EMCOMAT 17D) for X, Z and Zo
  • Main spindle with 50 mm spindle bore

Download Specs

Brochure - EMCOMAT-17-D
EMCOMAT-17-D.pdf
