If you need an all-in-one training platform for hands-on PLC Training for your students that covers the fundamentals of programmable controls including connection, communications and project development required for the control of automated processes, the PCT-200 from SMC delivers.

SMC’s Hands-on PLC Training System is designed to provide a versatile and expandable solution for hands-on activities in the areas of automation technologies, including programmable controllers, digital I/O, analog I/O and human machine interfaces.

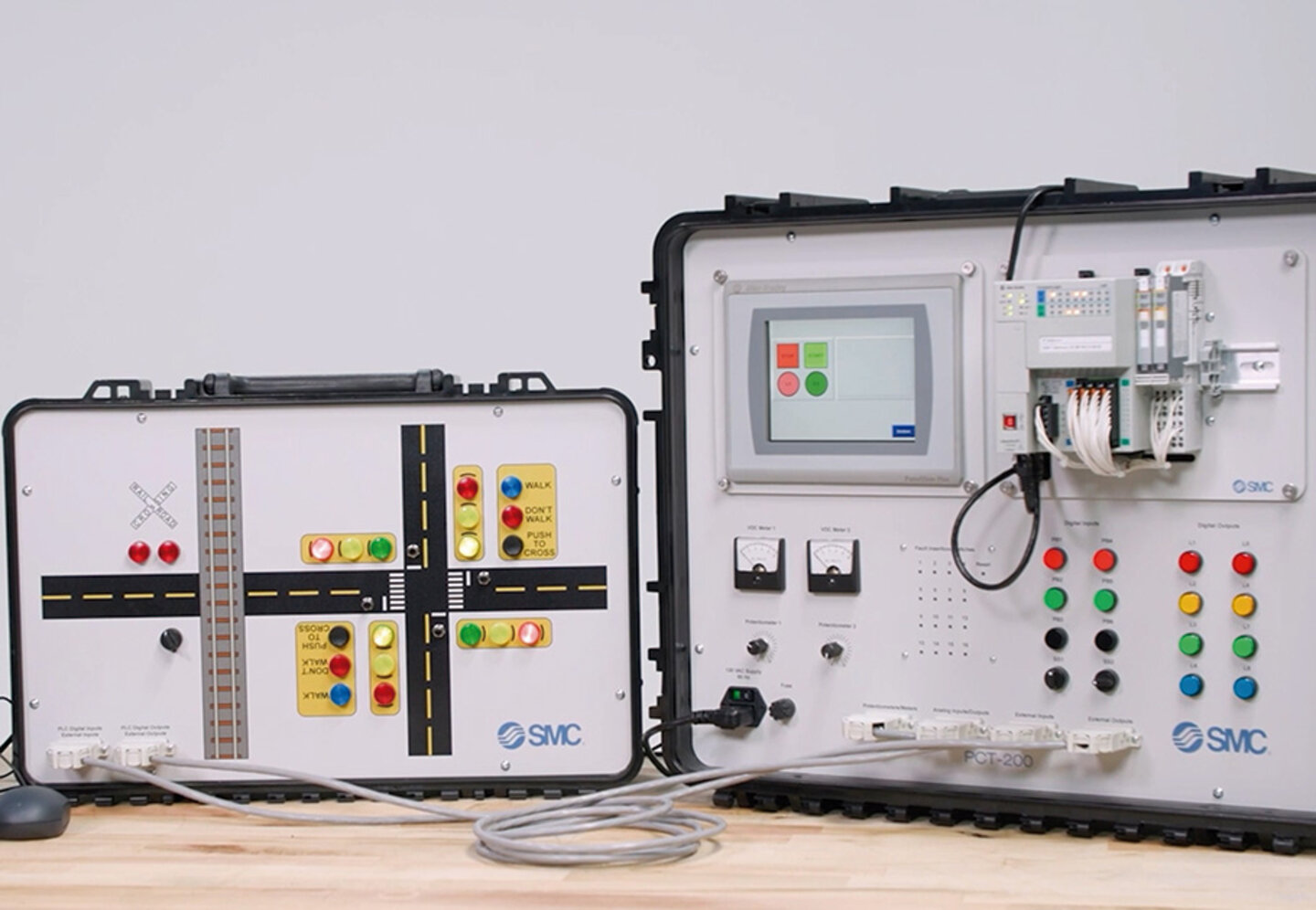

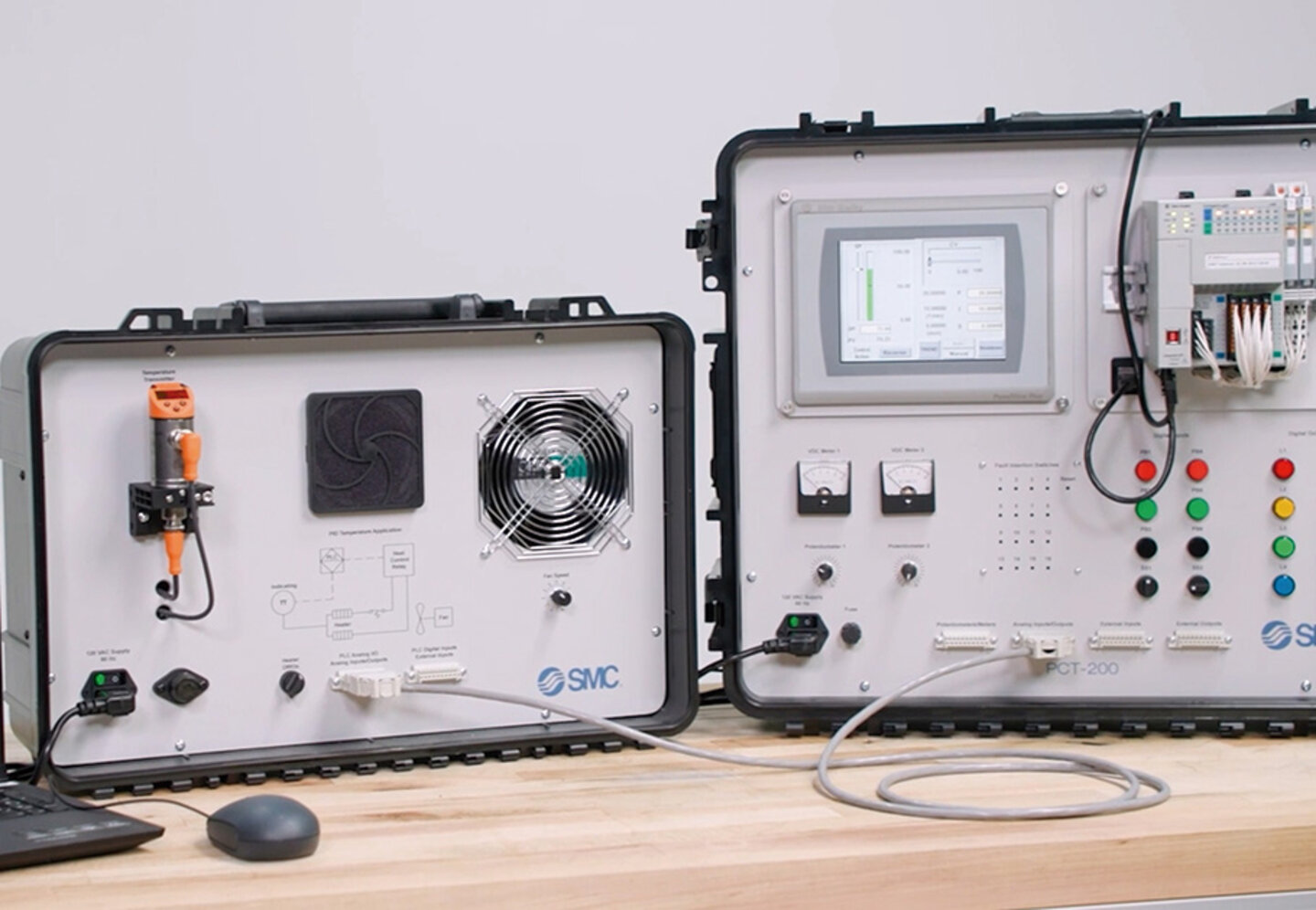

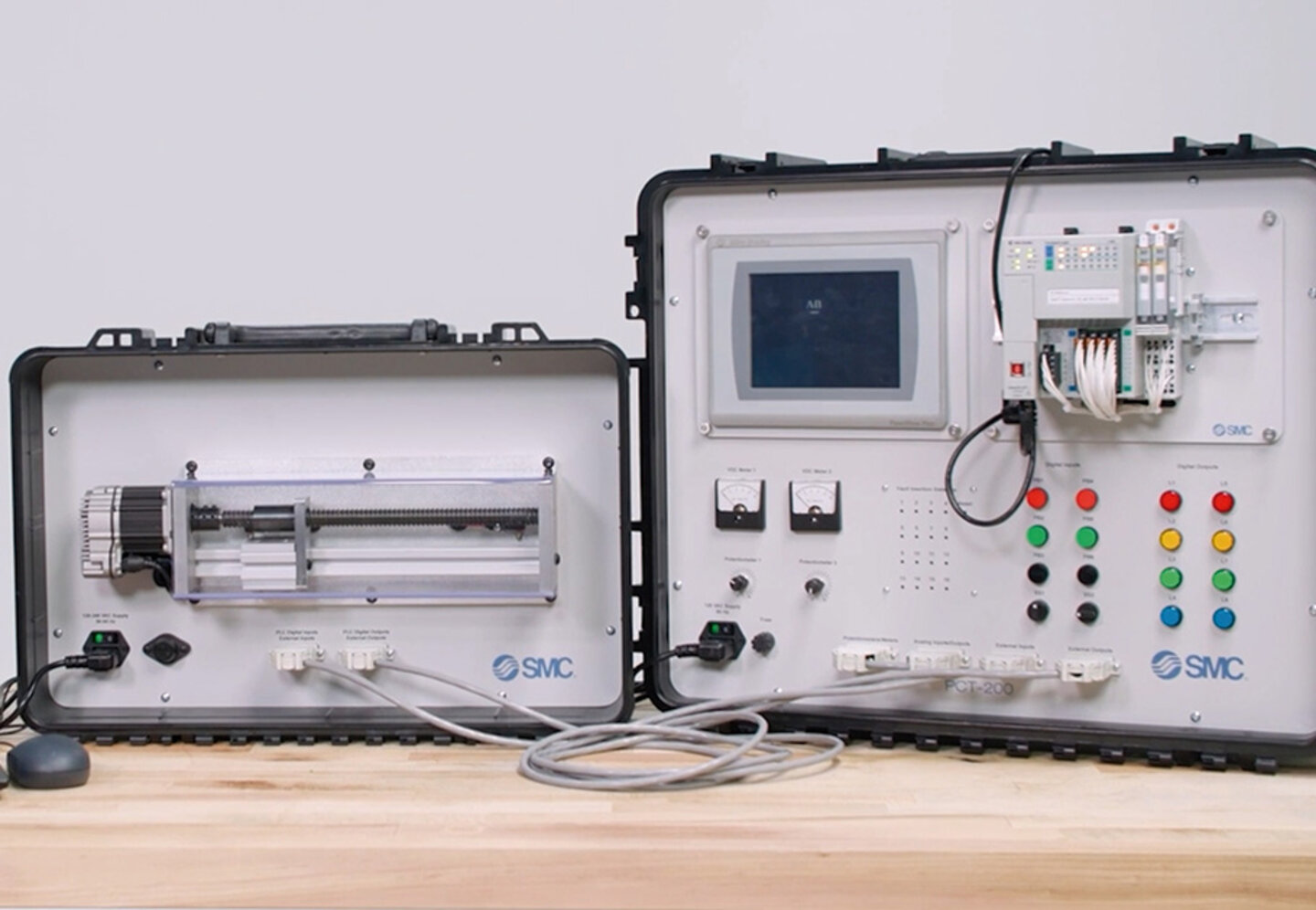

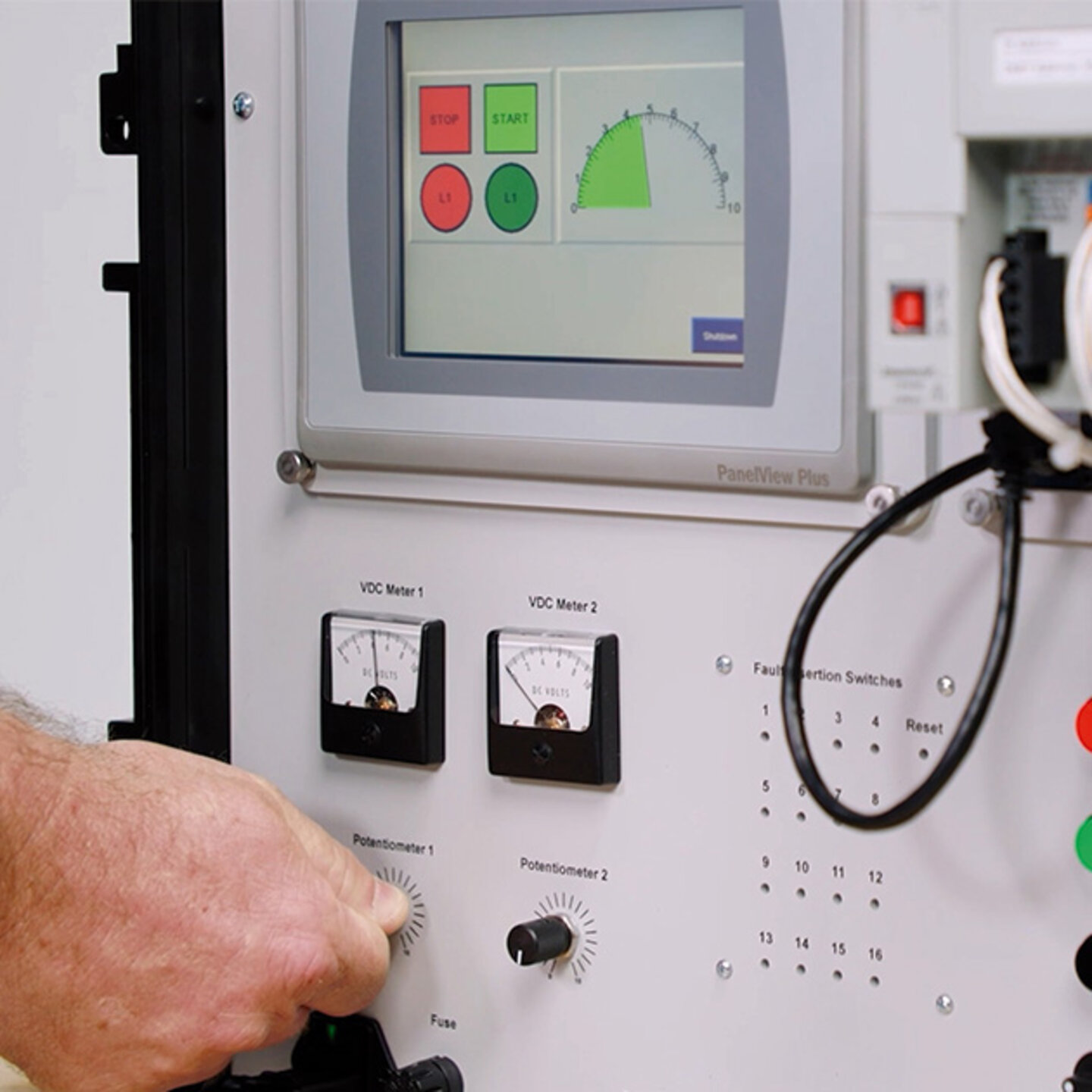

The PLC Training System is provided in a hard-shell suitcase with integrated casters and handle and includes both industrial PLC and HMI. The unit includes 2 external connection blocks that allow any external I/O devices to be connected directly to the controller.

Topic Coverage and Hands-On Curriculum

• Introduction to PLCs
• Controller Communication
• PLC Project Development
• Monitoring Input and Output Data
• PLC Addressing
• Relay Type, Latching, Timer, Counter Instruction
• Math and Data Manipulation Instructions
• Program Control Instructions
• Analog Devices
• Introduction to Human Machine Interface
• HMI Communications
• HMI Project Development
• Screen Creation and Navigation
• Text, Button and Switch Objects
