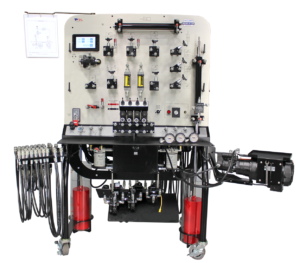

Pneumatic Troubleshooting Training System

PNEU-TS-201

Take your Pneumatics training to the next level with our new, hands-on Pneumatic Troubleshooting Training System. The PNEU-TS-201 Training system provides participants with hardware allowing for hands-on activities in troubleshooting of industrial pneumatic applications. This system gives access to various electrical and pneumatic components which are connected to create six unique applications. The operator control section allows for direct manual and automatic control of each application. Lastly the system includes fault insertion capability to assist in development of a systematic approach to troubleshooting. The Pneumatic Troubleshooting Training System is the most capable and comprehensive pneumatics training aid of its kind. Complete with Pick & Place, Loading Actuator, Rotary Manipulator, Free Wheeling Motor/Brake, Air Over Oil, and Operator Control Station.

From Our Partners at Innotek

DESCRIPTION

The PNEU-TS-201 Training system provides participants with hardware allowing for hands-on activities in troubleshooting of industrial pneumatic applications. This system gives access to various electrical and pneumatic components which are connected to create six unique applications. The operator control section allows for direct manual and automatic control of each application. Lastly the system includes fault insertion capability to assist in development of a systematic approach to troubleshooting.

The Pick and Place Manipulator Module

(1) Rod Less Air/Slide Cylinder
(1) Double Acting Guided Cylinder
(4) Actuator Position Sensors
(1) Vacuum Generator
(1) Vacuum Switch
(6) Pneumatic Test Points

The Loading Actuator Module

(1) Double Acting Cylinder
(1) Spring Load Mechanism
(2) Actuator Position Sensors
(4) Pneumatic Test Points

The Rotary Manipulator Module

(1) Double Acting Rotary Actuator
(3) Actuator Position Sensors
(4) Pneumatic Test Points

The Free-Wheeling Motor/Brake Module

(1) Bi-Directional Air Gear Motor
(1) Double Acting Clamp Actuator
(2) Actuator Position Sensors
(1) Inertial Wheel
(6) Pneumatic Test Points

The Air over Oil Application Module

(1) Pneumatic Directional Control Valve
(2) Air over Oil Reservoirs
(1) Equalization Valve
(1) Double Hydraulic Cylinder
(2) Hydraulic Flow Control Valves
(2) Part Detection Proximity Sensors
(1) Weight Load
