AB MicroLogix 1100 PLC

From Our Partners at

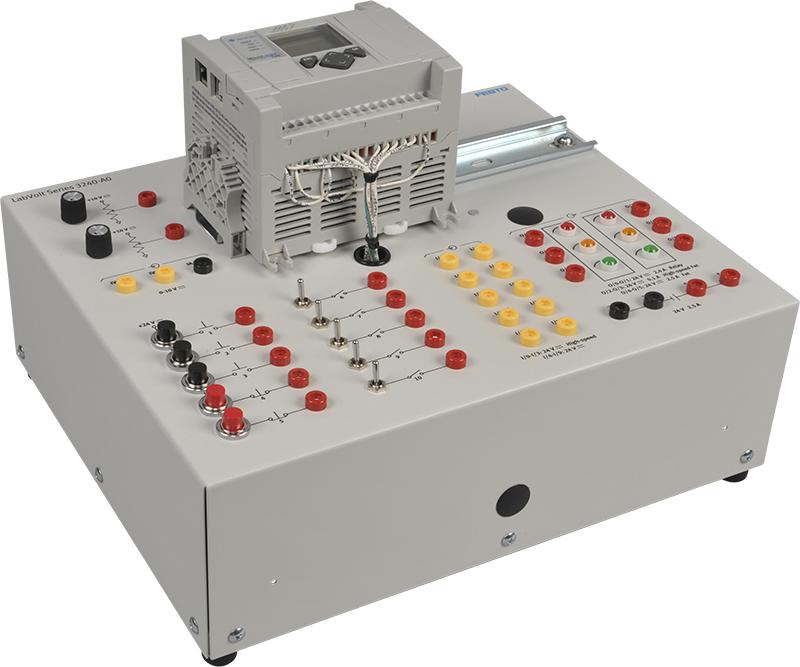

The Programmable Logic Controller (AB MicroLogix 1100) is specially designed to help students develop skills in operating, programming, and troubleshooting modern PLC-controlled systems. Driven by an Allen-Bradley® MicroLogix™ 1100 controller, the training module is fully supported by instructional material and is compatible with several didactic applications.

Features & Benefits

  • Digital and Analog I/Os
    • Ten 24 V dc digital inputs
    • Six 24 V dc digital outputs
    • Two analog inputs (0-10 V dc)
  • 24 V dc built-in power supply
  • Built-in 10/100 Mbps Ethernet/IP port for peer-to-peer messaging and programming
  • Eight fault switches
  • Online editing
  • Five push-buttons, five toggle switches, and Two 0-10 V dc outputs
  • PID Capability
  • Embedded Web server and LCD screen
  • Onboard traffic light simulator
  • Easy expansion using rackless I/O modules (Analog Expansion Module, Model 3244-A)
  • Compatibility with MicroLogix and SLC instruction set
  • Requires the RSLogix Micro programming software, Model 3245-A *
    • * RSLogix Micro Starter Lite for MicroLogix 1000 and 1100 is available for free on Allen-Bradley website (www.ab.com).
  • For programming, an Ethernet cable is included with the trainer. A serial cable, Model 3246-4, can also be ordered
  • Includes curriculum
