AV-S
The Edibon AV-S features typical engine management system sensors (mass air flow, lambda, temperature, oil pressure, and accelerator pedal position sensors) and also includes sensors from the stability system, parking system, lighting system and the safety system.

From Our Partners at

DESCRIPTION

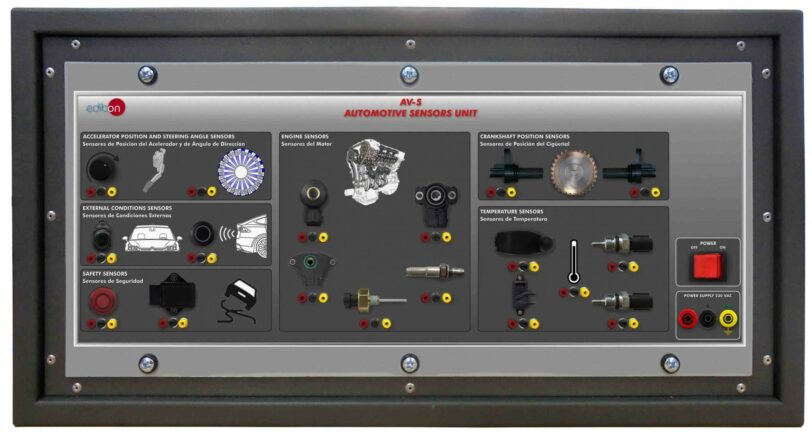

The Automotive Sensors Unit, “AV-S”, provides a practical solution to familiarize the students with the sensors used in modern automotive systems.

The sensors included in the “AV-S” are focused on the measurements required for the engine management system, being the mass air flow sensor, the lambda sensor, different temperature sensor, oil pressure sensor, accelerator pedal position sensor, etc. but there are also other sensors for the stability system, the parking system, the lighting system and the safety system.

The “AV-S” unit is mounted on a metallic plate that can be used alone or assembled to the EDIBON workbenches.

All sensor circuits included in the unit are isolated to understand the function of the circuits separately. All connector points of the sensors circuits are accessible through 2 mm standard lab sockets.

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Communication with CAN network protocol.
  2. Communication with digital or analog signals.
  3. Use of the inductive crankshaft sensor to measure the position (phase) of the crank.
  4. Use of the Hall Effect camshaft sensor to measure the rpm of the engine.
  5. Manifold absolute pressure sensor signal.
  6. Air quality sensor signal.
  7. Function of the inertia switch in the safety system.
  8. Understanding the Lambda sensor reading.
  9. Accelerator pedal position sensor signal.
  10. Calibration of an accelerator pedal position sensor signal.
  11. Understanding the knock sensor reading.
  12. Mass air flow sensor signal.
  13. Calibration of a throttle-valve potentiometer.
  14. Function of the coolant level switch.
  15. Differences between the intake air temperature sensor, refrigerant temperature sensor and outdoor temperature sensor.
  16. Function of the light intensity sensor signal.
  17. Calibration of an ultrasonic proximity sensor.
  18. Function of the lateral acceleration sensor signal in the electronic stability program, ESP.
  19. Understanding the steering angle sensor reading.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Several other exercises can be done and designed by the user.
